Home >> Mercedes Benz >> 1998 >> CL 500 (140.070) V8-5.0L (119.980) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Oil Filter, Engine

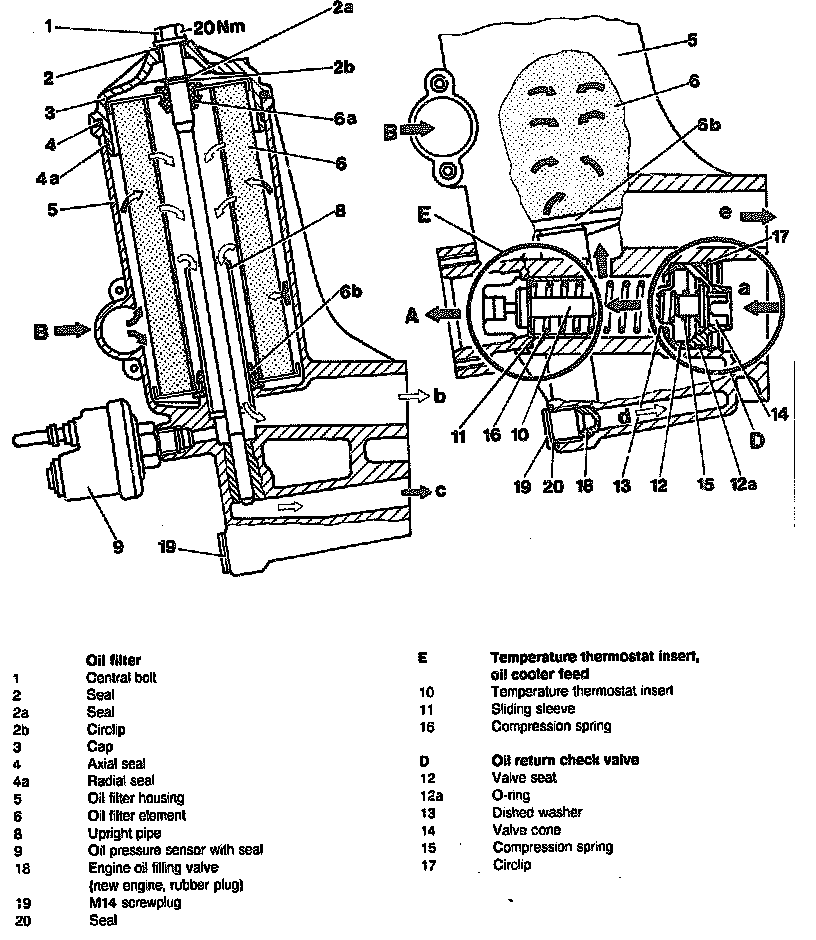

Oil Filter, Engine



Part 1 Of 2:





Part 2 Of 2:
