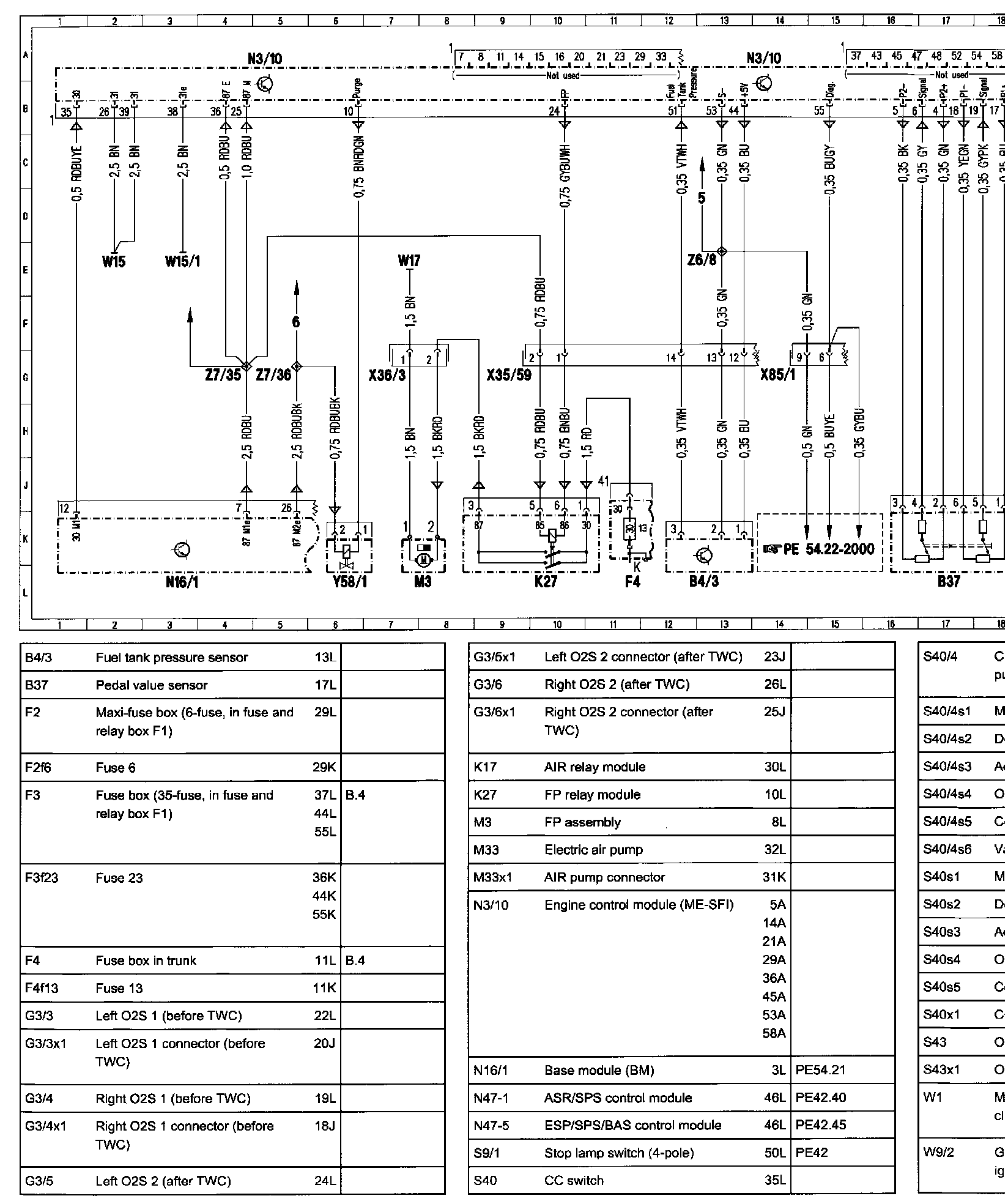

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XN
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XN
:
