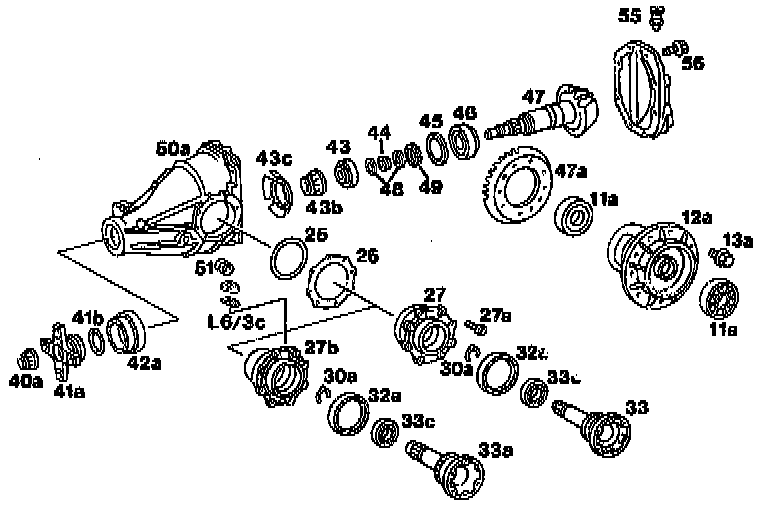

Exploded Views

LEGEND
- Rear axle center piece (50)
- Rear axle end cover (54)
- Breather (65)
- Circlips (30a)
- Connecting flanges (33 and 33a}
- Side bearing covers (27 and 27b]
- Differential housing (12a)
- O-rings (25)
- Shims (26)
- Radial oil seals (32a)
- Tapered roller bearing inner races (11a)
- Tapered roller bearing outer races (11)
- Crown wheel (47a)
- Twelve-point collared nut (40a)
- Propeller flange (41a)
- O-ring (41b)
- Radial oil seal (42a)
- Oil slinger (43c)
- Twelve-point collared nut (43b)
- Bevel drive pinion (47)
- Tapered roller bearing inner race (43)
- Tapered roller bearing outer races (43 and 46)
- Spacer sleeve (44) with contact washers (48)
- BS rotor (49)
- Tapered roller bearing inner race (46)
- Rear axle center piece with ASR
Shim (L6/3c) for speed sensor
