Electronic Noise Suppressor: Service and Repair

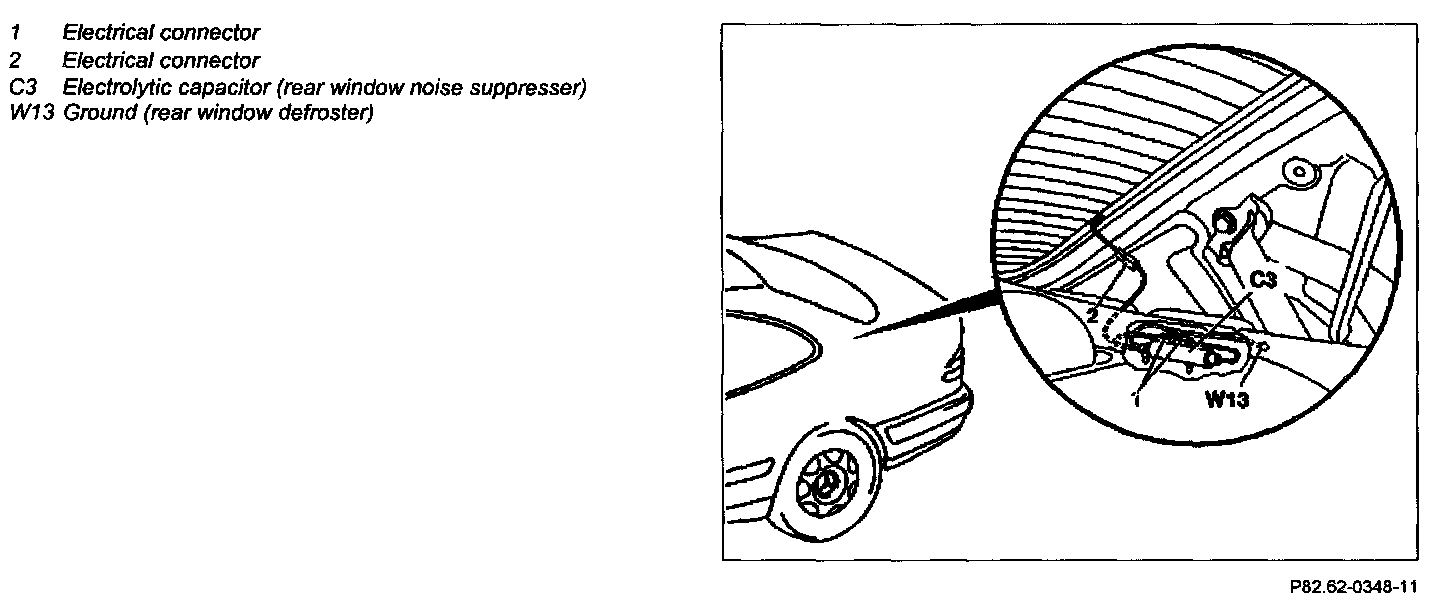

Removing And Installing Rear Window Noise Suppression Capacitor







1 Remove paneling on C-pillar
2 Disconnect electrical connectors (1, 2)

NOTE: The electrolytic capacitor (C3) is located in the cutout below the rear shelf, route wire for electrical connector (2) up to capacitor

3 Disconnect lead from ground (rear window defroster) (W13)
4 Reinstall in opposite order
