A/T - Repair/Replacement Guidelines

Date: May 1998

Order No.: S-SI-MBNA-27/32

Supersedes: -

Group: 27

SUBJECT:
ALL MODELS WITH AUTOMATIC TRANSMISSION 722.6
GUIDELINE FOR DETERMINING AUTOMATIC TRANSMISSION REPAIR/REPLACEMENT

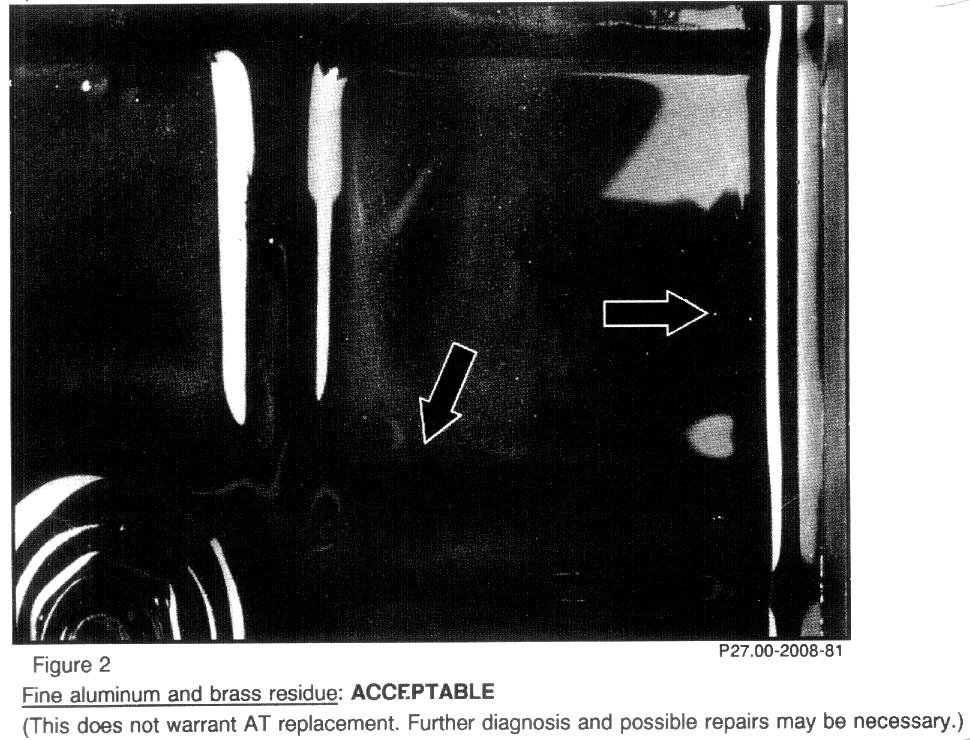

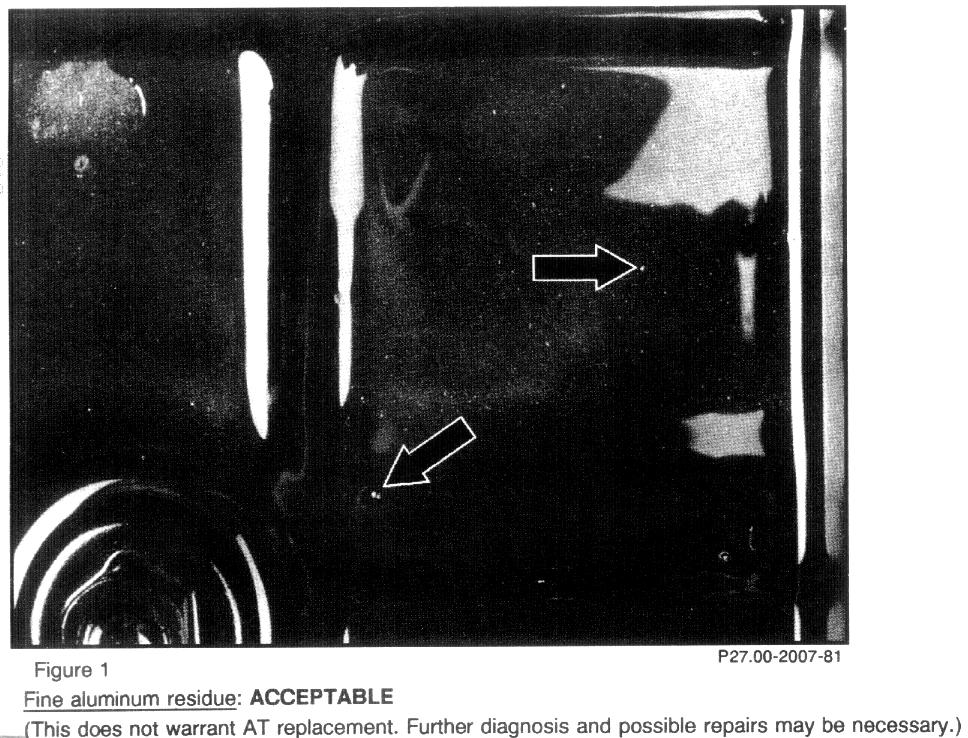

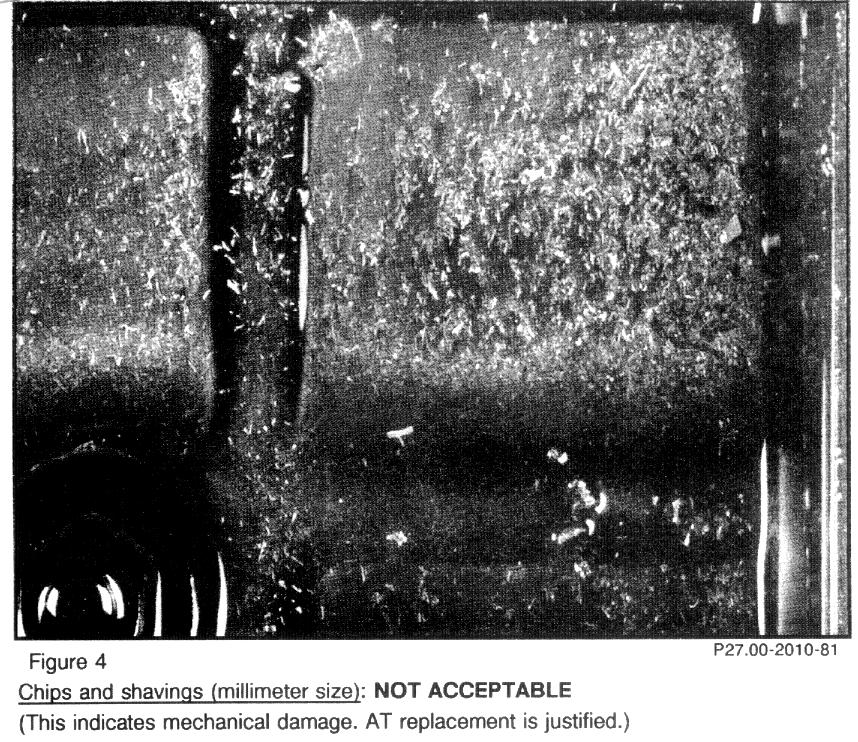

This bulletin serves as a guideline for determining whether to repair or replace an automatic transmission (type 722.6) based on residue found in the AT fluid. Figures 1 through 4 are examples of various levels of residue that might be found at the bottom of the AT fluid pan, and their limits of acceptability. A certain level of fine aluminum, or fine aluminum with brass, residue at the bottom of the fluid pan is normal and does not warrant AT replacement. Further diagnosis and repairs may be necessary in such cases. If unsure, consult your Regional Technical Coordinator.
