Frame - Dedicated Fixture Set
Date: July 1998Order No.: P-SI-MBNA-58/75A
Supersedes: S-SI-MBNA-58/75, February 1994
Group: 58, 60
Revision: Additional complementary sets available for models 202 and 208
SUBJECT:
MODEL 202 AND 208
DEDICATED FIXTURE SETS AVAILABLE FROM CELETTE
A Celette fixture set, used for collision repair, is available for model 202 (Figure 1). This set is available through the Mercedes-Benz Standard Service Equipment Program, order number 7202.300.
Complementary dedicated fixture sets are available for models 208.365/465 (CLK coupe/Cabriolet).
All model 208 use complementary set 7208.309 (fixtures 97-104, Figure 2) in conjunction with existing model 202 set 7202.300.

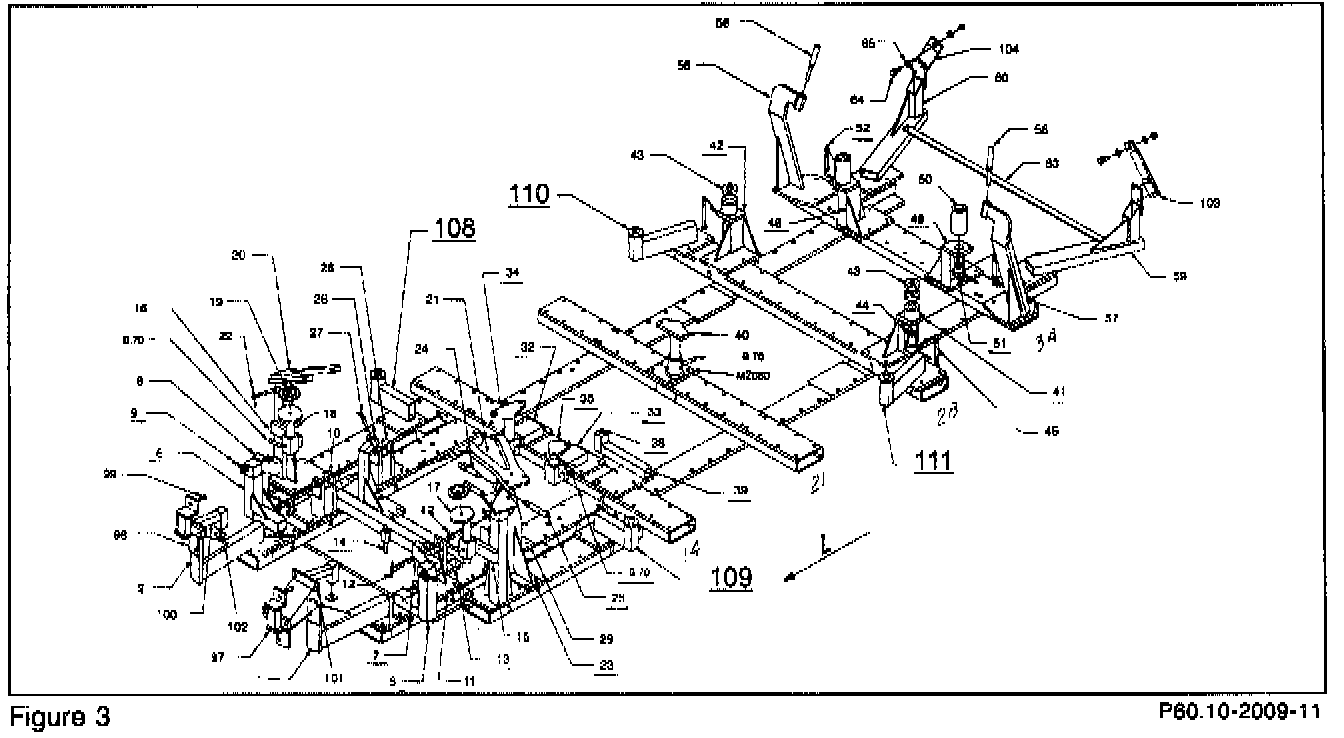

Model 208.465 (Cabriolet) uses fixture set number 7208.308 (fixtures 108-111, Figure 3) in conjunction with existing model 202 set 7202.300 and model 208 set 7208.309.

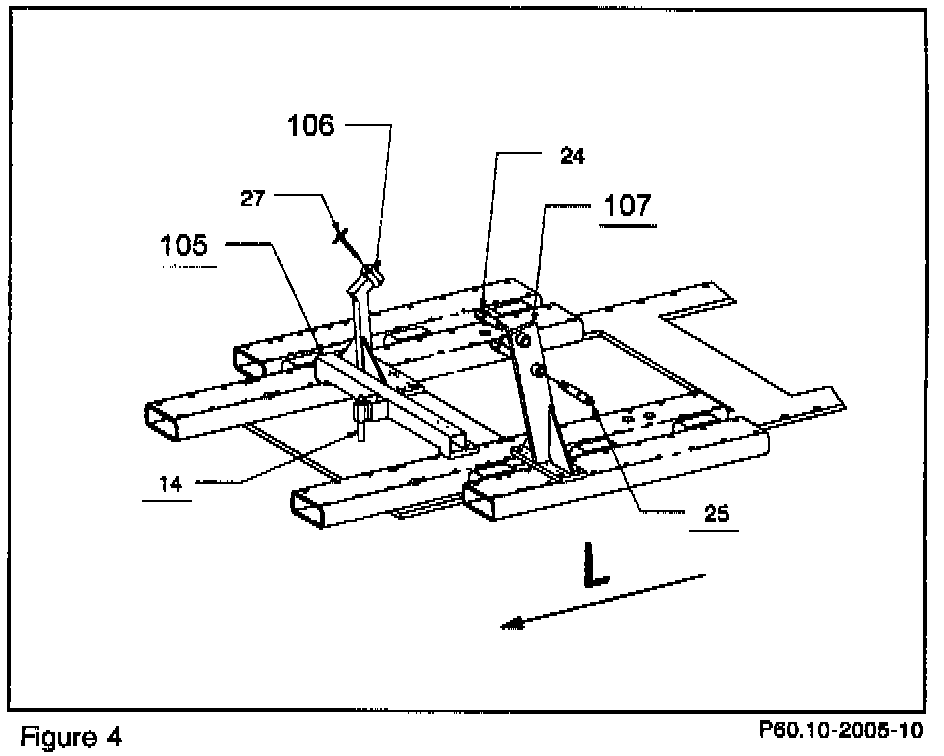

A complementary dedicated fixture set is available for models 202 and 208 with engine 112 (V6), (fixtures 105-107, Figure 4), order number 7202.309.
Model 202 with engine 112 (V6), uses complementary set 7202.309 with the existing model 202 fixture set 7202.300.
Model 208.365 with engine 112 (V6), uses complementary set 7202.309 with the existing model 202 set 7202.300 + 7208.309.
Model 208.465 (Cabriolet) with engine 112 (V6), uses complementary set 7202.309 with the existing model 202 set 7202.300 + 7208.308 + 7208.309.
These sets are now available through the Mercedes-Benz Standard Service Equipment Program.
Ordering Information:
Dealers who wish to place an order via the Mercedes-Benz Standard Service Equipment Program should contact Celette directly at:
Celette Inc.
30962 San Benito Court
Hayward, CA 94544
Tel. 1-800-CELETTE
Parts Information
Note:
The fixture set 7202.3102, which contained 2 special front crossmembers is no longer available.
