Headlamp Washer Spray Nozzle: Service and Repair

Removing And Installing Telescoping Nozzle For Headlamp Cleaning System

1 Open engine hood, move to upright position

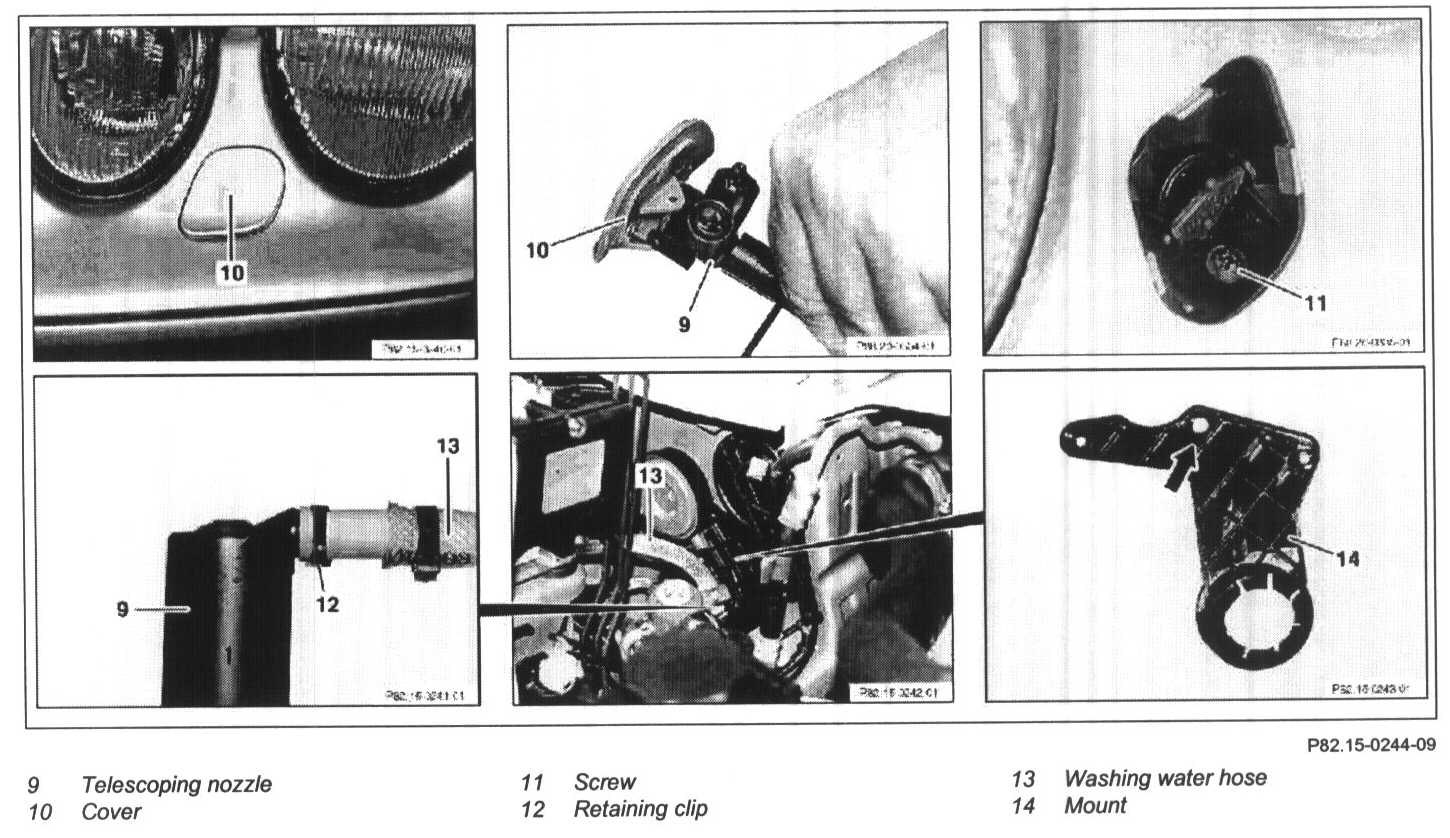

2 Pull cover (10) toward front and unclip telescoping nozzle (9)

CAUTION: Avoid damaging paint on cover and bumper

3 Unscrew screw (11)
4 Disconnect washing water hose (13) with clamp

See "Special Tools" given below.

5 Pull off retaining clip (12) and remove washing water hose (13) from telescoping nozzle (9)
6 Remove mount (14) (2 screws)

NOTE: Installation: Ensure that centering hole is properly positioned (arrow)

7 Remove telescoping nozzle (9) from bumper toward front

CAUTION: Avoid damaging paint on bumper

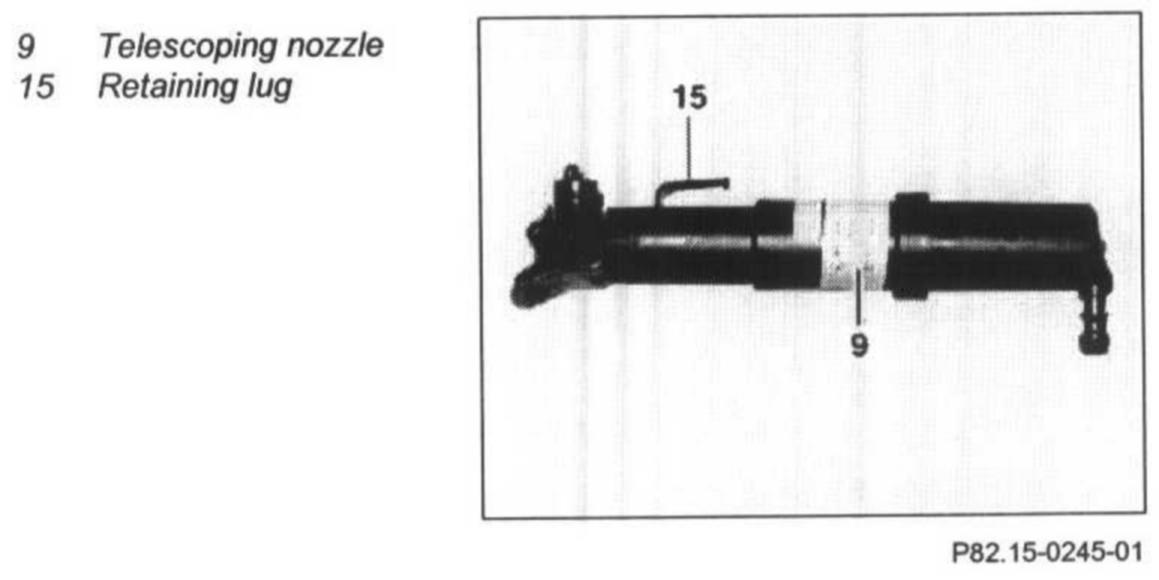

NOTE: Installation: The retaining lug (15) must be inserted into the headlamp housing

8 Reinstall in opposite order
9 Check for proper function

Special Tools

Headlamp Washer Spray Nozzle: Service and Repair

Clamp, P/N # 000 589 40 37 00:
