Blower Motor: Service and Repair

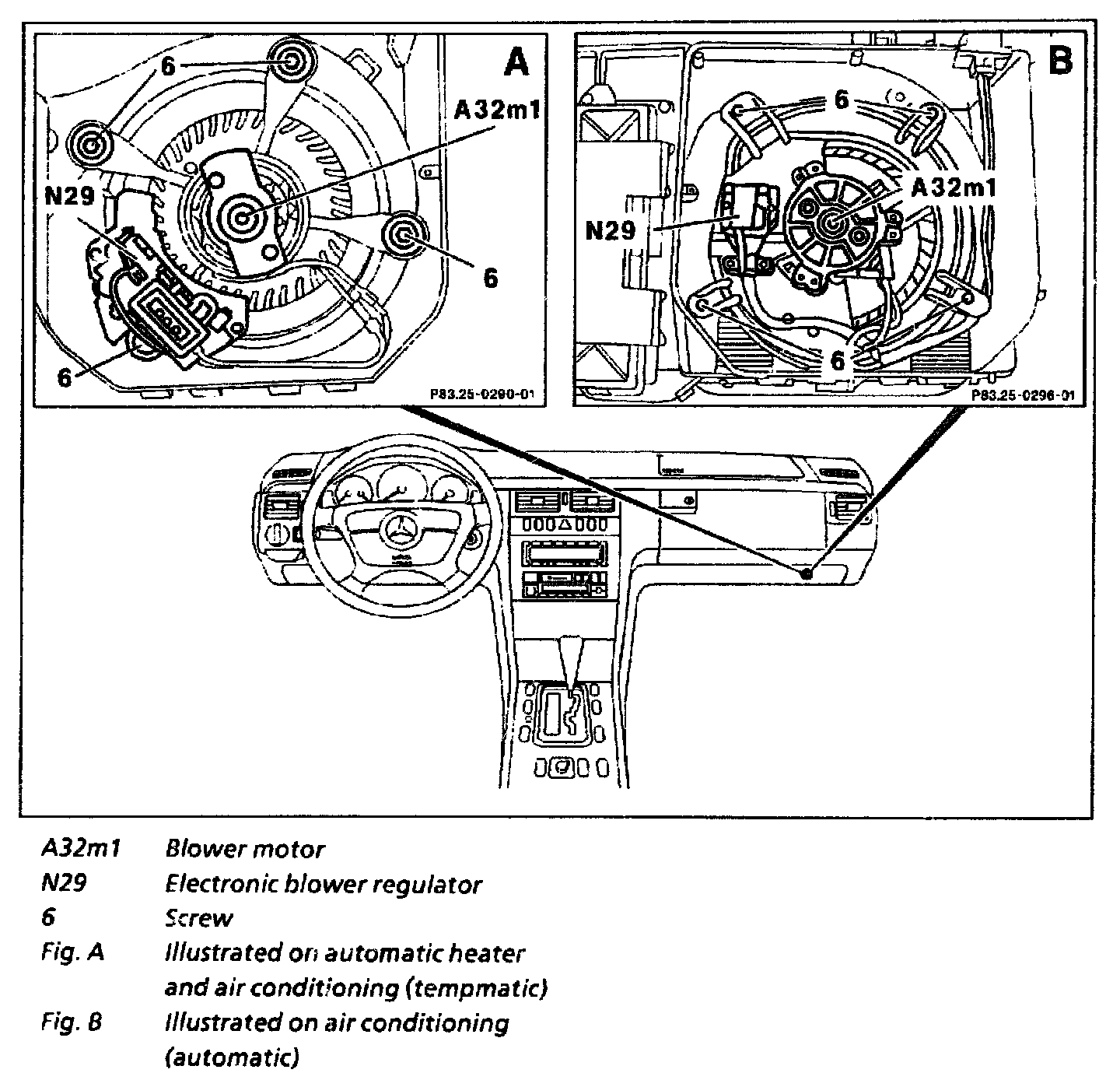

Removing and Installing Blower Motor





1 Remove electronic blower regulator (N29) Service and Repair
2 Unscrew screws (6), remove blower motor (A32m1)
3 Install in opposite order.
