E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

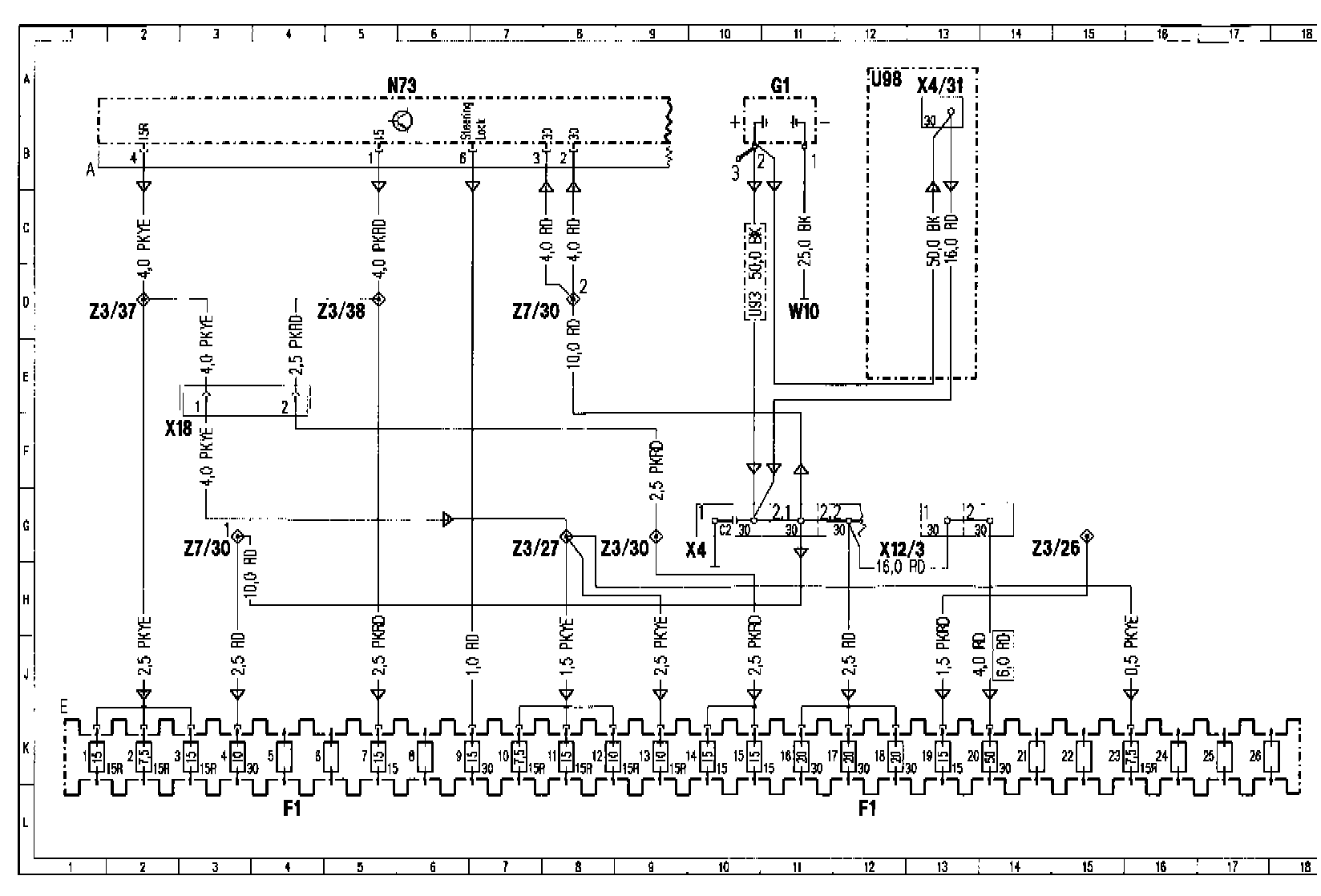

Fuse and Relay Box (F1) PE54.15-U-2000C (Up To 05/31/98)
Fuse and Relay Box (F1) PE54.15-U-2000C (Up To 05/31/98)
�z�(Wiring Diagram:

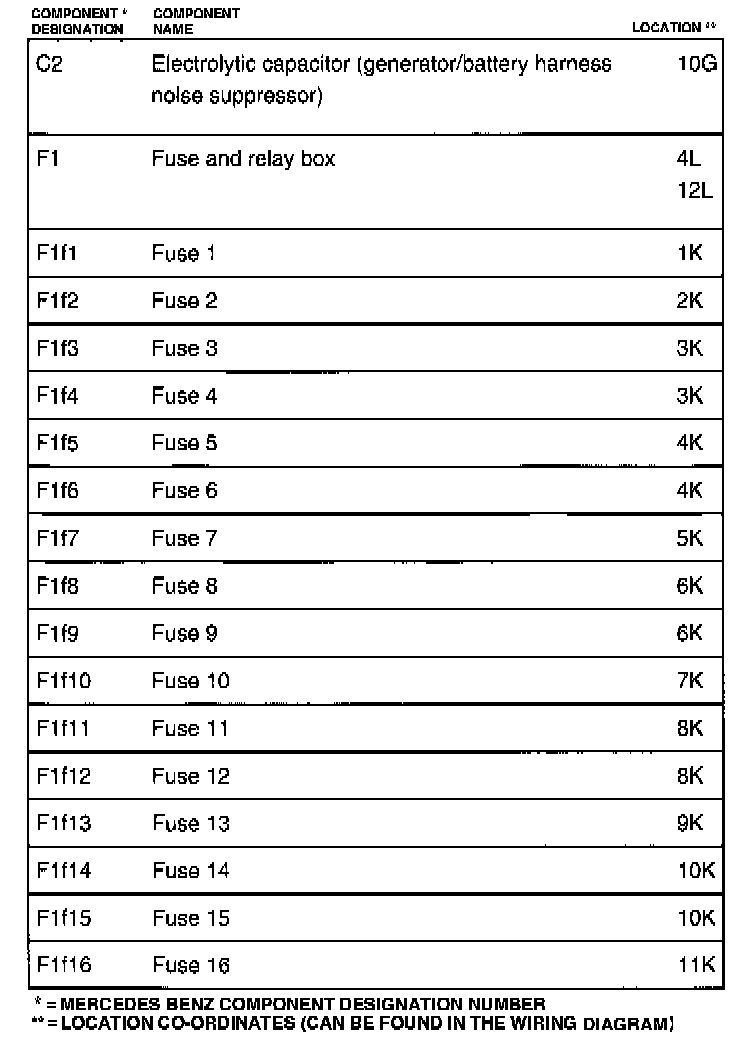

Component Grid Location
C2 - F1f16:
F1f17 - Z3/27:
Z7/30 - Z7/30:
