ME-SFI Fuel Injection/Ignition System PE07.61-U-2000J (Up To 5/31/98)

ME-SFI Fuel Injection/Ignition System
- Engine Compartment/Frame Floor Harness

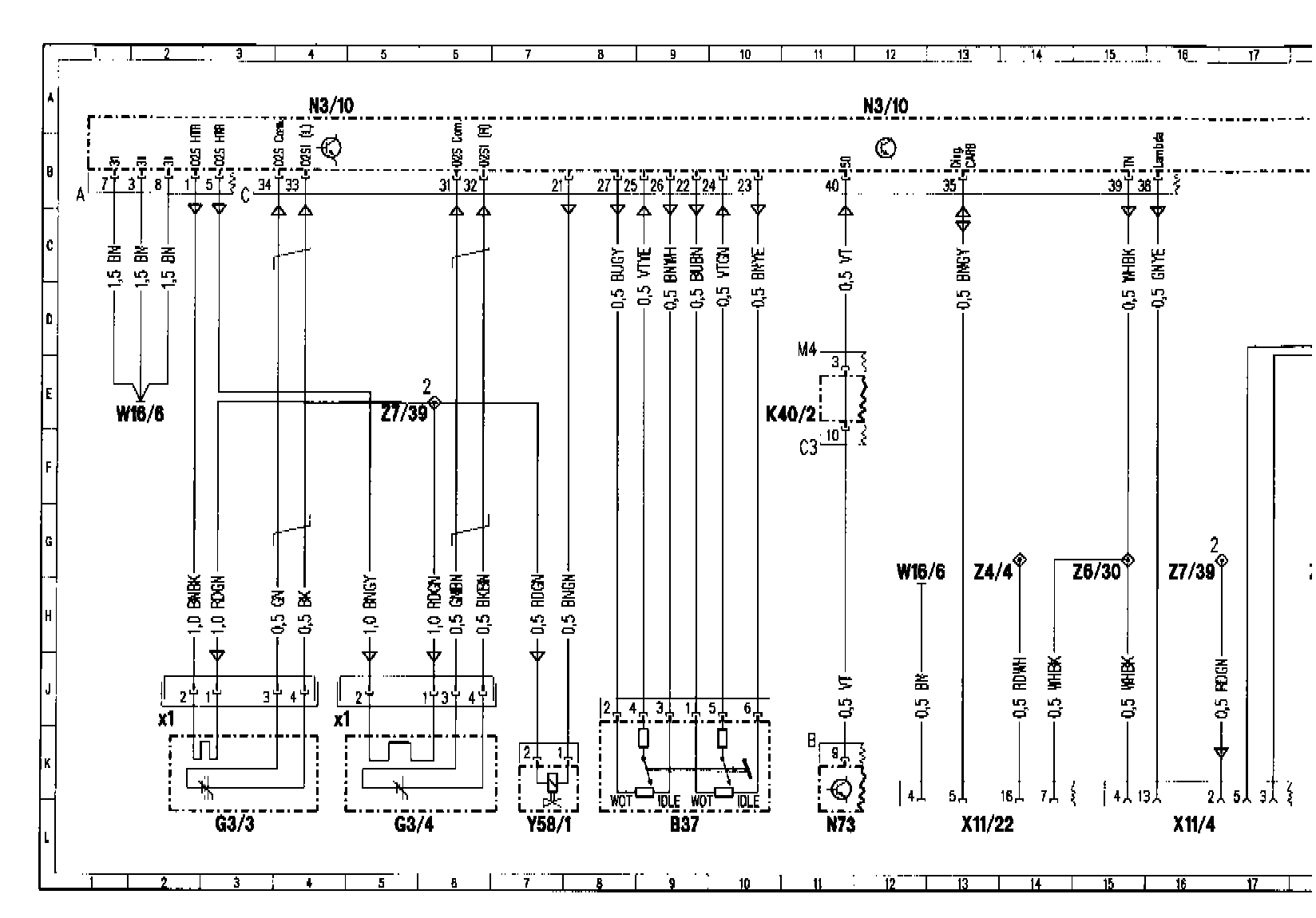

�����Wiring Diagram:

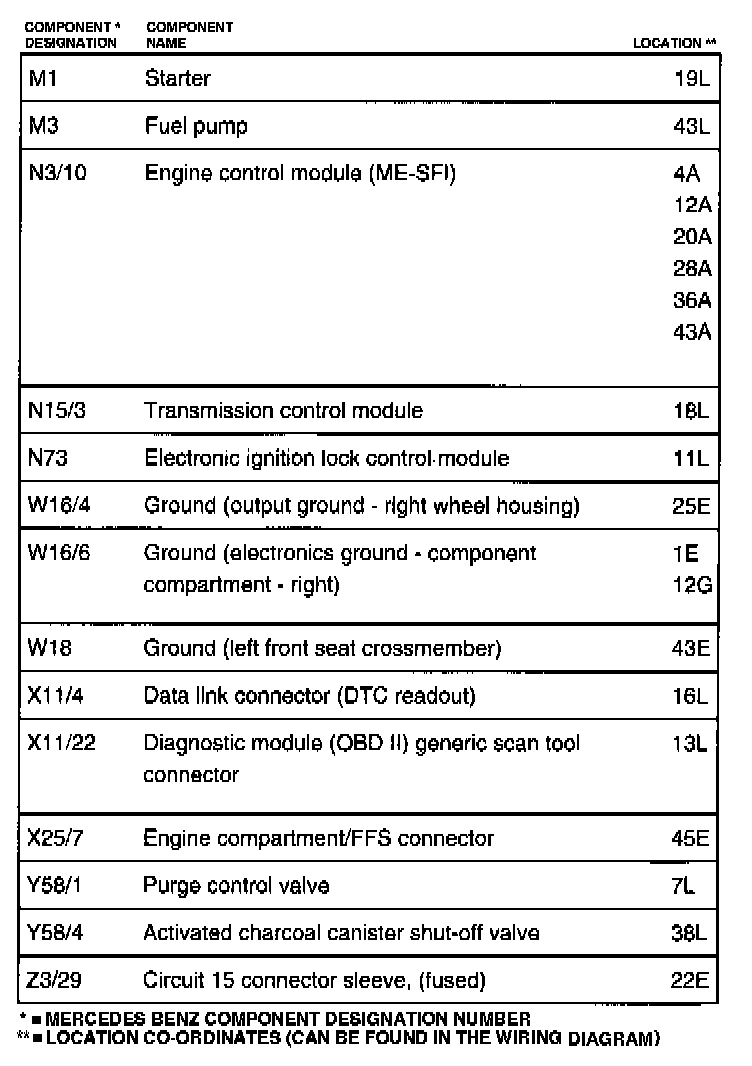

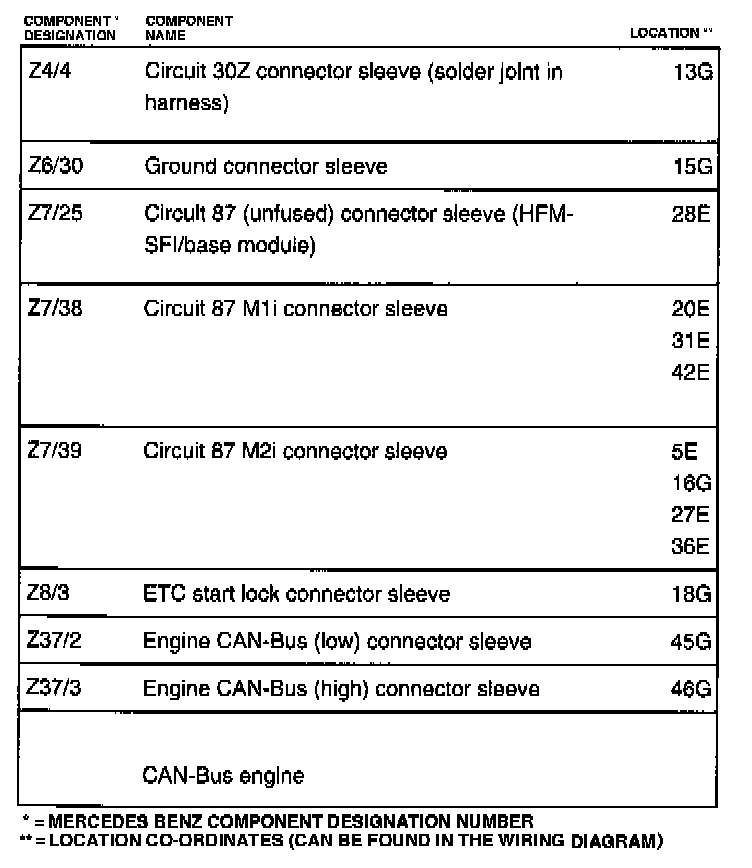

Component Grid Location

B4/3 - K40/4k2:

M1 - Z3/29:

Z4/4 - Z37/3:
