Figures (See Ground Index for Application)



See ground Index to determine figure/component application.
Ground Index

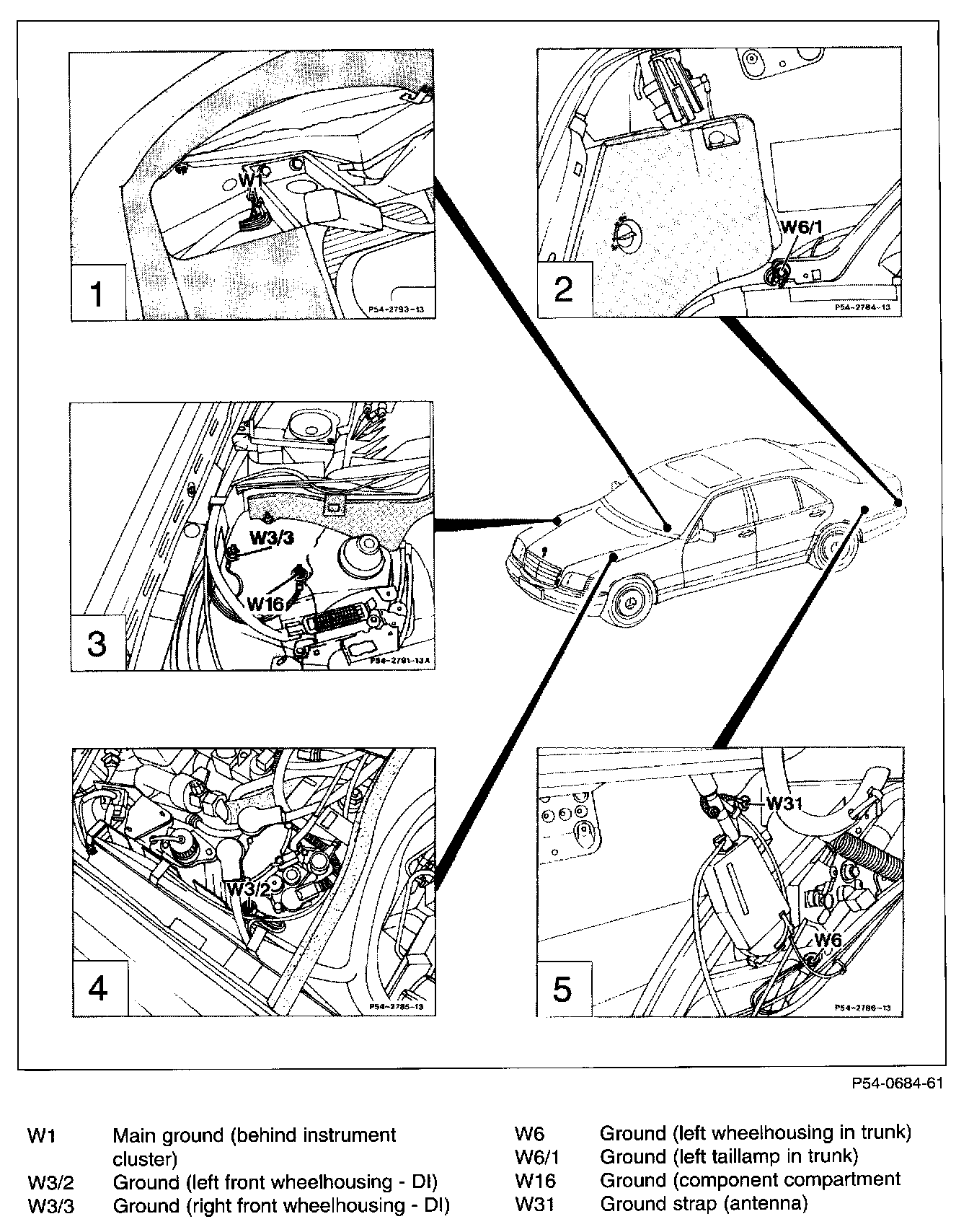

B.3/1:

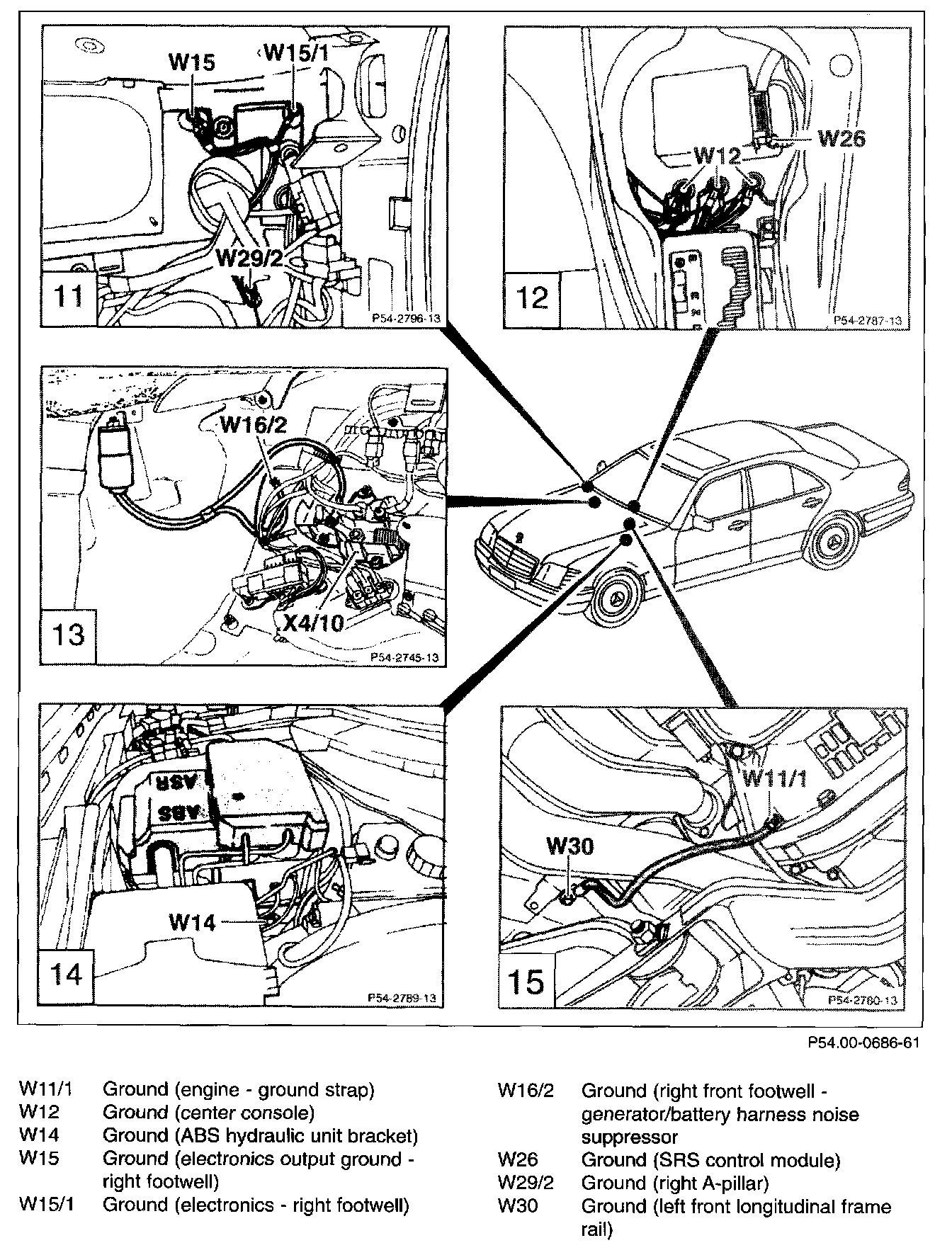

B.3/2:

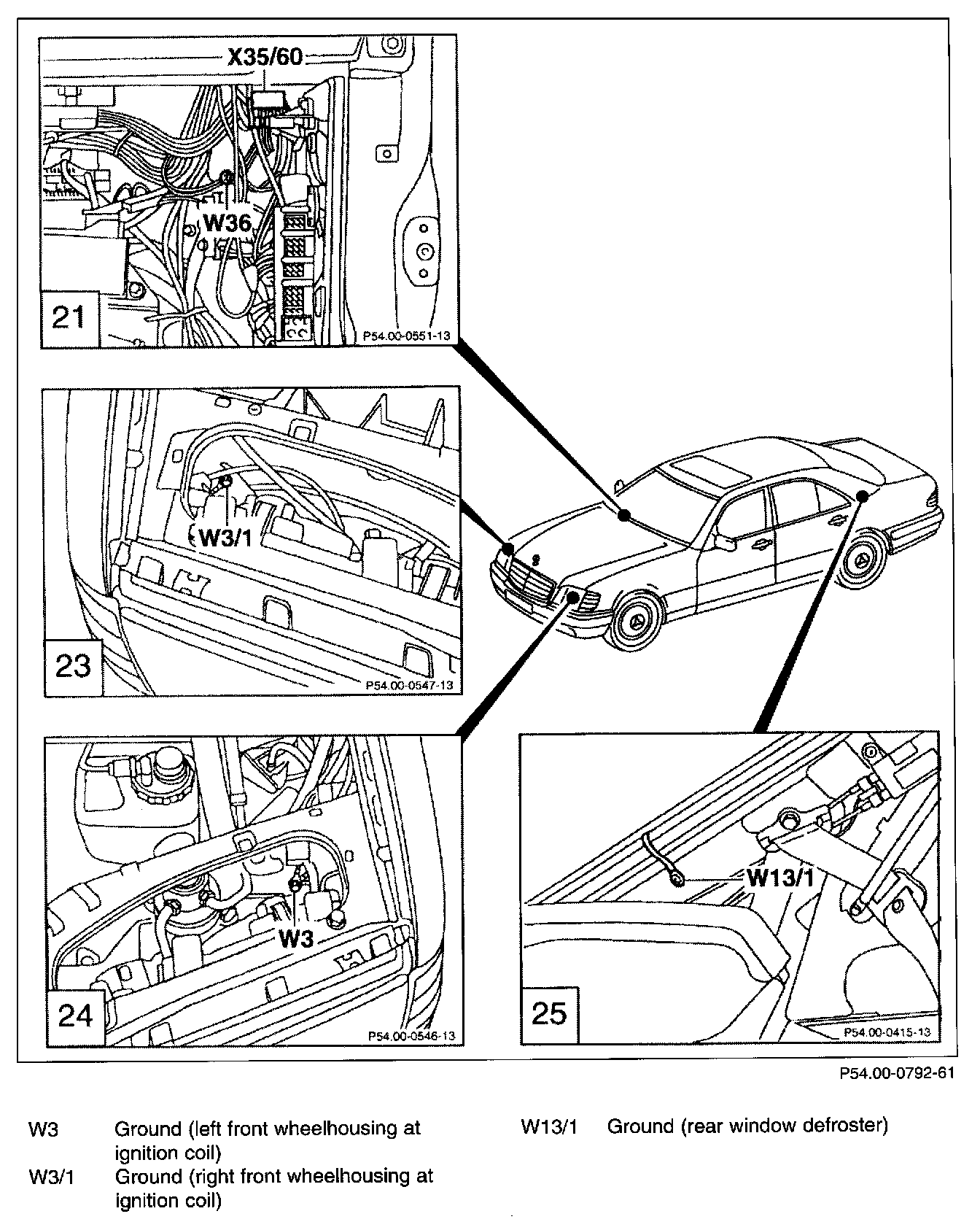

B.3/3:






B.3/4:






B.3/5:
