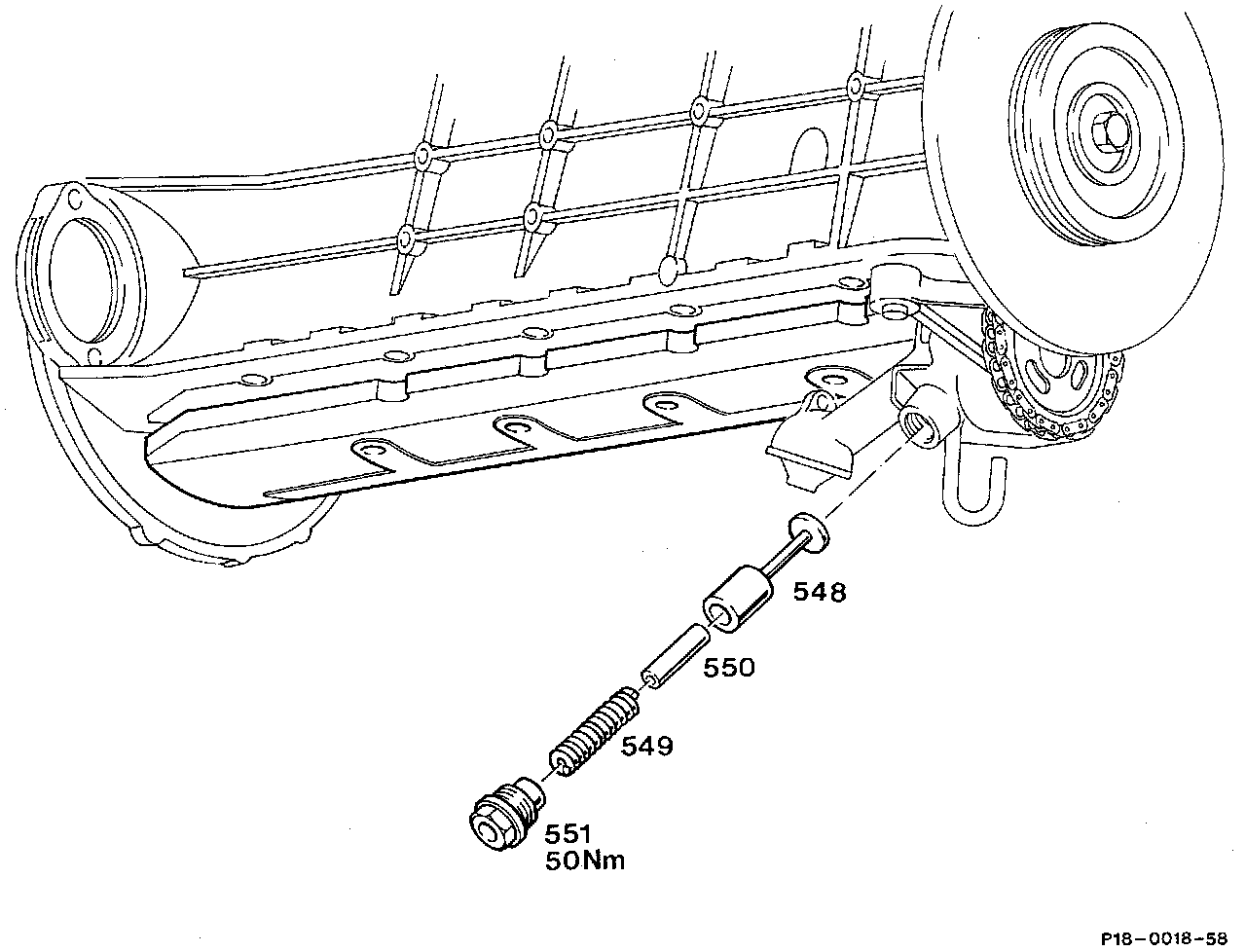

Oil Pressure Regulator Valve
Oil Pressure Regulator Valve
Legend
548
Oil pressure relief valve
piston
549
Oil pressure relief valve spring
550
Oil pressure relief valve spring guide
551
Oil pressure relief valve screw plug
