Horn: Service and Repair

Preliminary work:
Front engine compartment panel removed (if equipped).
Front noise encapsulation removed (if equipped).

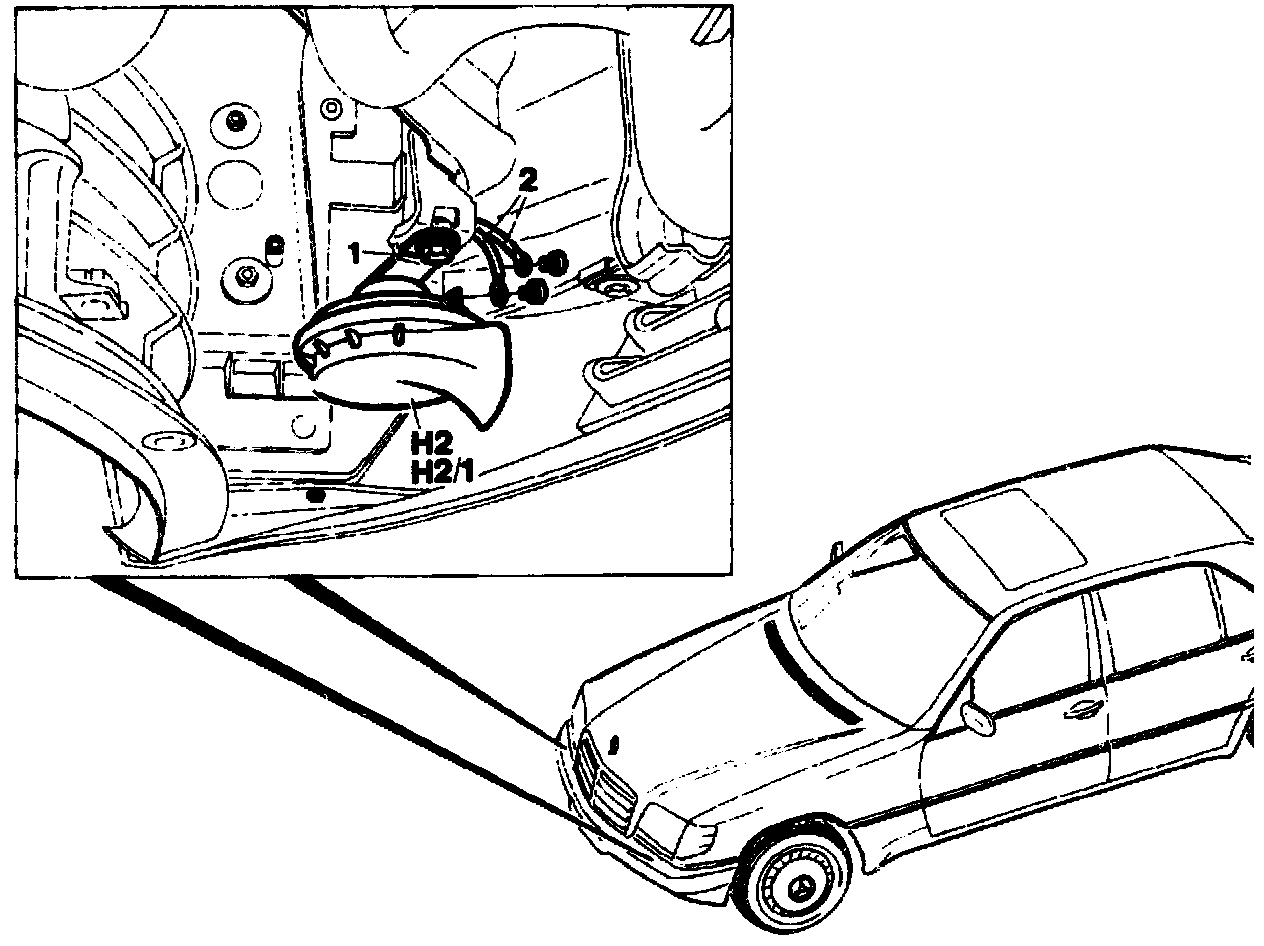

Bolt (1)
unscrew, screw in.

Electric cables (2)
disconnect, connect.

Fanfare horns (H2, H2/1)
remove, install.

NOTE:
Right fanfare horn bass.
Left fanfare horn treble.
