License Plate Lamp: Service and Repair

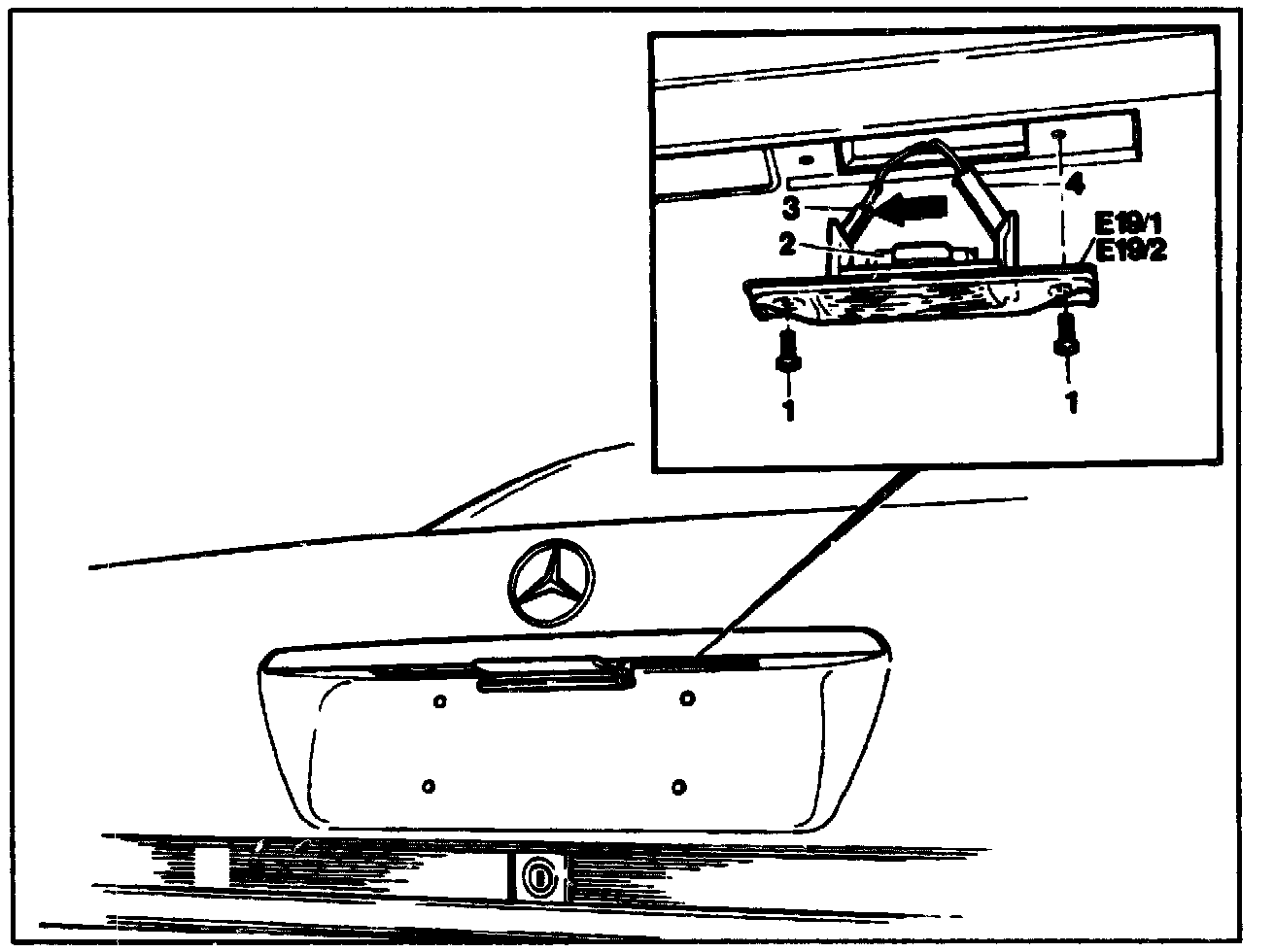

Screws (1)
remove, screw in.

License plate lamp (E19/1, E19/2)
remove, insert.

NOTE: When installing license plate lamp, ensure rubber seal is correctly located.

Bulb (2)
remove from base, insert.

Electrical connections (3 and 4)
unplug, plug in.

NOTE: The ground connection (3) has a locking element to prevent it being detached inadvertently (arrow).
