Fuel Pressure Regulator

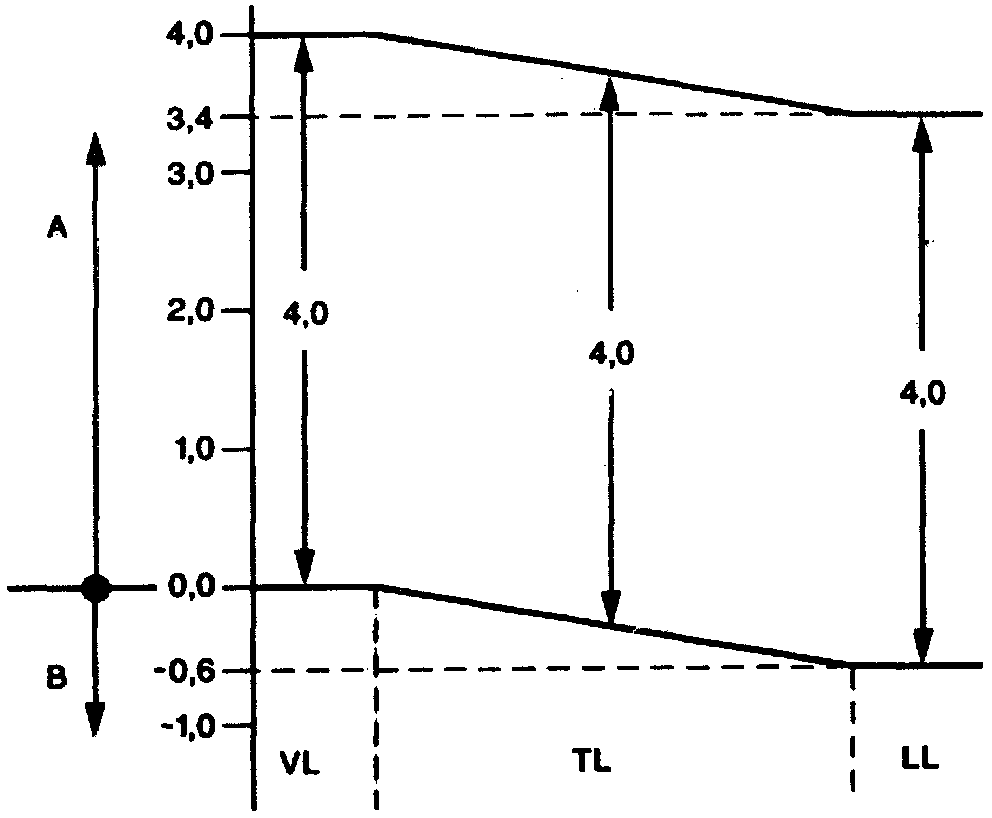

Fuel Pressure Diagram:





A - Fuel pressure in bar
B - Intake manifold vacuum in bar

LL - Idle speed
TL - Part throttle
VL - Full throttle
