Windshield Washer Reservoir: Service and Repair

Preliminary work:
Front bumper removed.
Right lamp unit removed, refer to "Replacing Headlamp Unit". Service and Repair







Removal

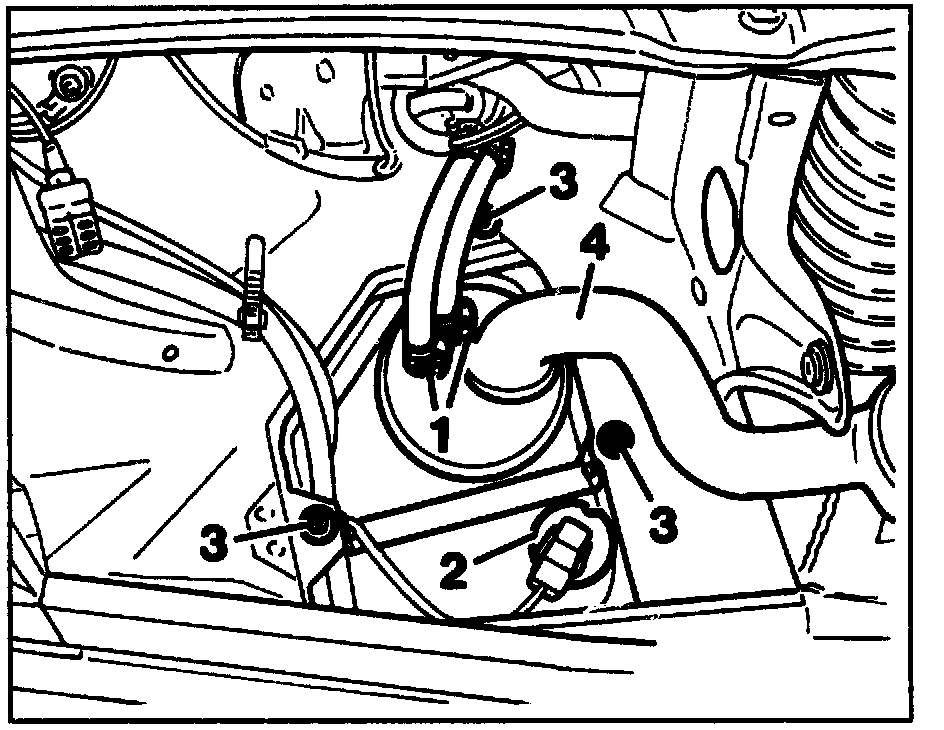

Filler pipe (4) with bolt
unscrew and take out.

Lines to heat exchanger with screws (1)
slacken and pull off.

4 bolts on engine compartment lining below washer reservoir.
unscrew.

Washer fluid indicator (2)
withdraw.

Washer reservoir with nuts (3)
unscrew.

Washer reservoir
take out downwards.

Washer pump
withdraw.


Installation
Installation is performed in reverse order.


NOTE: Coat filler pipe (4) at reservoir with lubricant (e.g. soft soap) to ensure the rubber seal does not drop into the reservoir when the filler connection is pressed into the reservoir.
