Anti-Theft Alarm System (ATA) PE80.50-U-2000C
Anti-Theft Alarm System (ATA)
Wiring Diagram
ļ%8:

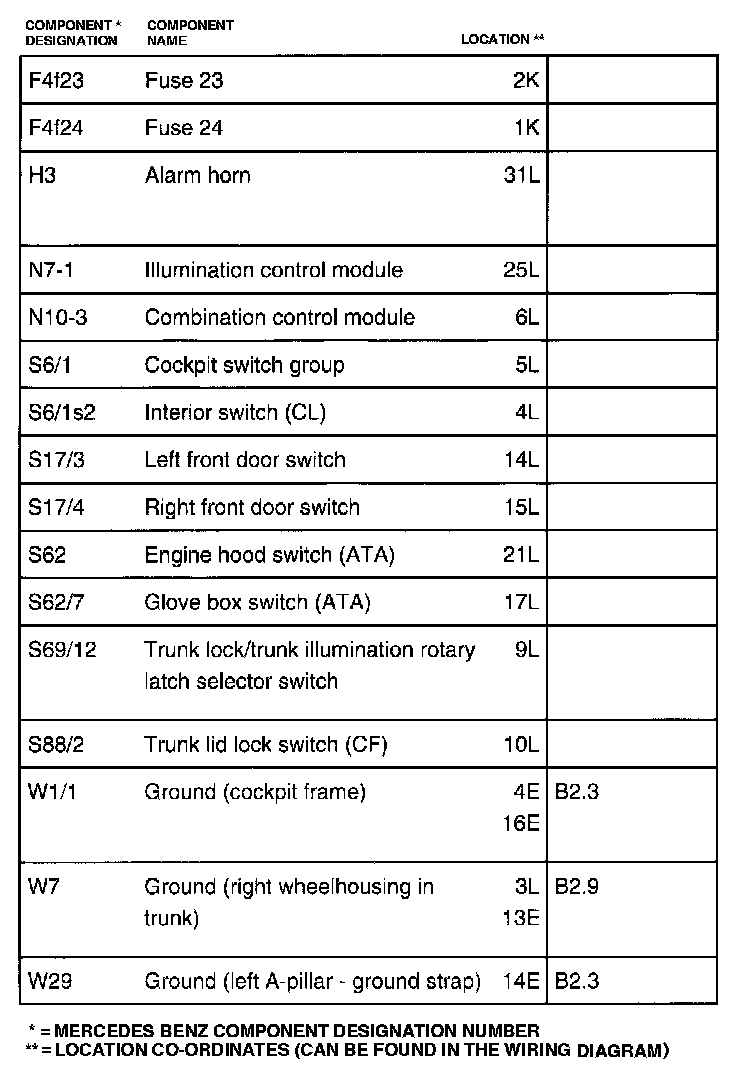

Component Grid Location
A37 - F4:

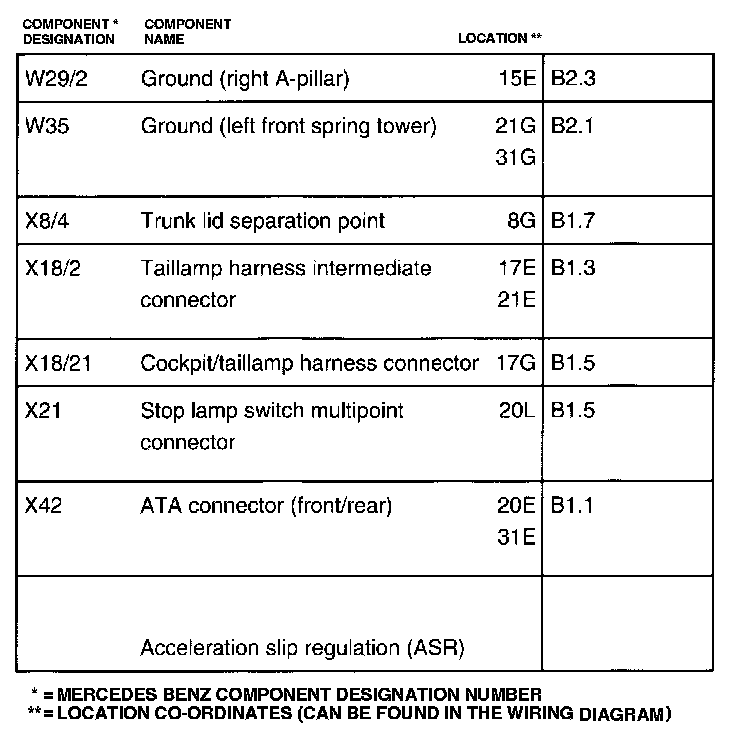

F4f23 - W29:
W29/2 - X42:

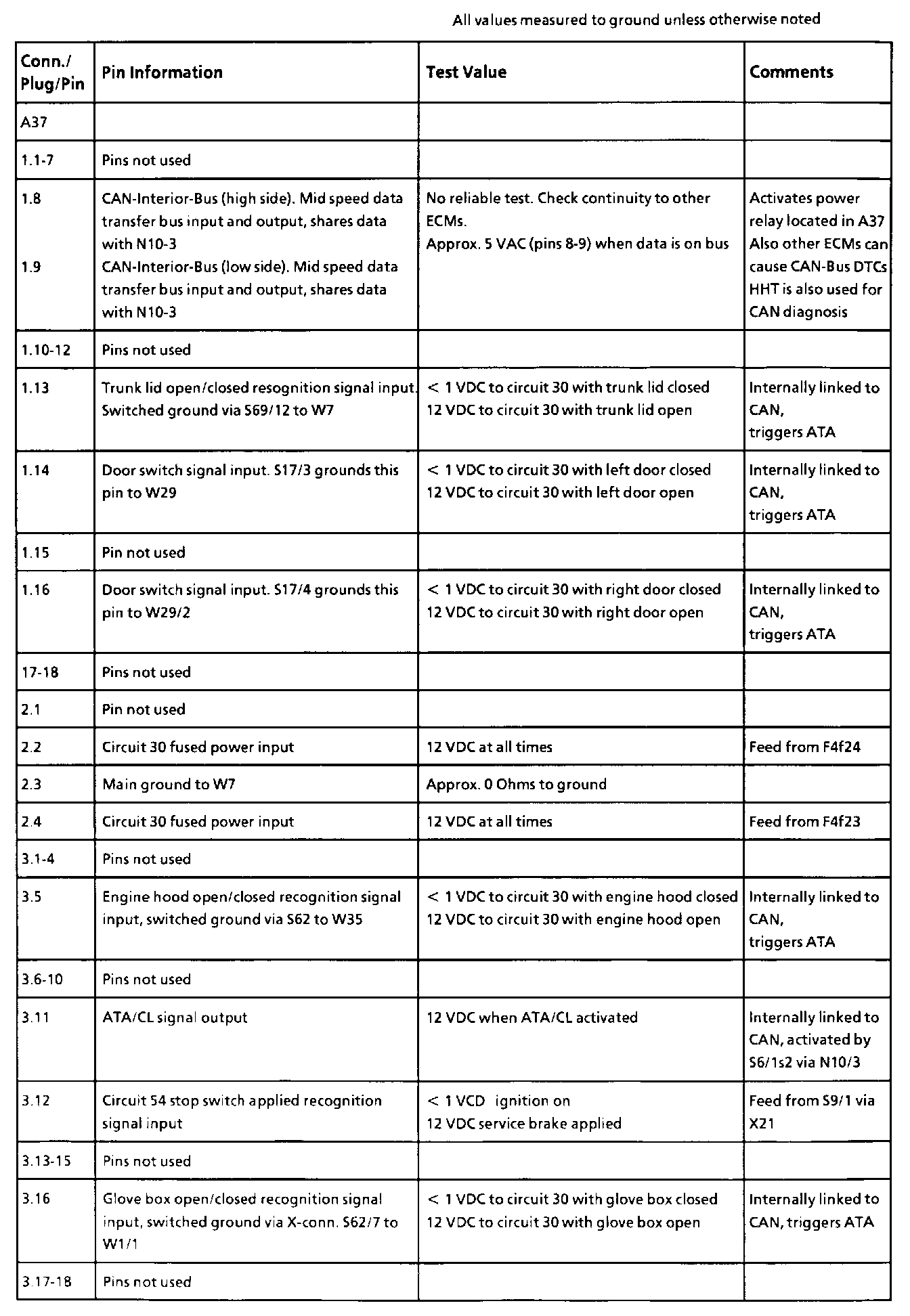

Pin-Out Testing - Component: A37
Connector A - Pin 37 Through Connector 3 - Pin 18:
Connector 4 - Pin 1 Through 4 - Pin 4:
Connector Views:
