CD Changer



PE82.64-U-2000B - CD Changer

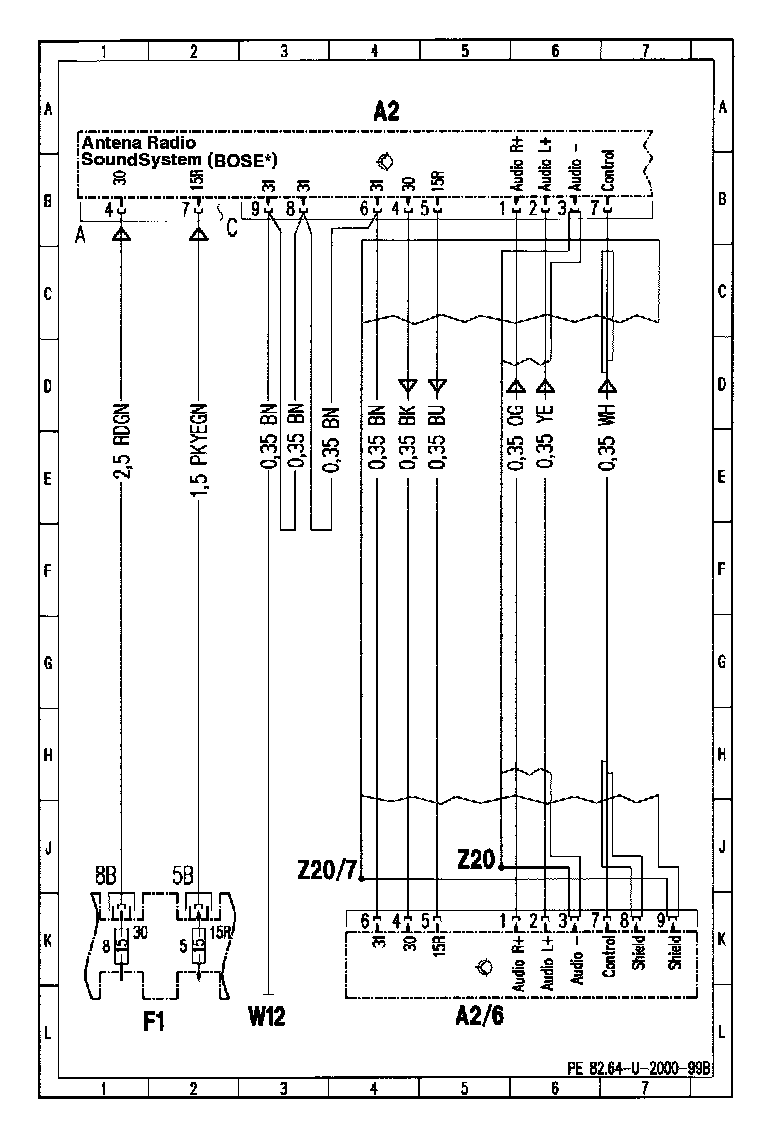

Wiring Diagram






Component Grid Location

A2 - Z20/7:

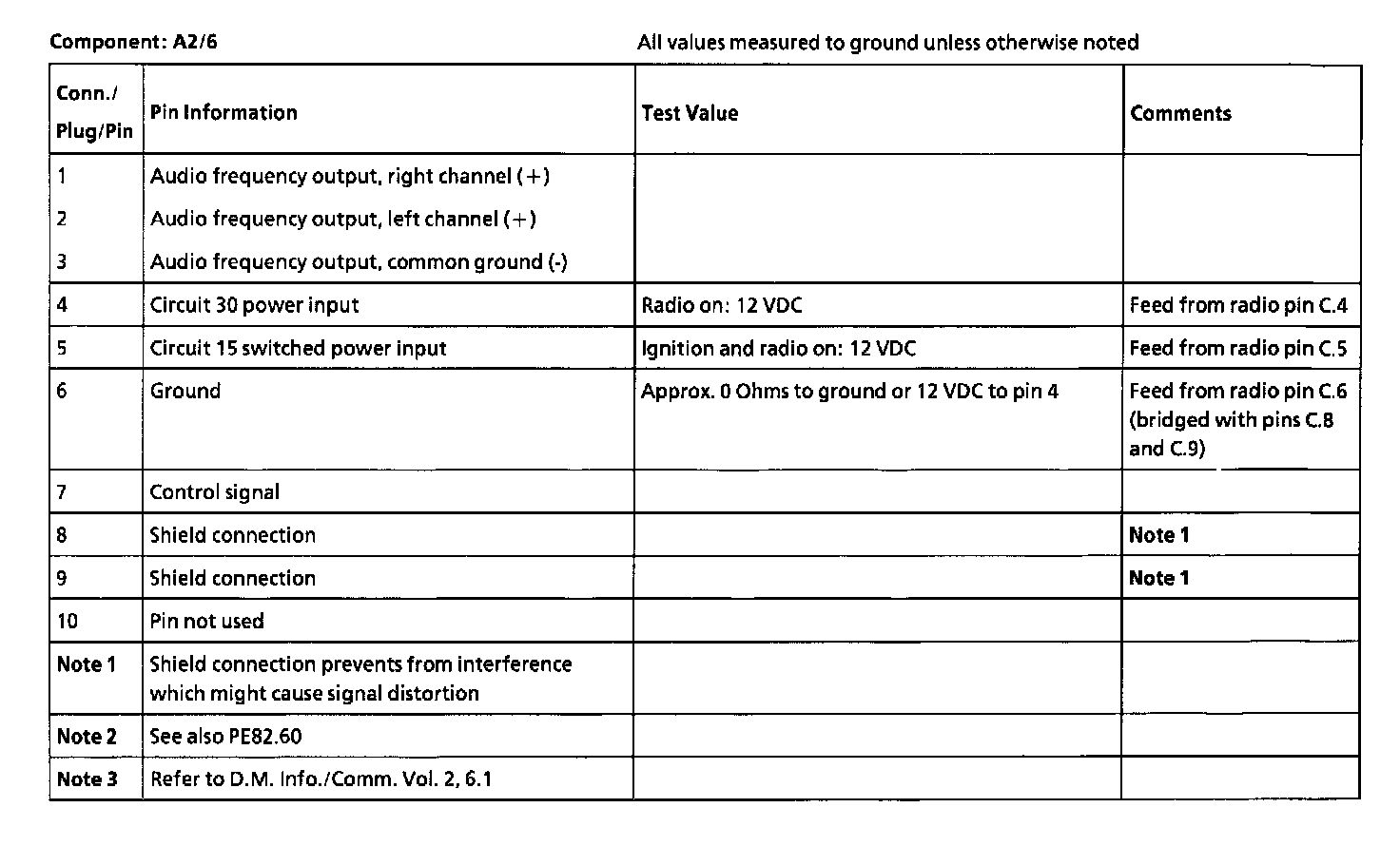

Pin-Out Testing - Component: A2/6

Connector - Pin 1 Through Pin 10:

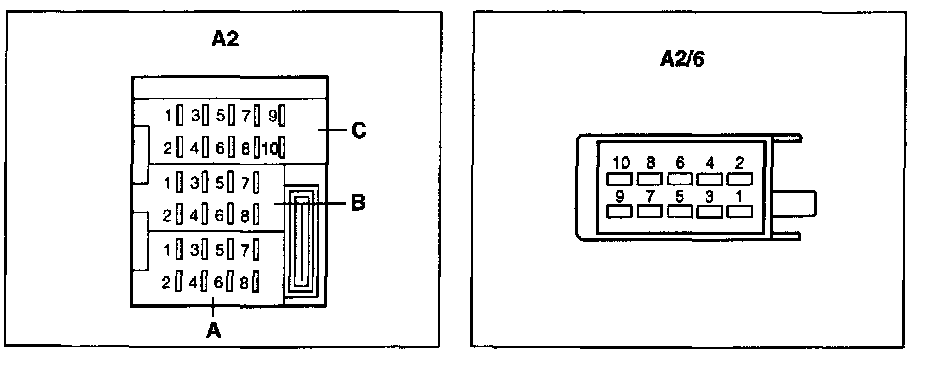

Connector Views:
