Heater Core Case: Service and Repair



Remove/Install Heater Housing

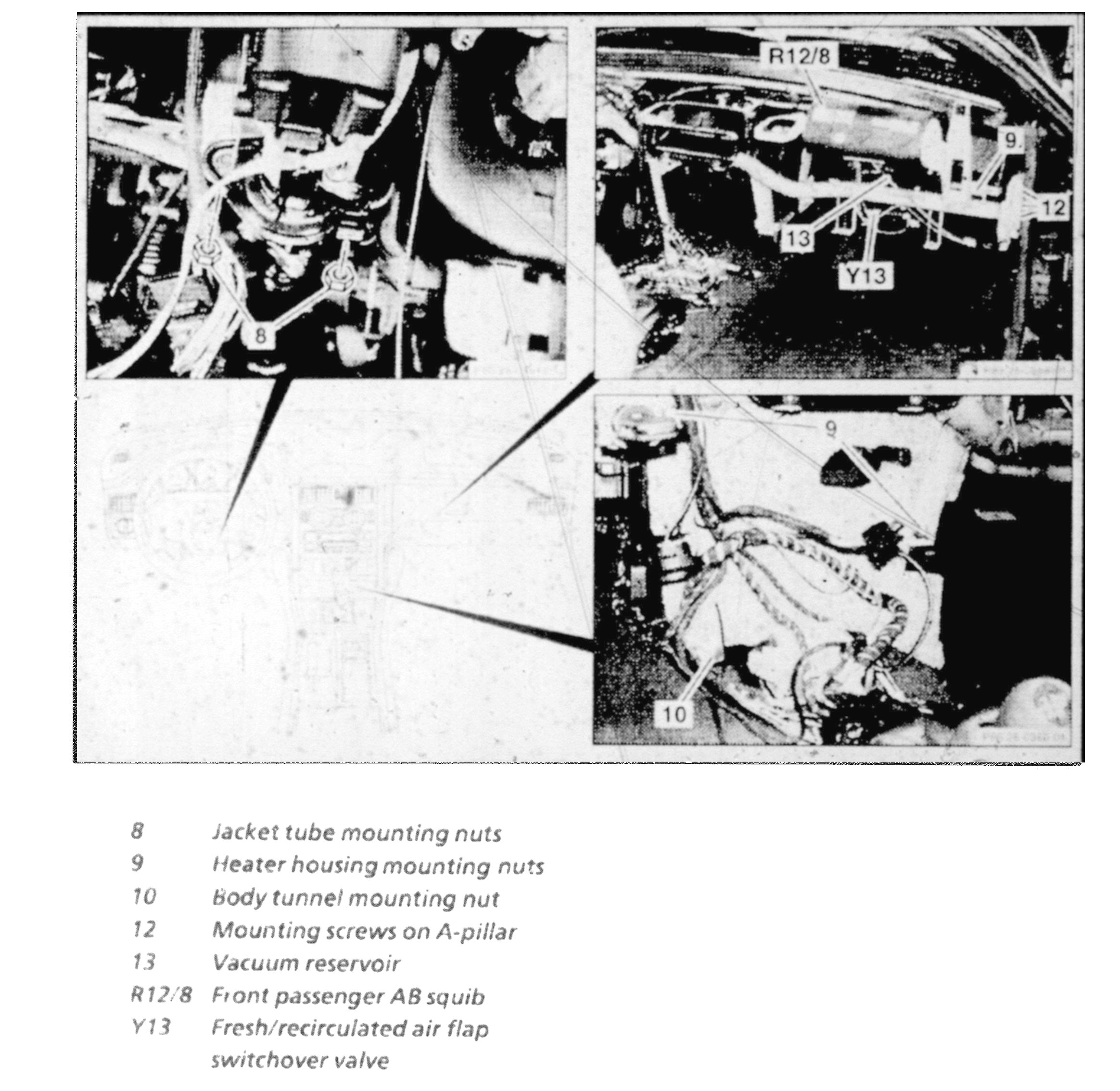

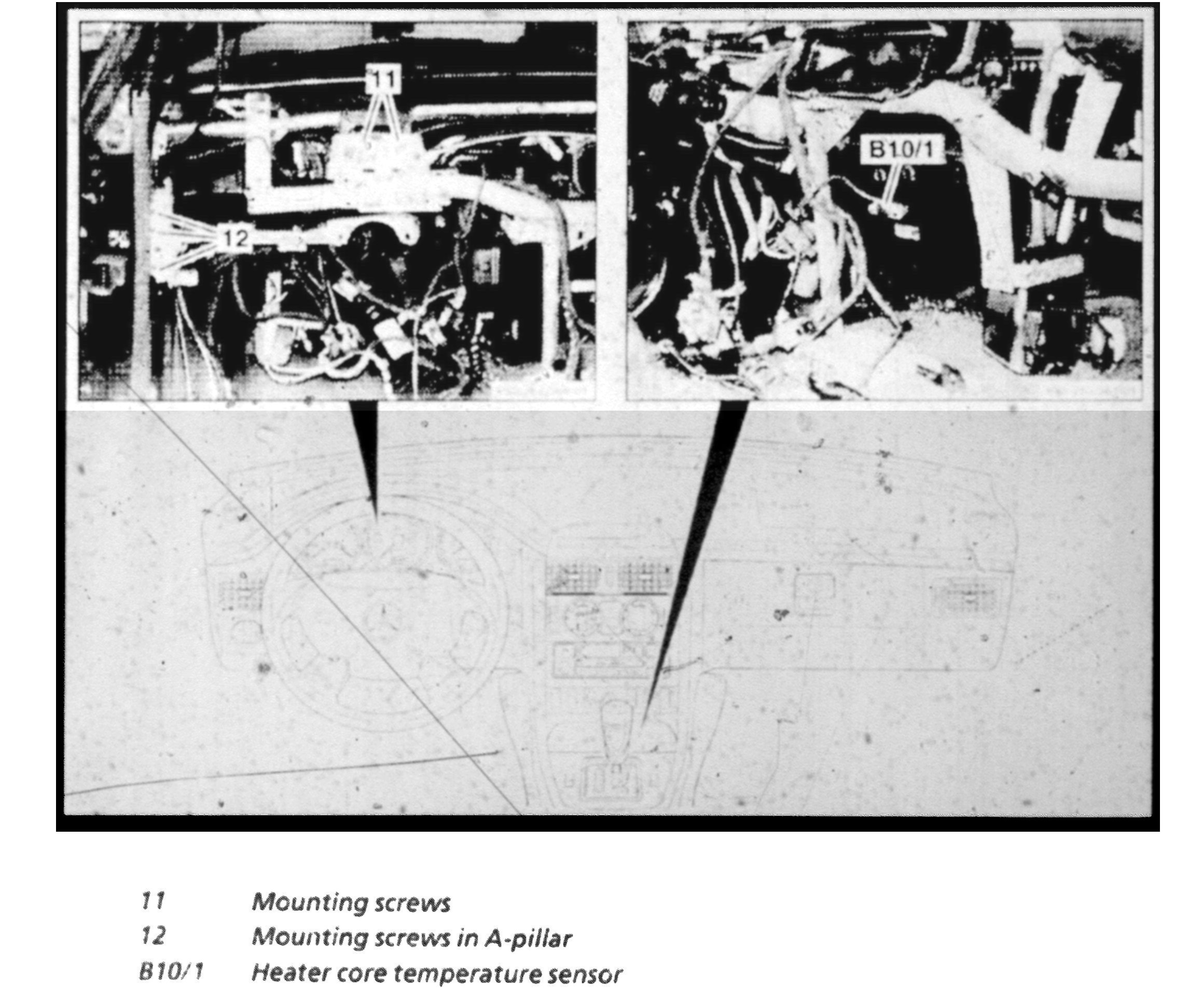

Component ID

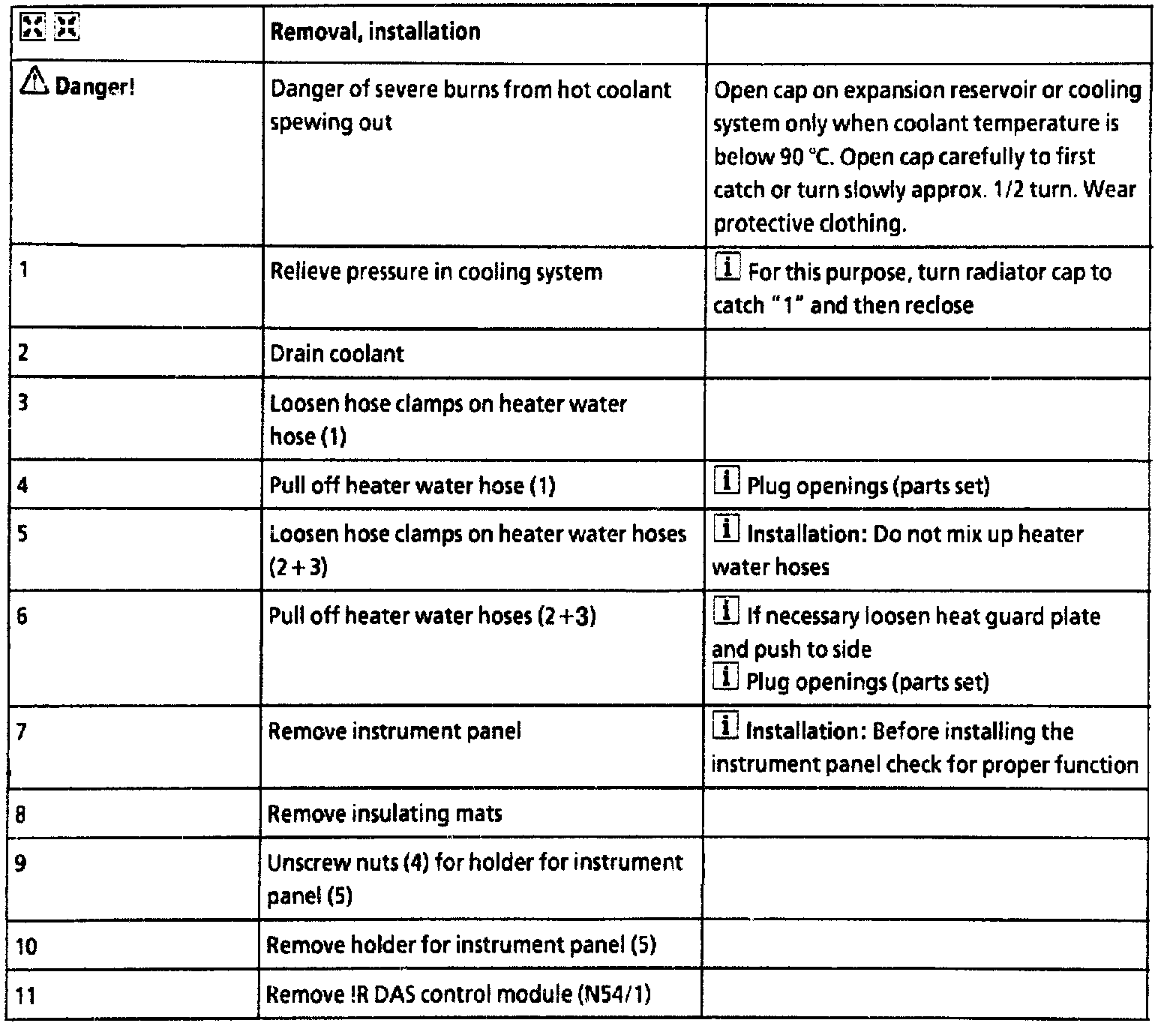

Removal, installation, Part 1 of 2

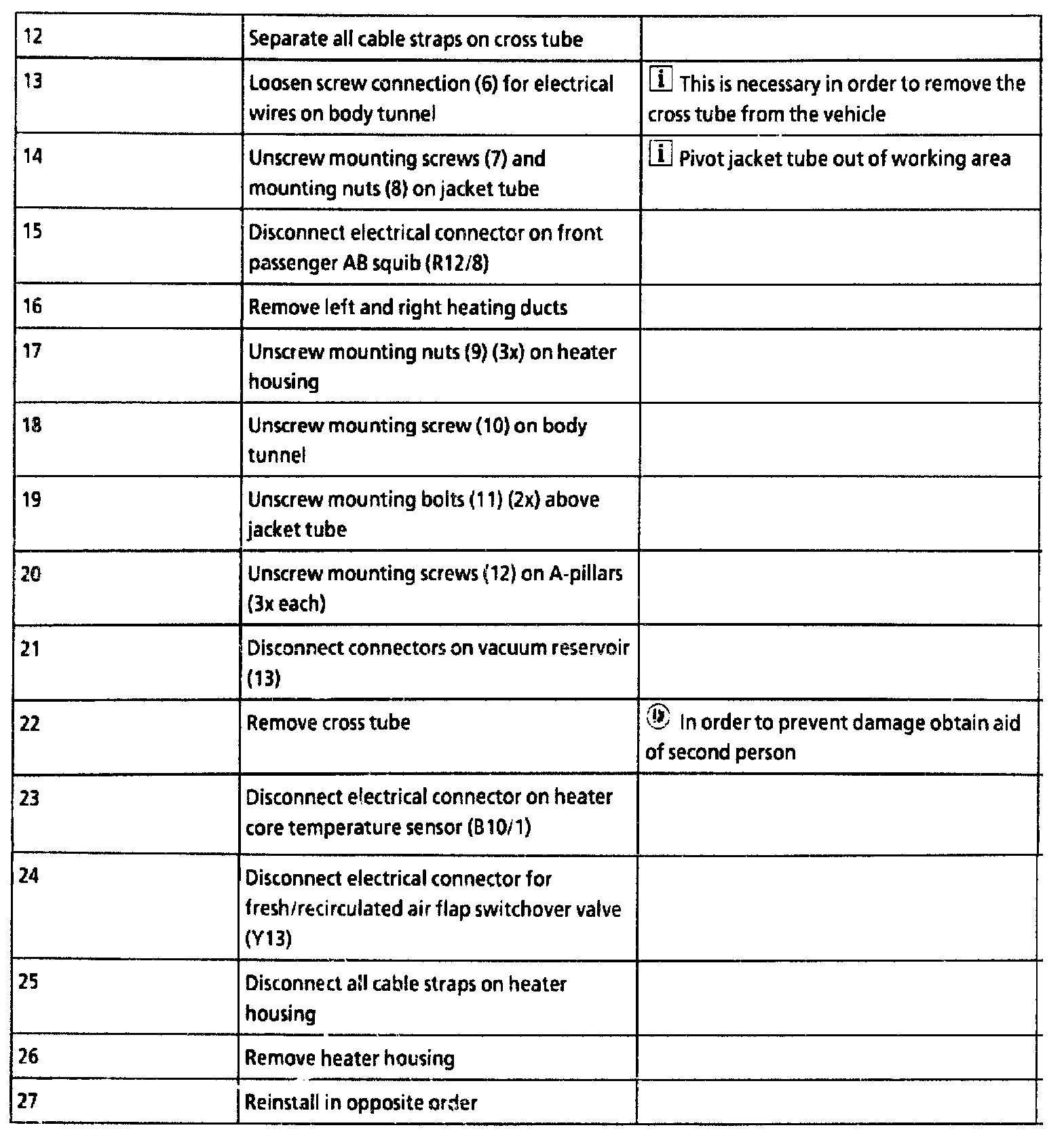

Removal, installation, Part 2 of 2
