Hood: Adjustments
AR88.40-P-3020E Adjust Engine
Hood

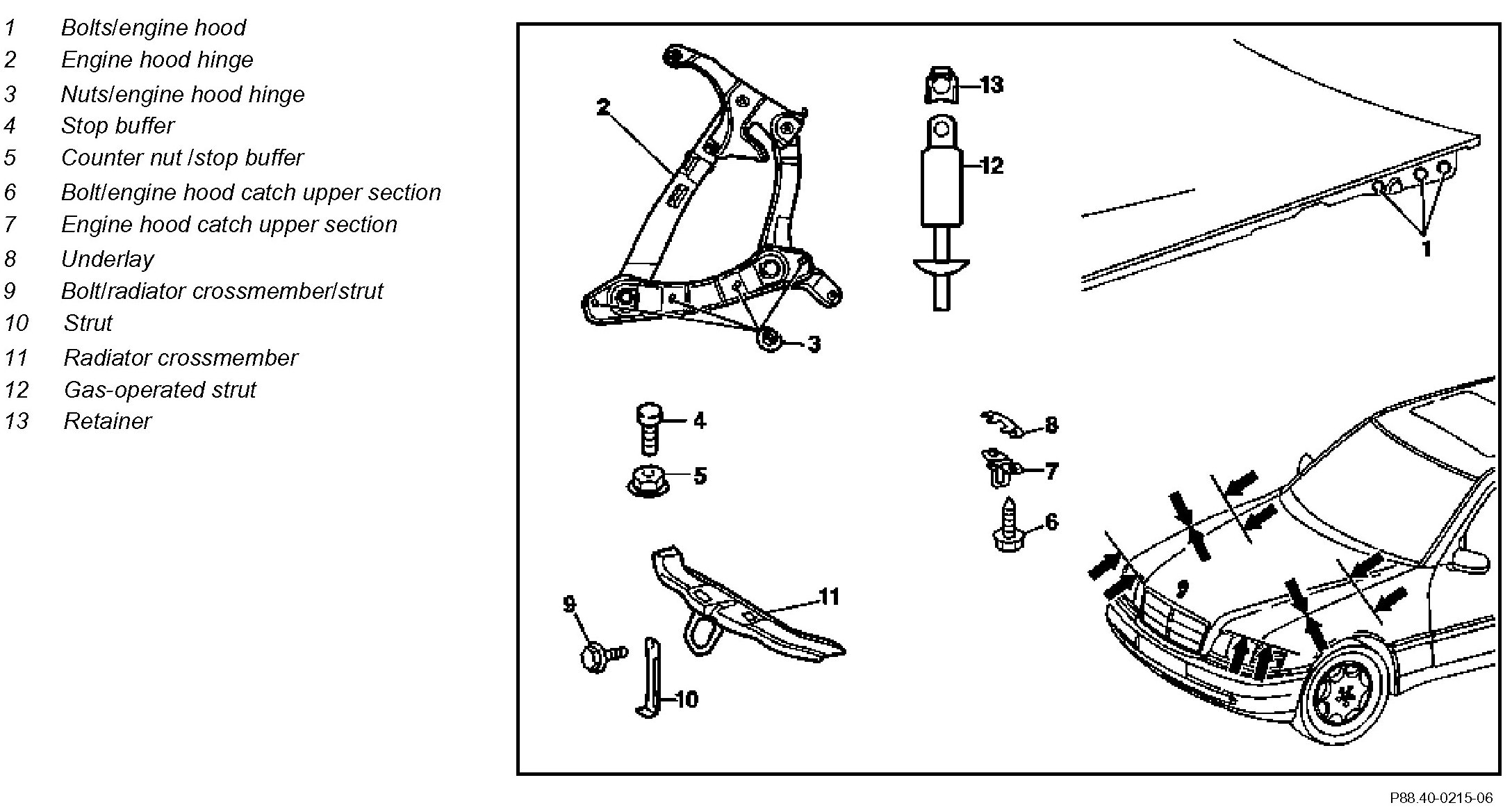

Component Identification:

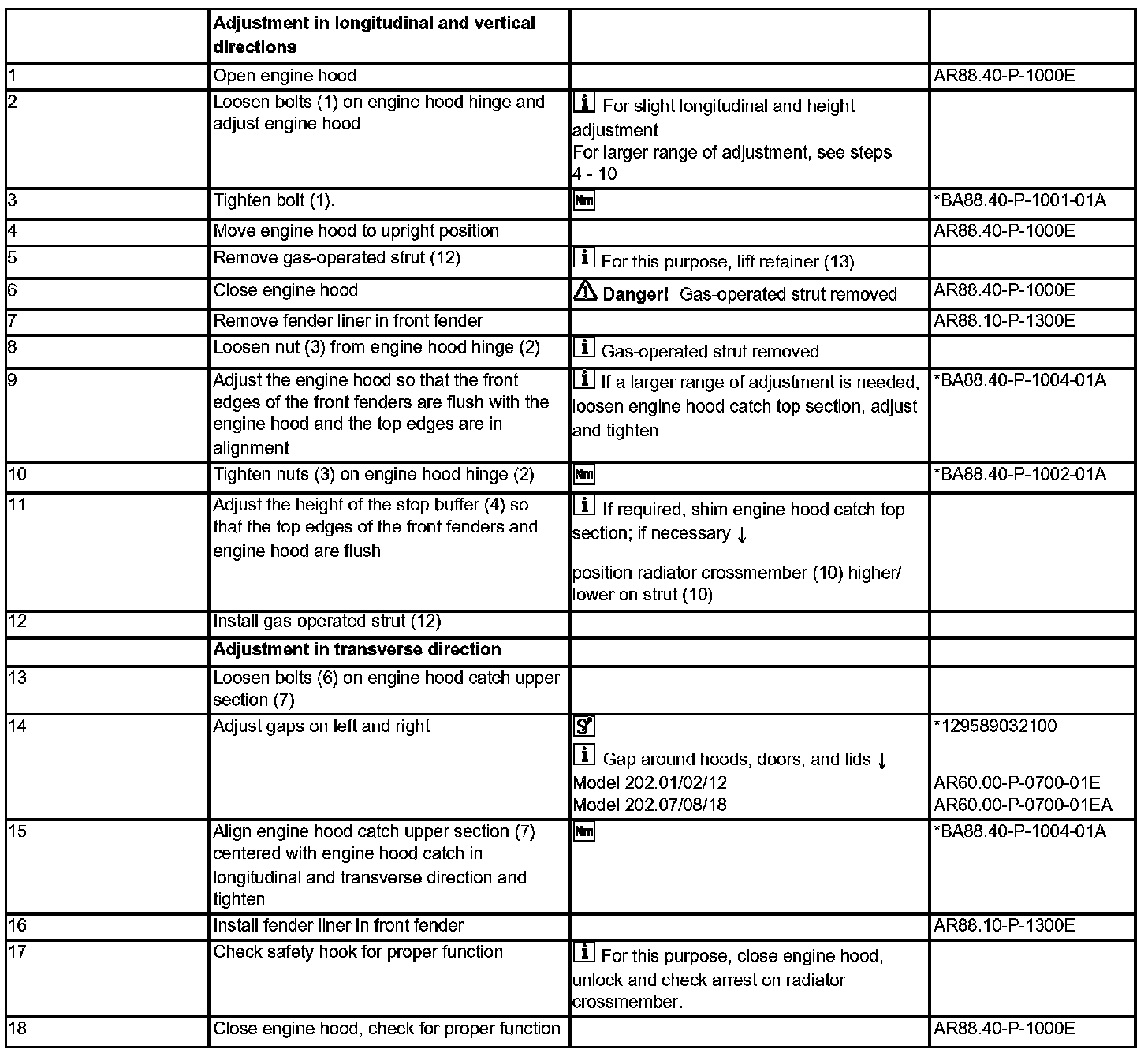

Steps 1 - 18:
Test And Adjustment Values, Gap Dimensions At Hoods, Doors And Covers:
Engine Hood:

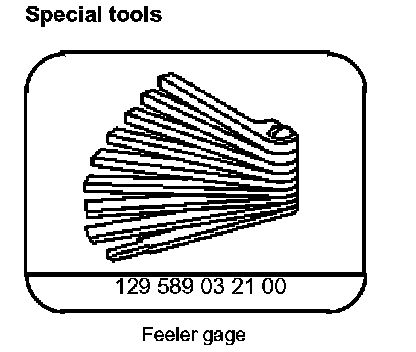

Special Tools:
