Cellular Telephone (CTEL) PE82.70-U-2000NB

Cellular Telephone (CTEL) PE82.70-U-2000NB
- Power Booster

Wiring Diagram, Part 1:

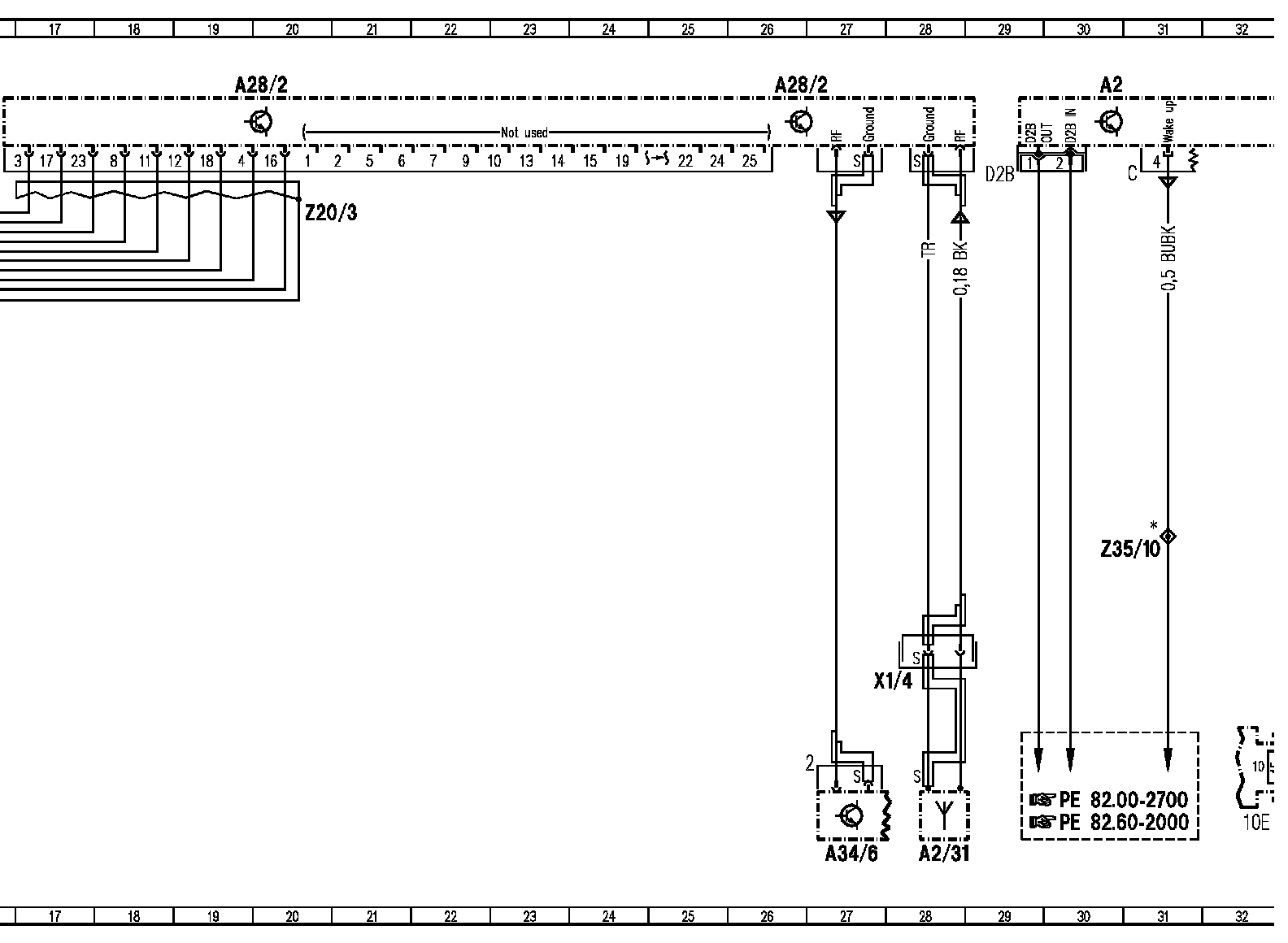

Wiring Diagram, Part 2:

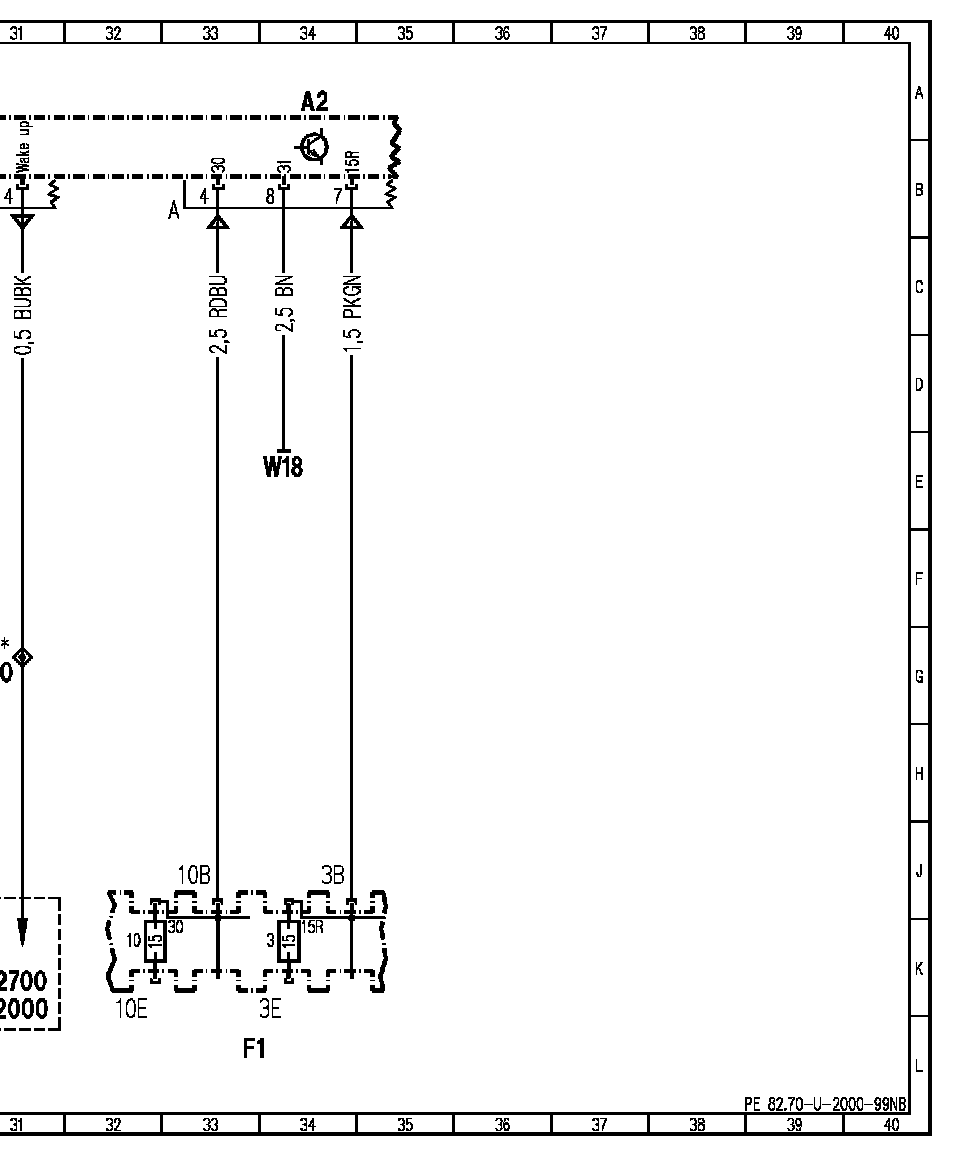

Wiring Diagram, Part 3:

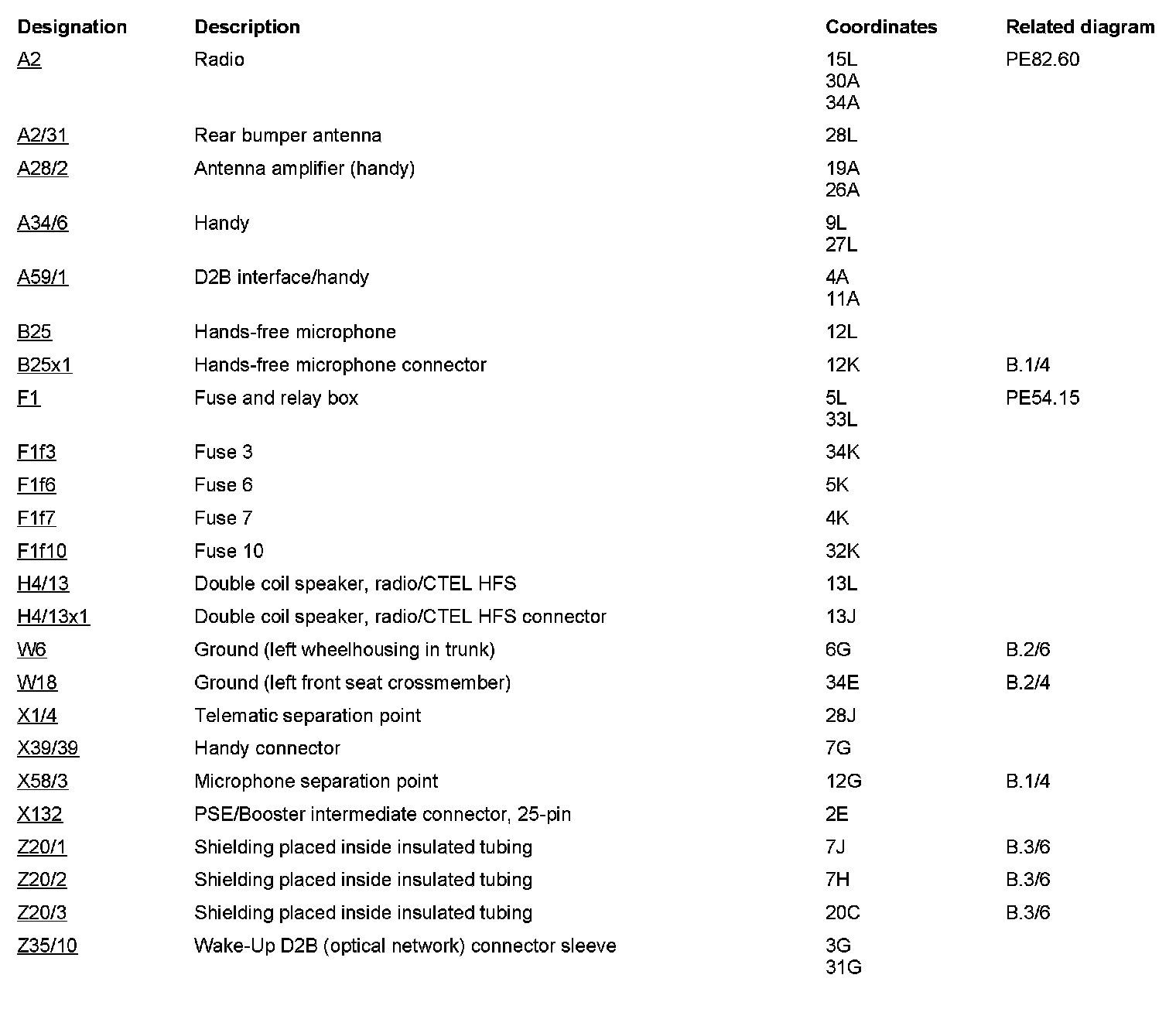

Component Description/Coordinates, A2 To Z35/10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
