Cellular Telephone (CTEL) PE82.70-U-2000V

Diagram Cellular Telephone (CTEL) PE82.70-U-2000V
- AMPS network with portable cellular telephone, with D2 bus

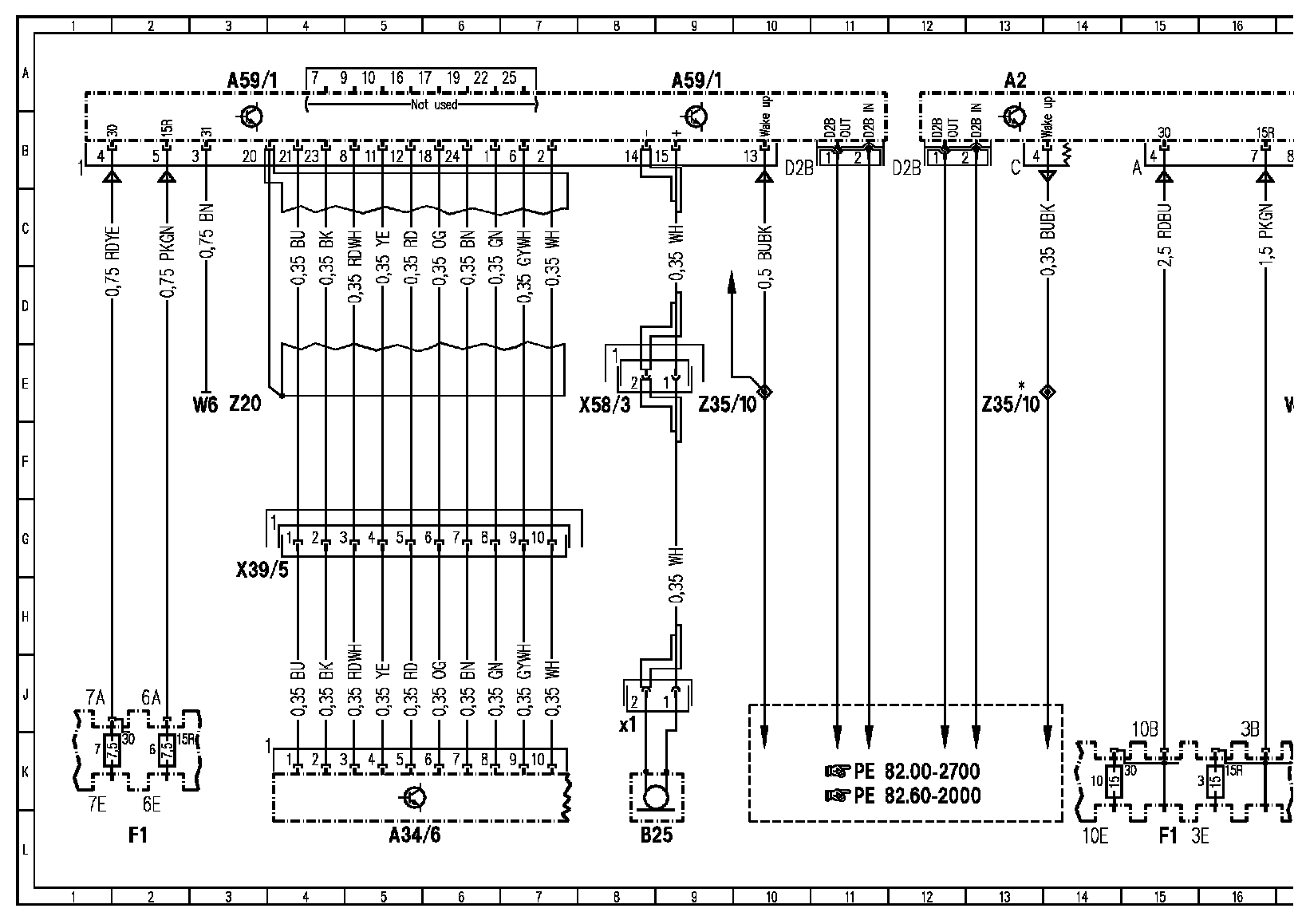

Wiring Diagram, Part 1:

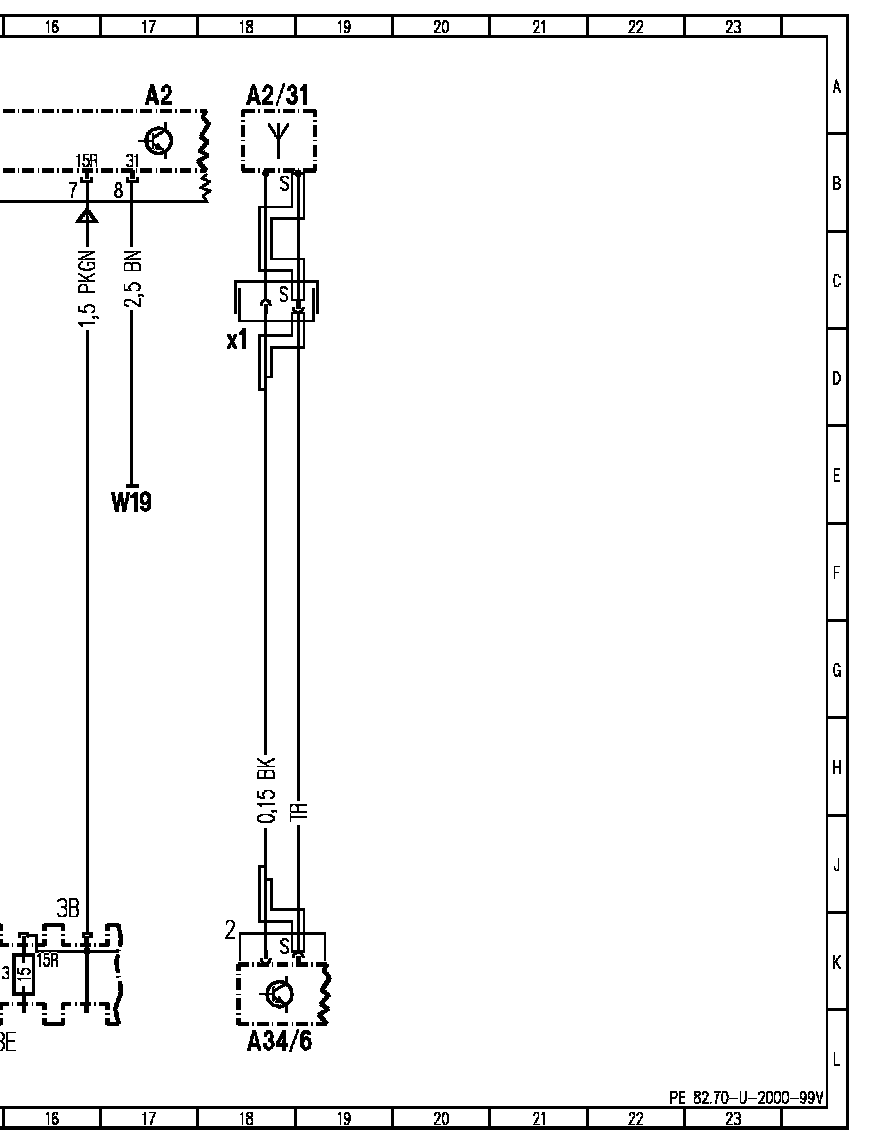

Wiring Diagram, Part 2:

Component Description/Coordinates, A2 To Z35/10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
