Power Brake Assist

Brake Assist (BAS) PE42.31-U-2000A

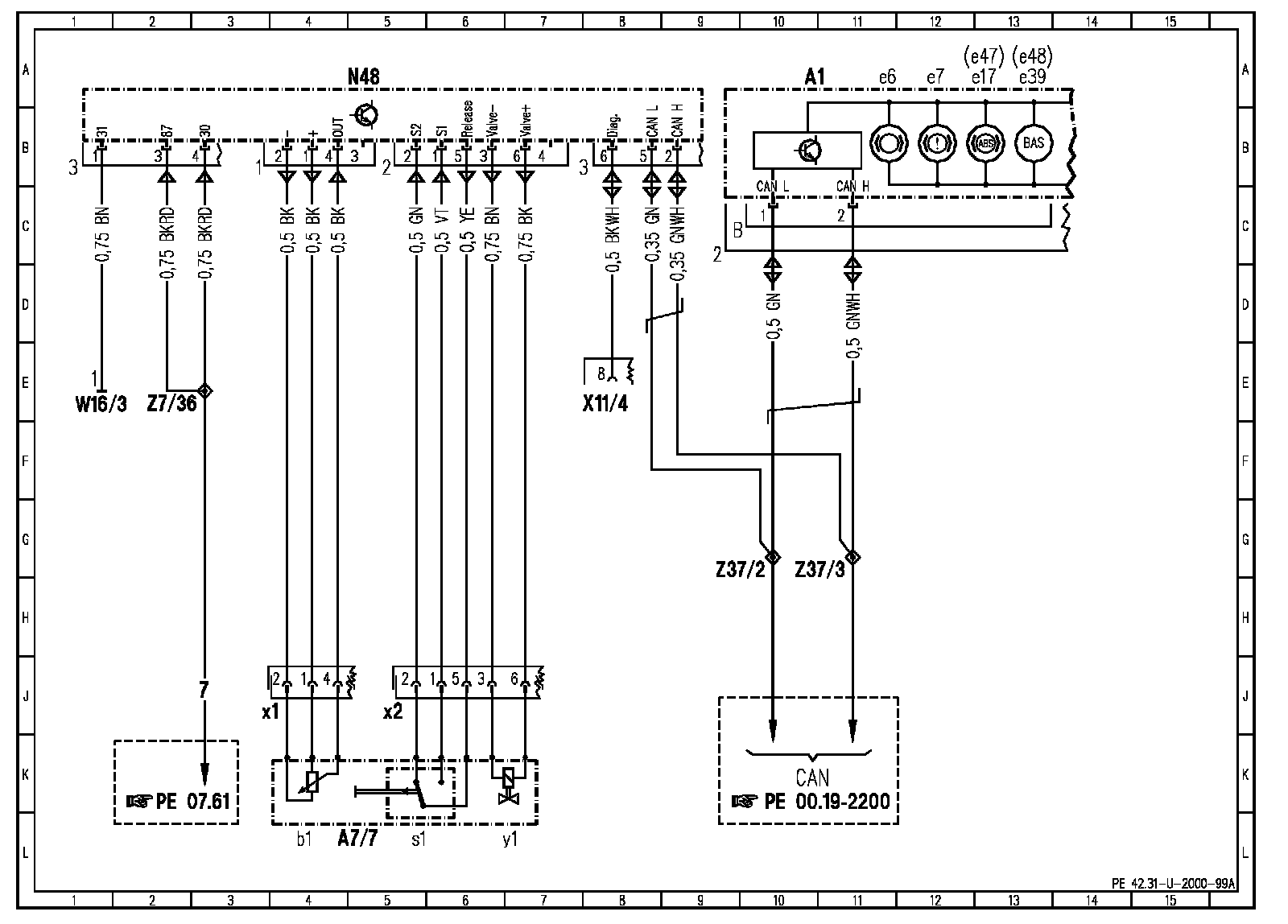

Wiring Diagram:

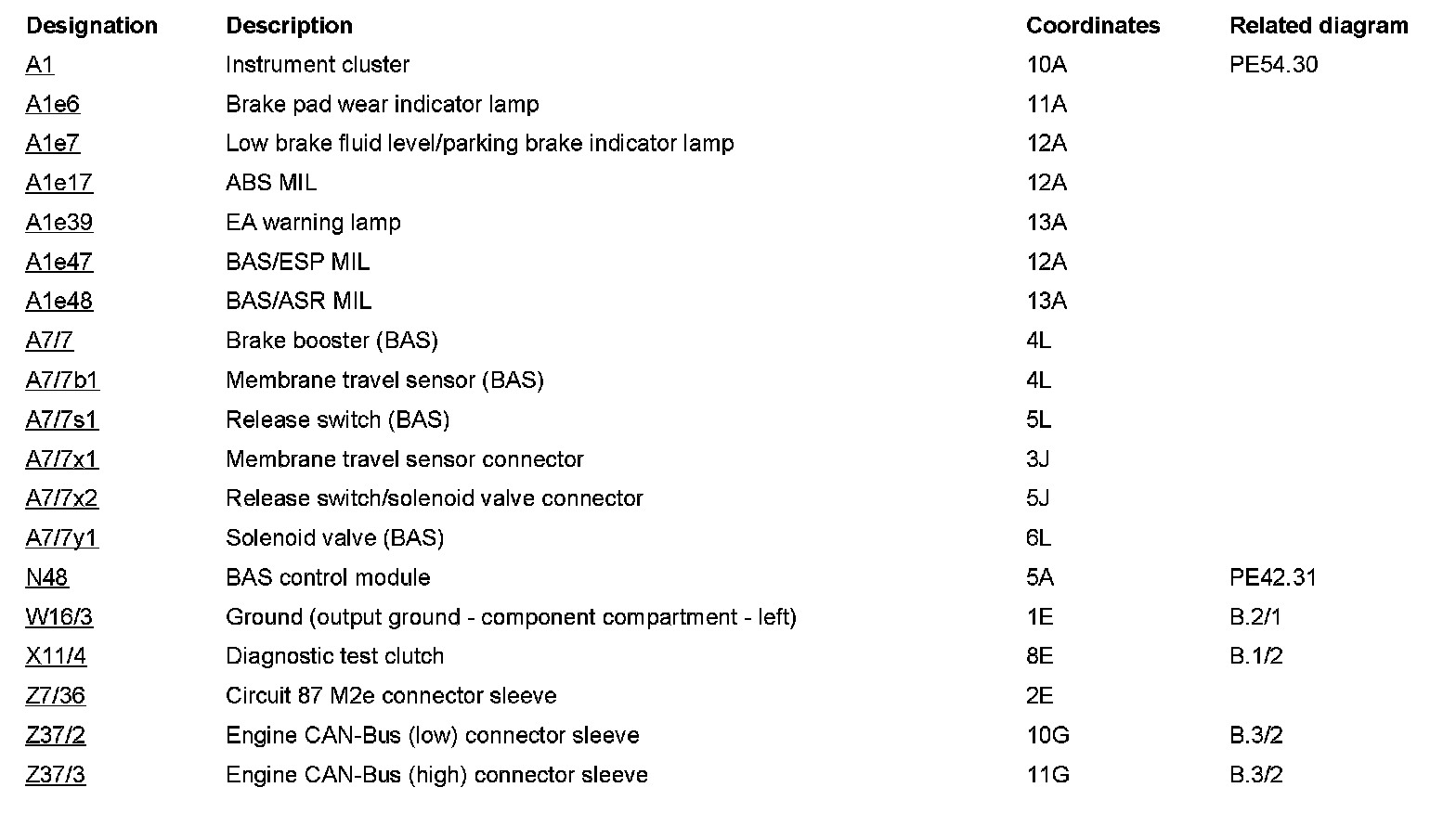

Component Description/Coordinates, A1 To Z37/3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
