Crankcase
Crankcase

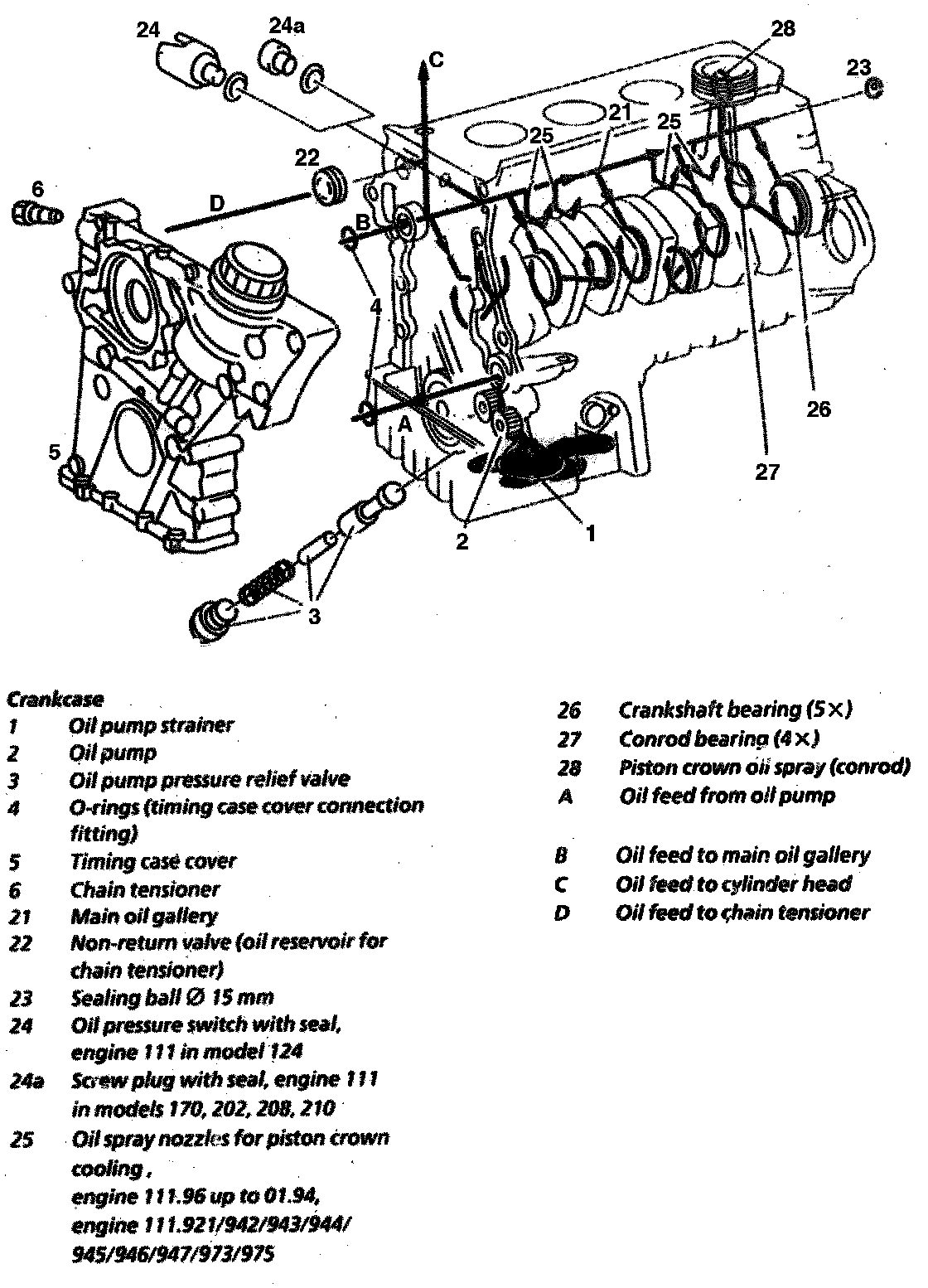

Crankcase Oil Flow Diagram (Part 1 Of 2):

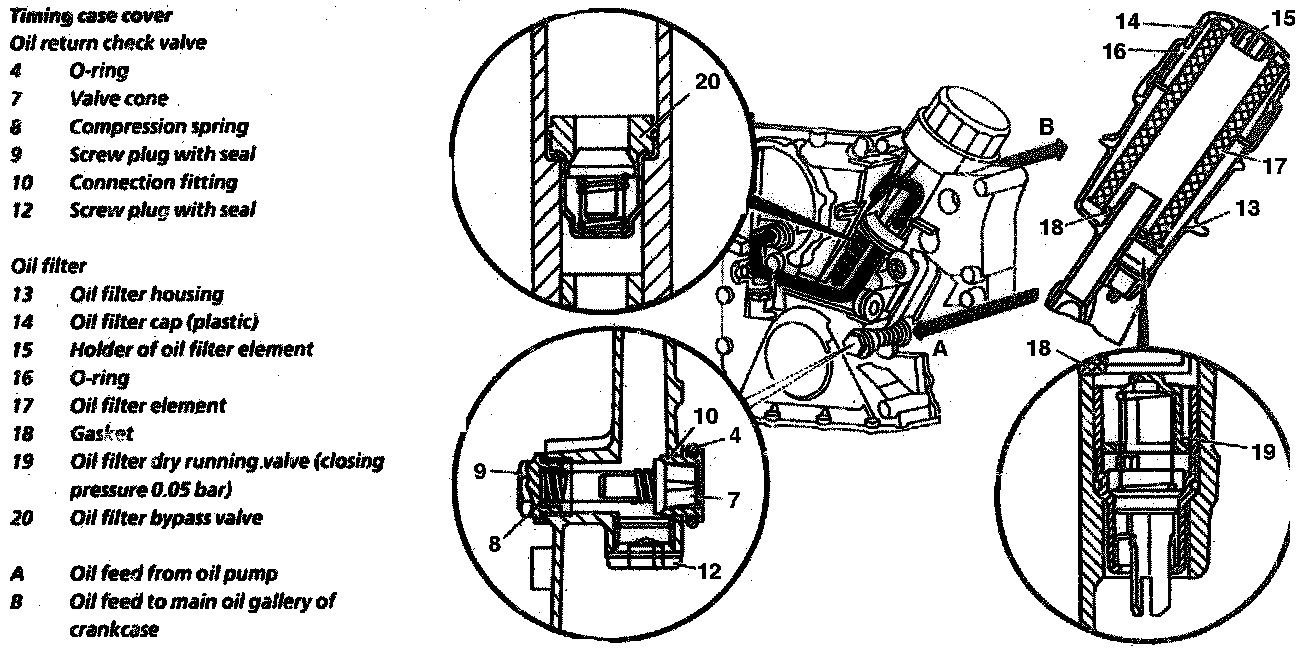

Crankcase Oil Flow Diagram (Part 2 Of 2):
