B2.5 Interior Compartment (Right)

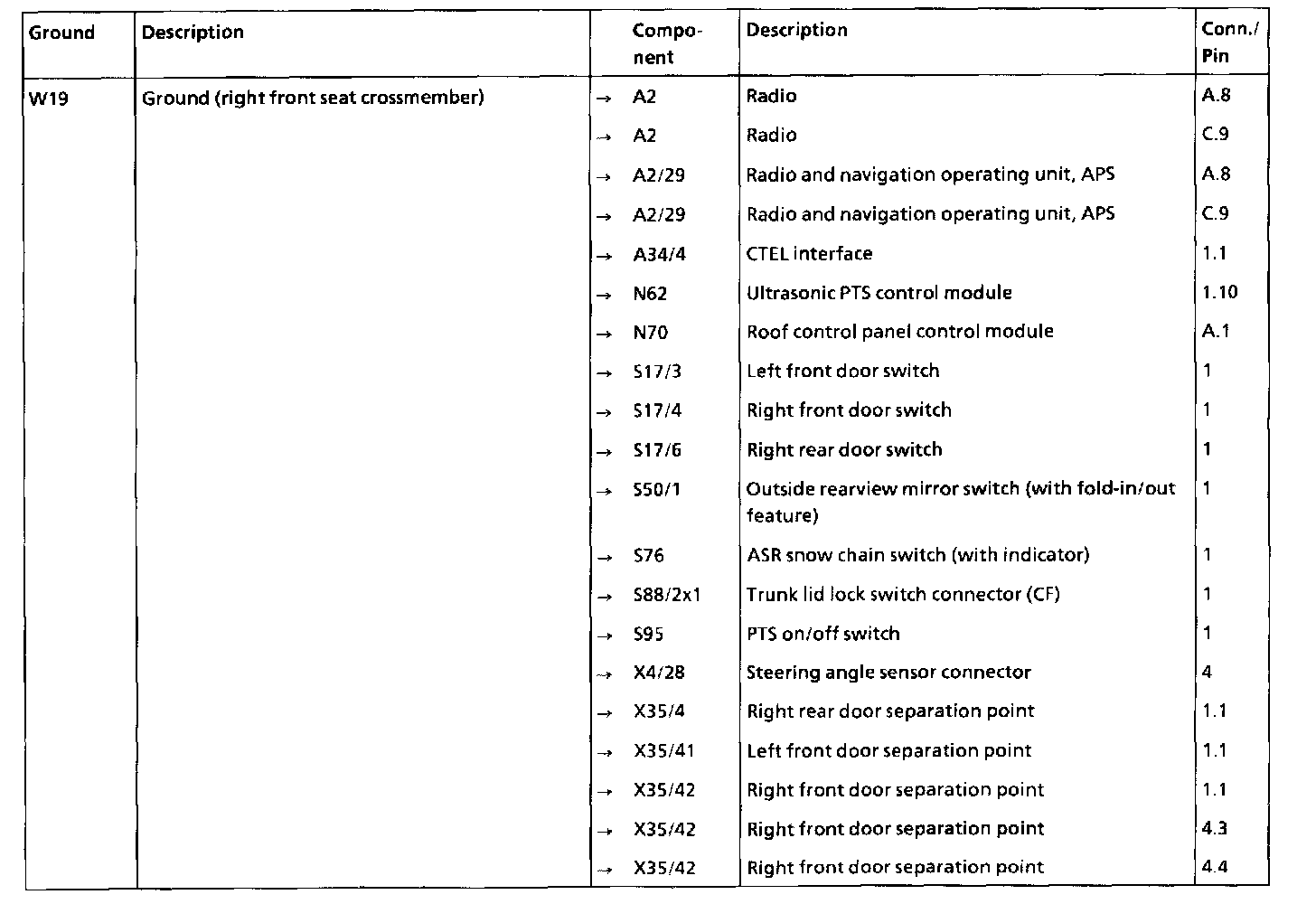

Arrangement and assignment of ground terminals, interior compartment (right)

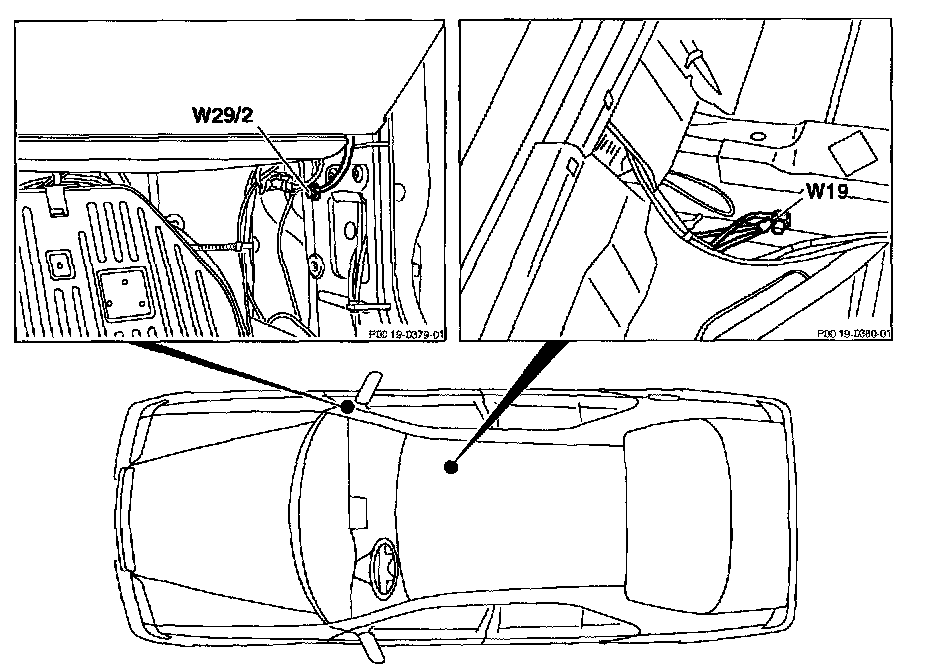

B2.5 Interior Compartment (Right), Ground Locations:
Connector ID
W19:
W19 - W29/2:

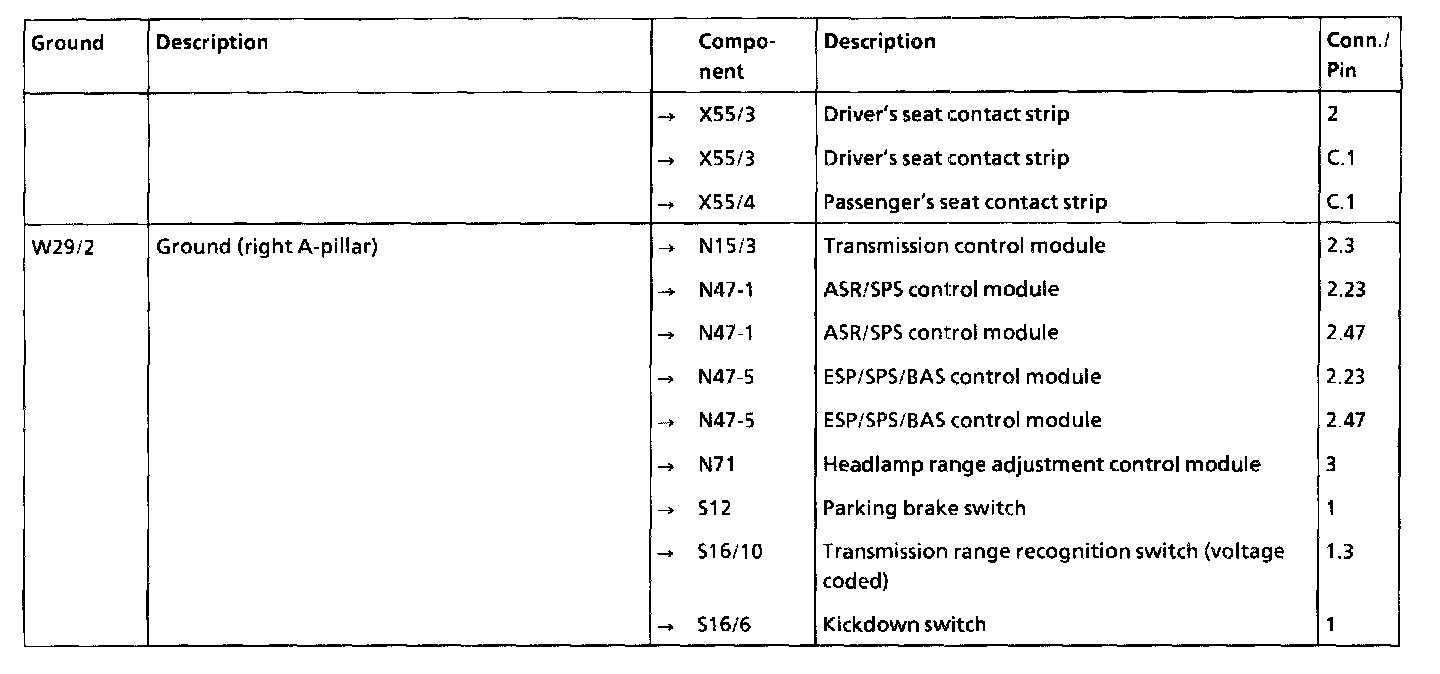

Arrangement and assignment of ground terminals, interior compartment (right)
Connector ID
