Heating and Air Conditioning

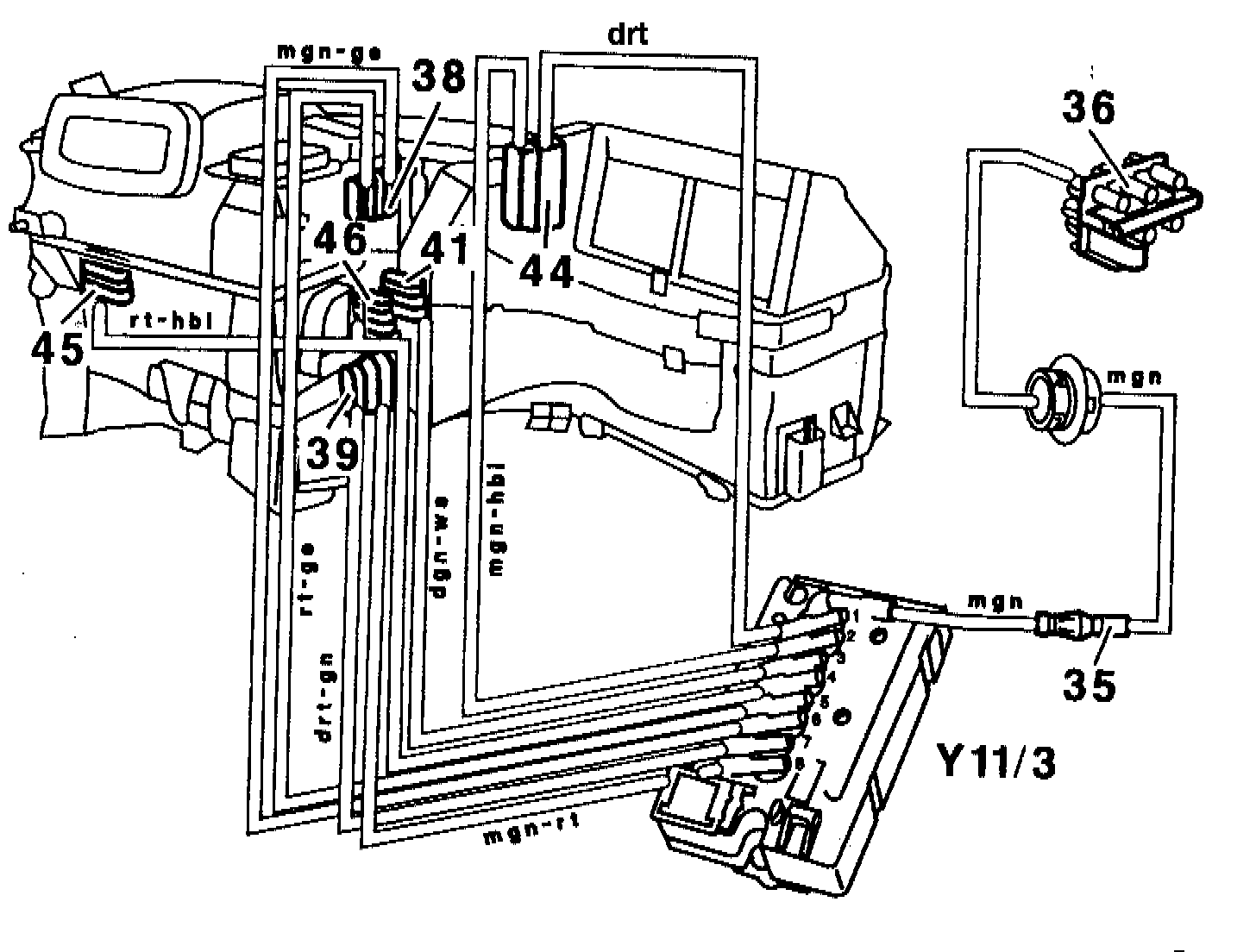

Automatic Climate Control:

35 Cockpit separation point
36 Vacuum valve block
38 Vacuum element for defroster outlet flaps
39 Vacuum element for footwell flaps
41 Vacuum element for center nozzle diverter flap
44 Vacuum element for fresh/recirculated air flap
45 Vacuum element for left center nozzle blend flap
46 Vacuum element for right center nozzle blend flap
Y11/3 Switchover valve block (8 connections)

Color Code:
bl = blue
hbl = light blue
drt = dark red
ge = yellow
mgn = medium green
gr = gray
rt = red
ws = white
sw = black
dgn = dark green
