Air Conditioning (Automatic) PE83.40-U-2000F

Air Conditioning (automatic) PE83.40-U-2000F
- with CODE (581a) Air conditioning (Automatic)

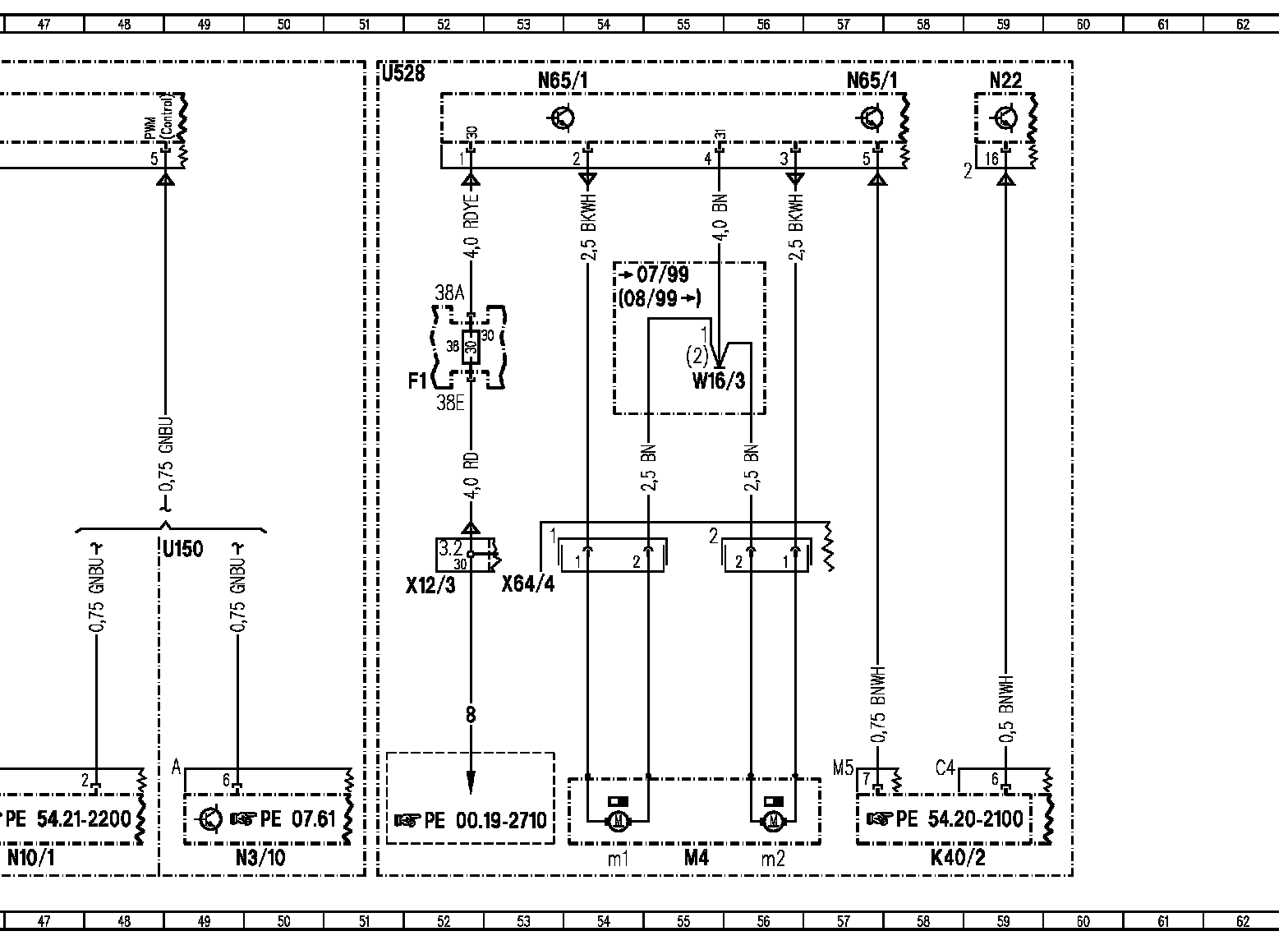

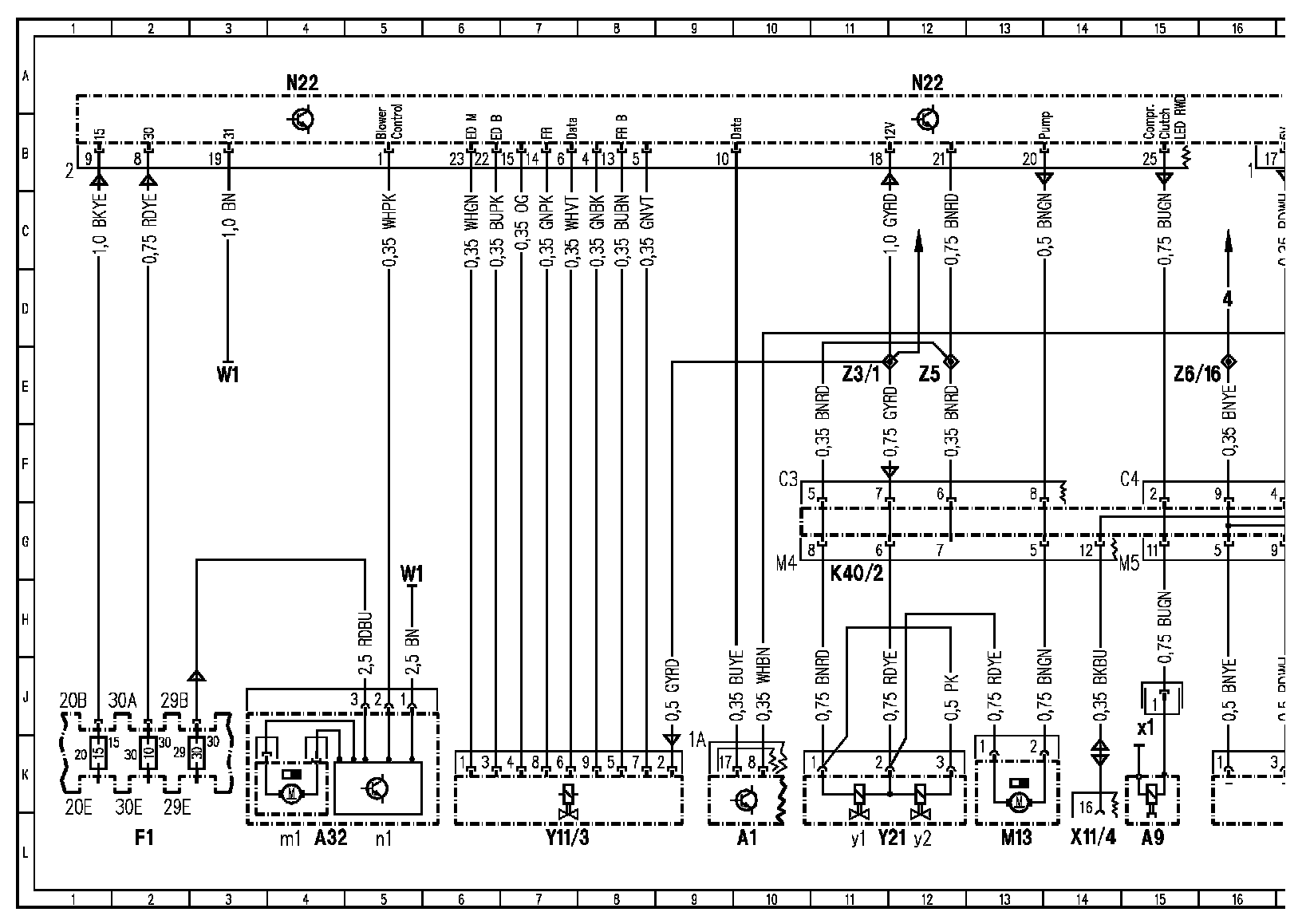

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

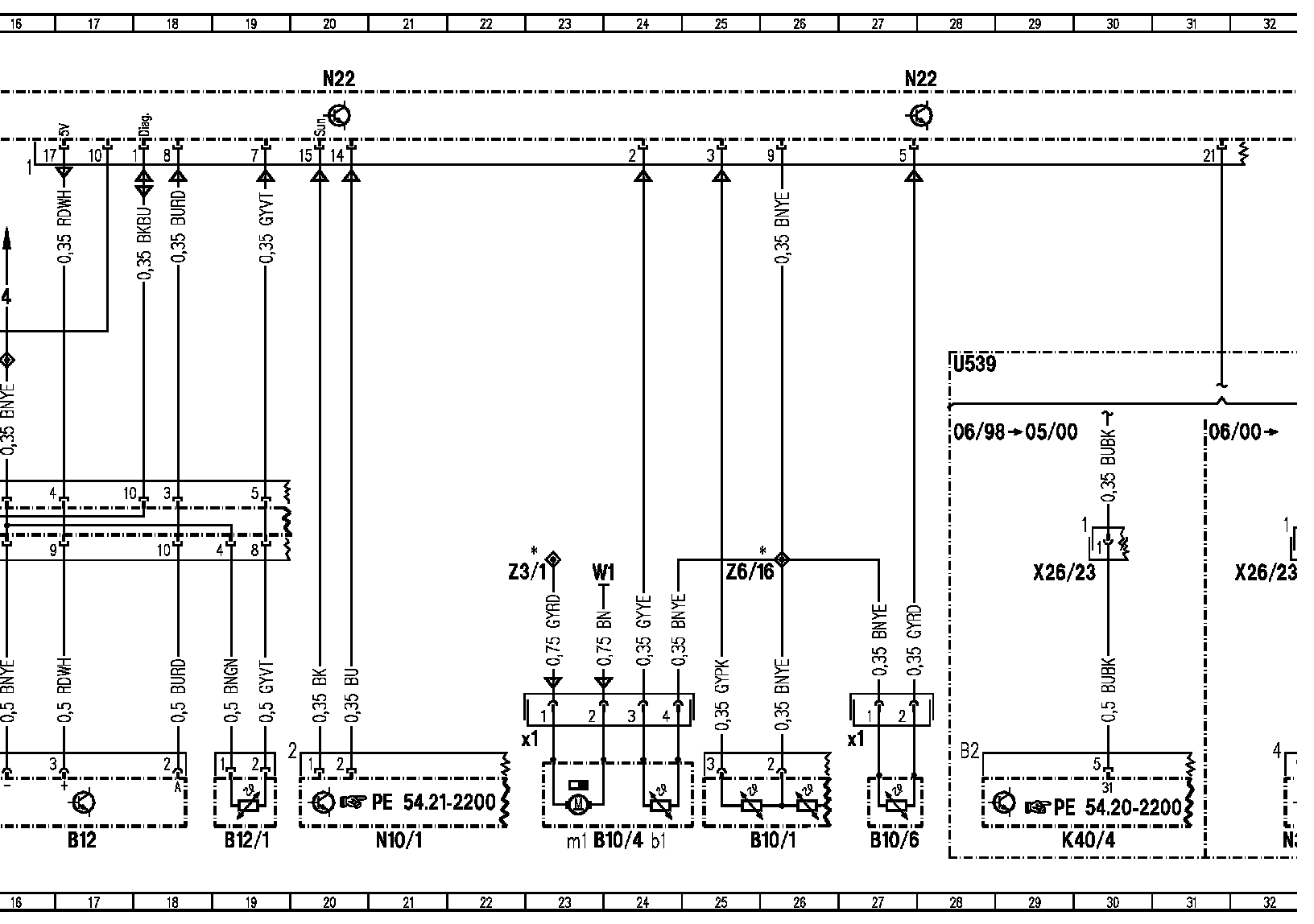

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

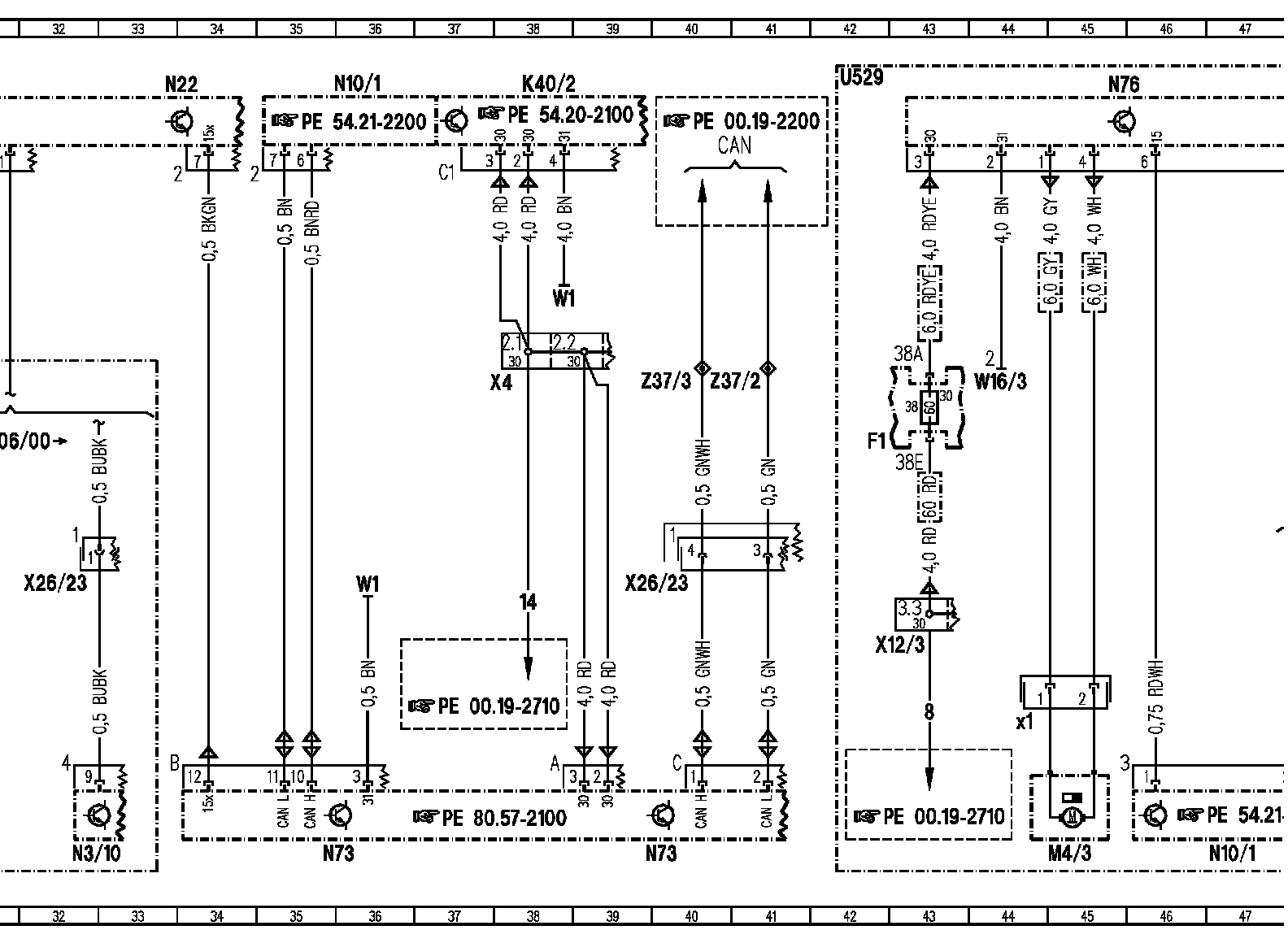

Wiring Diagram, Part 5:

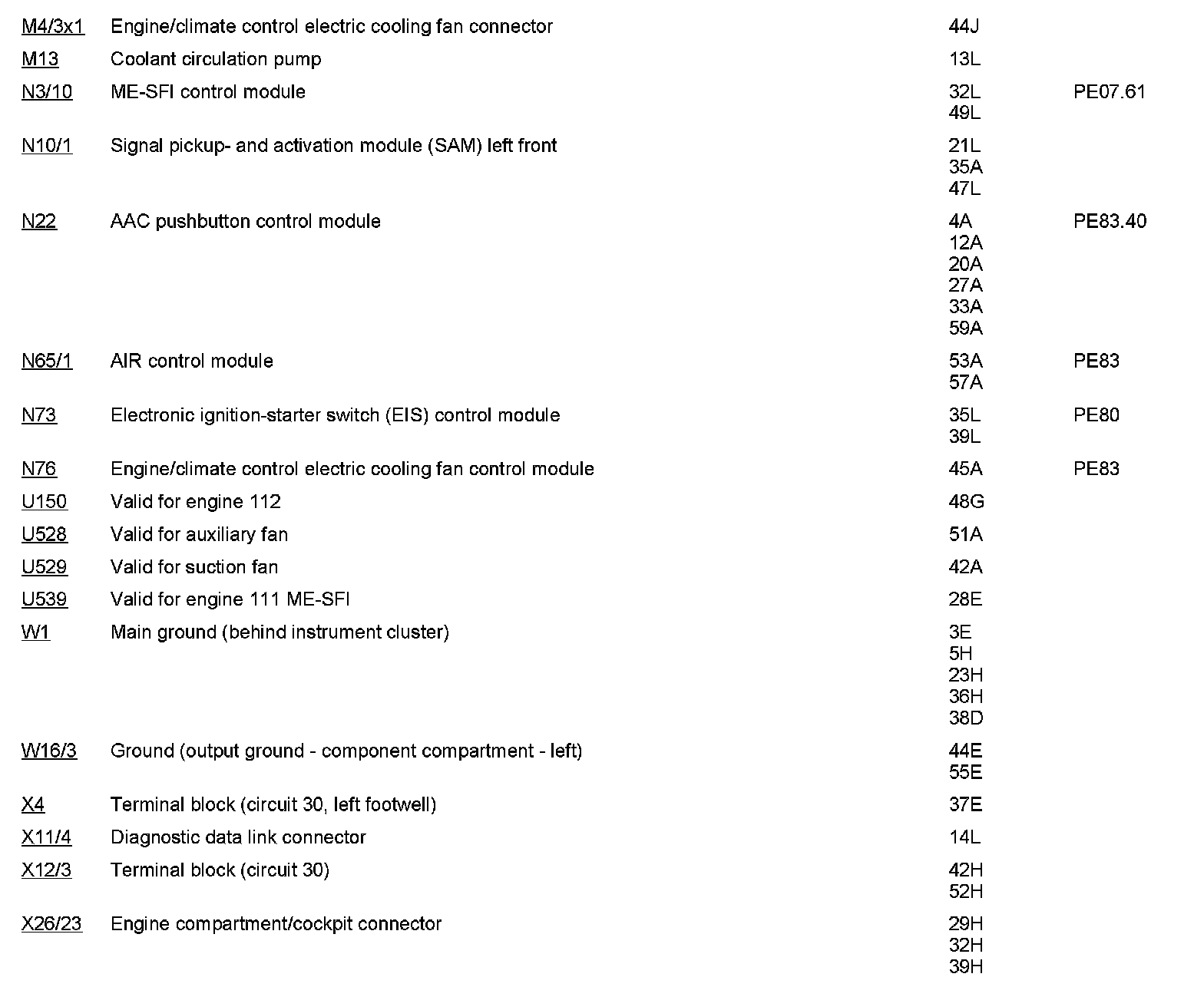

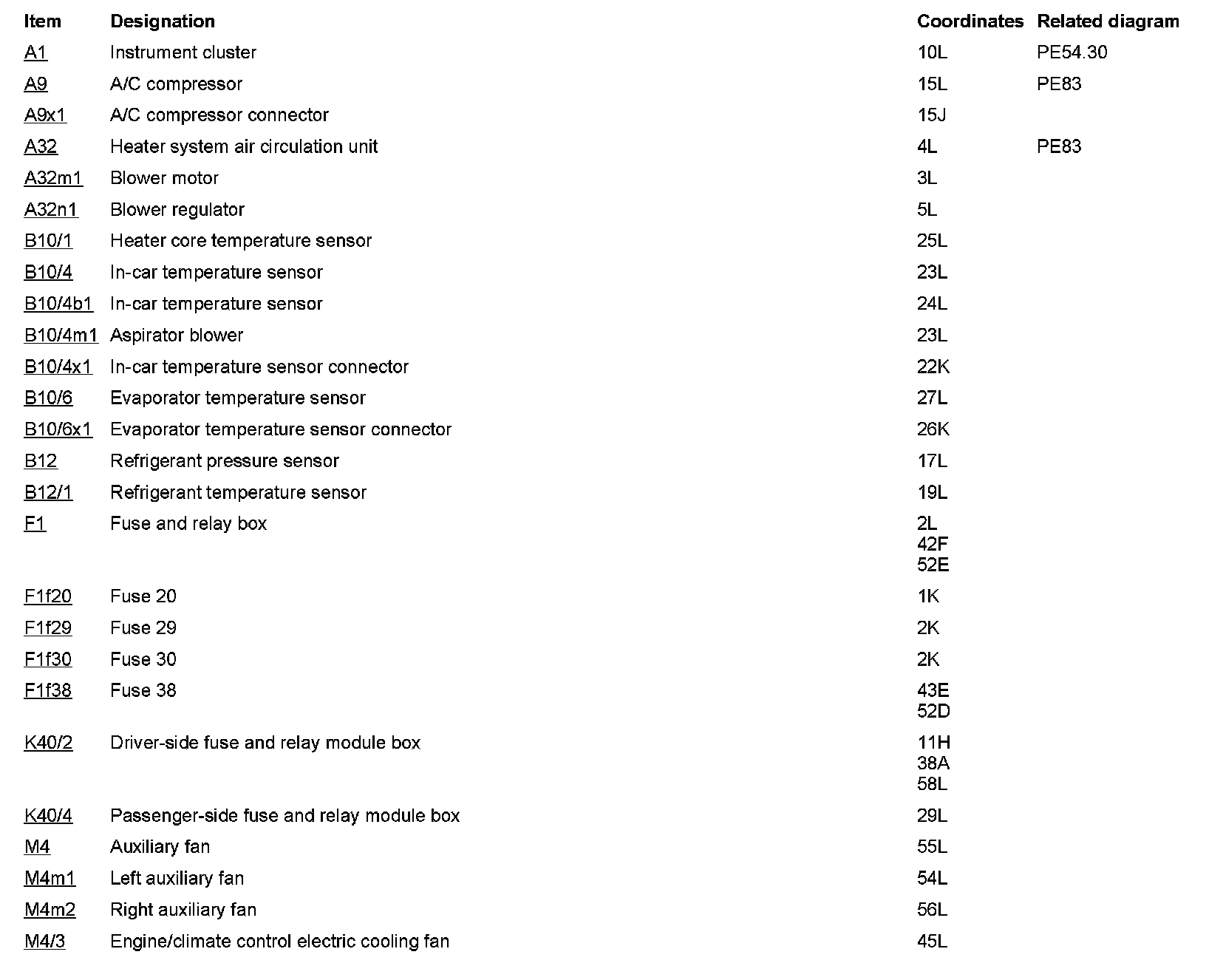

Component Description/Coordinates, A1 To M4/3:

Component Description/Coordinates, M4/3x1 To X26/23:

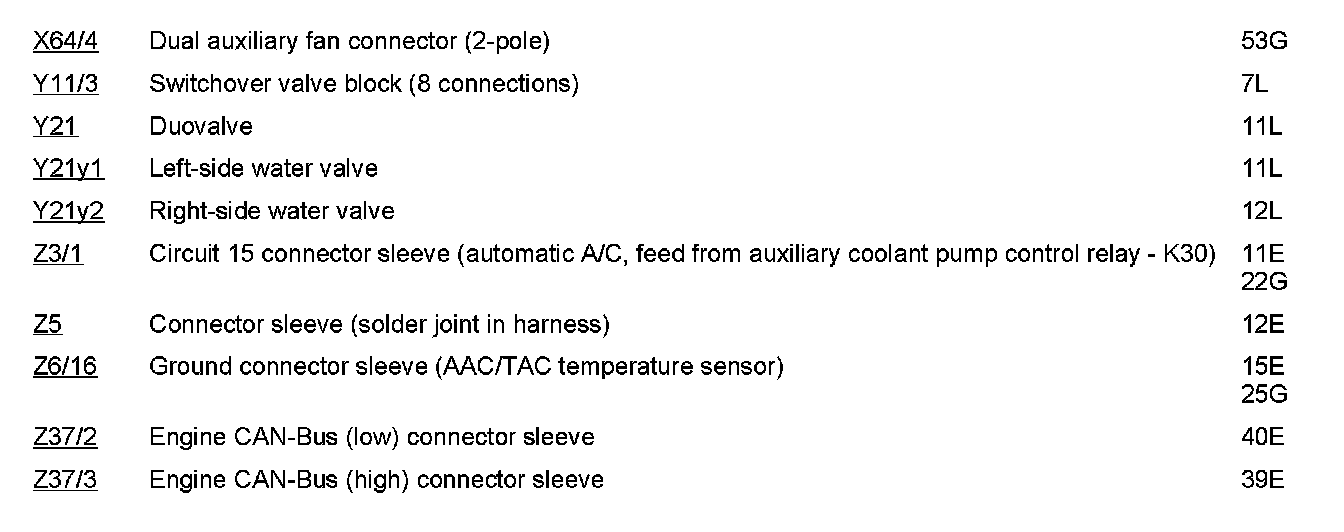

Component Description/Coordinates, X64/4 To Z37/3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
