Disassembling Instrument Cluster Housing

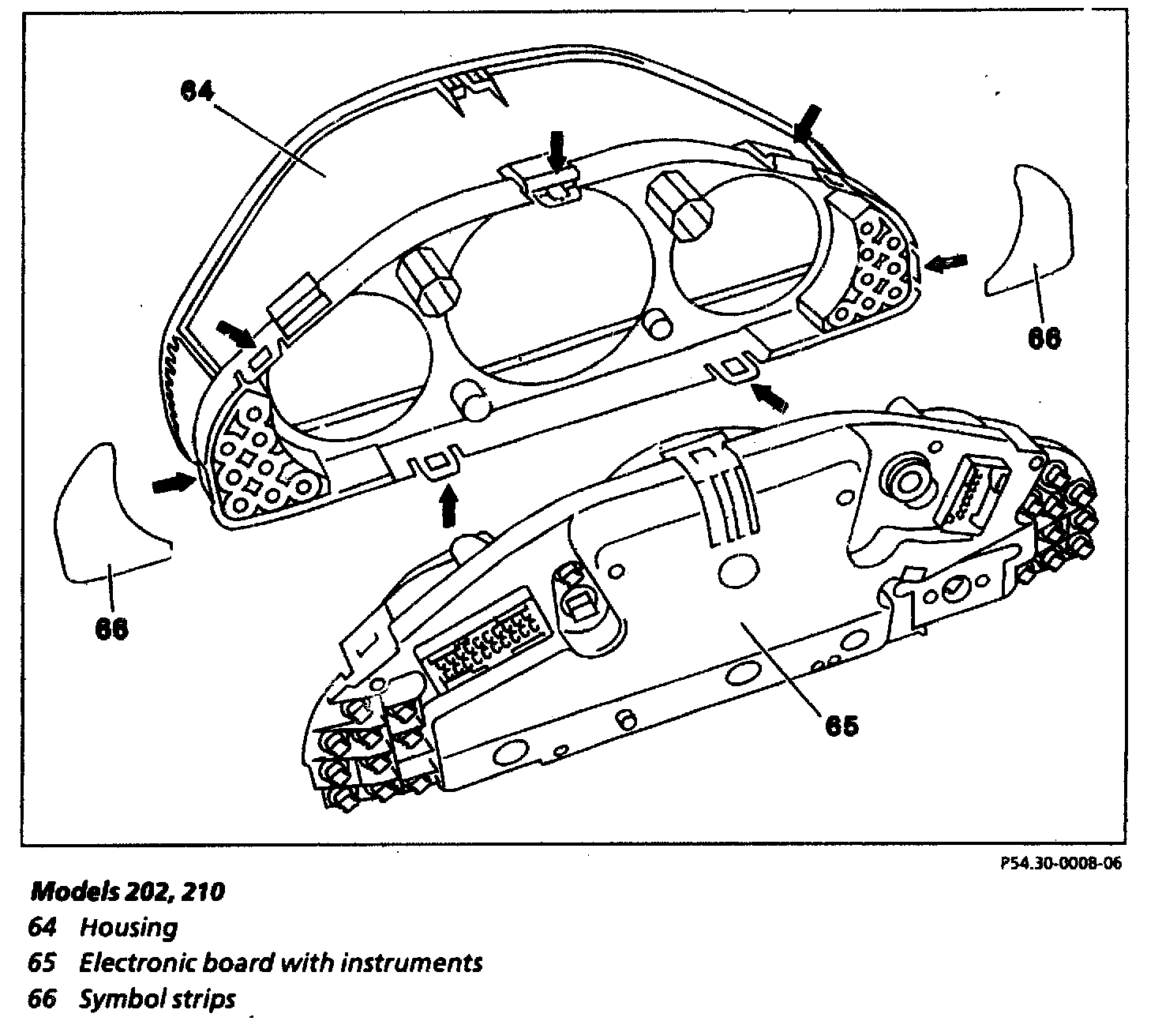

Models 202, 210:






Model 208:

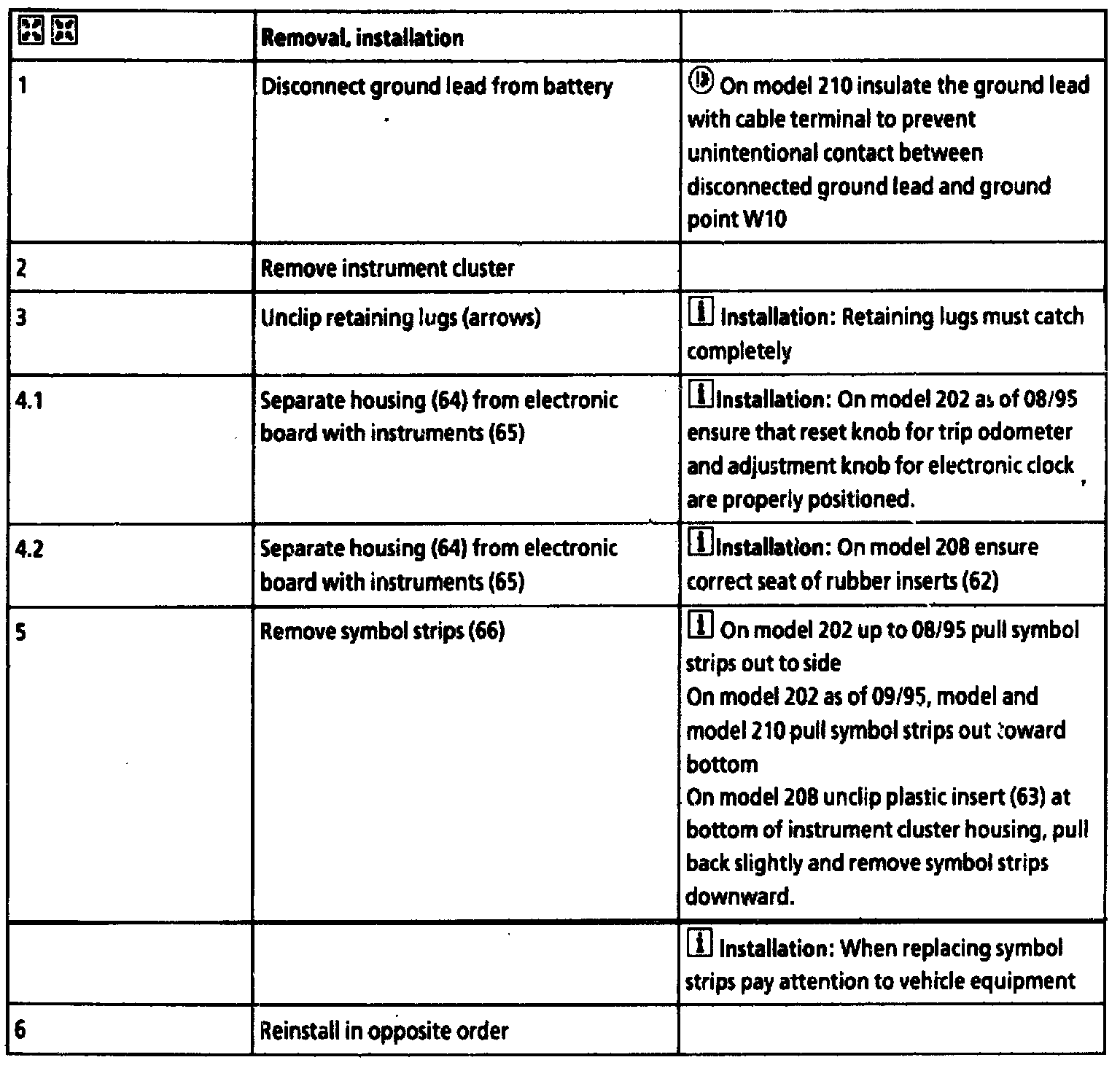

Removal/Installation, Steps 1 - 6:
