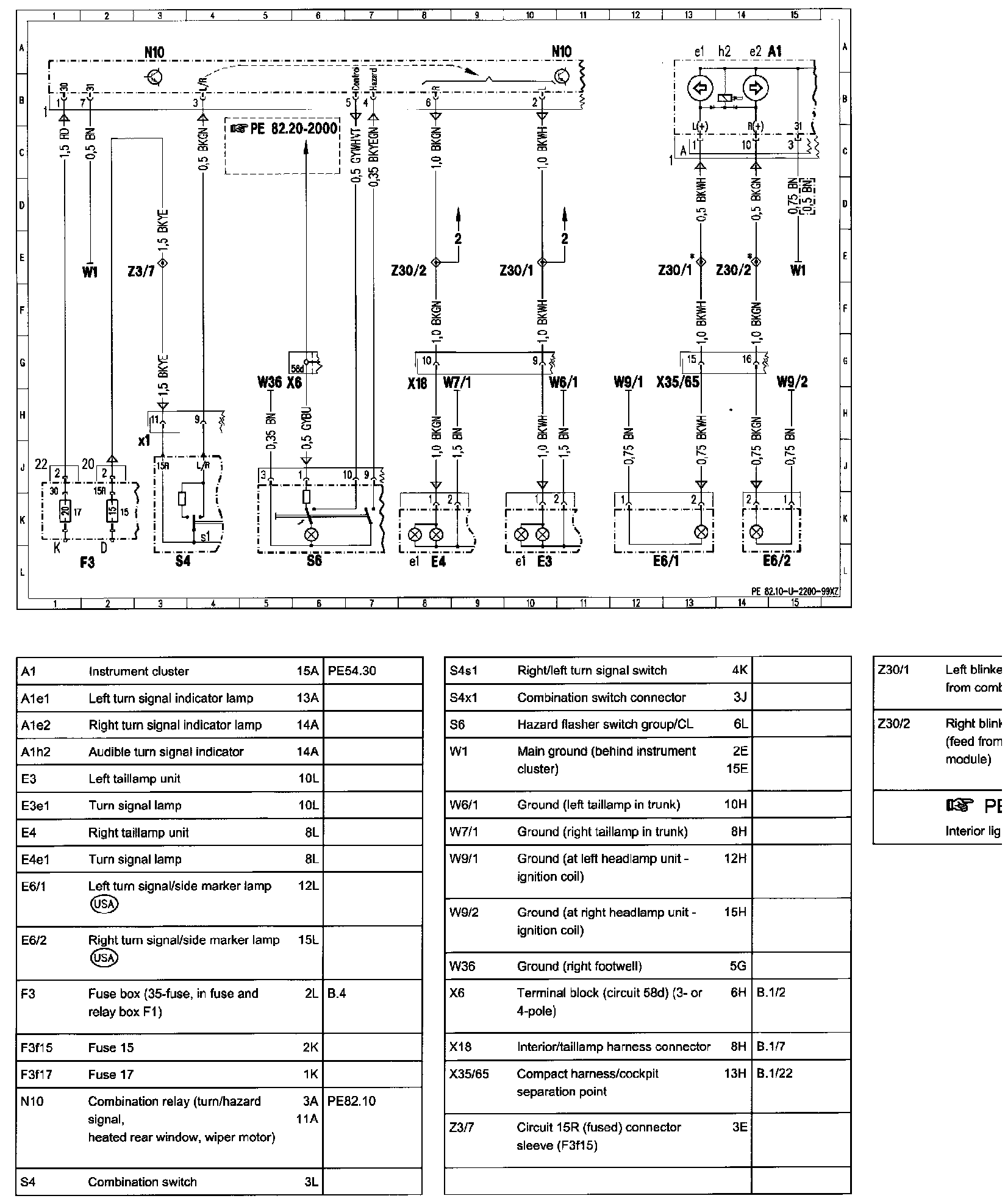

Turn Signal/Hazard Warning Lamps PE82.10-U-2200XZ
Turn Signal/Hazard Warning Lamps PE82.10-U-2200XZ
?BZPE82.10-U-2200-99XZ - Coupe:
