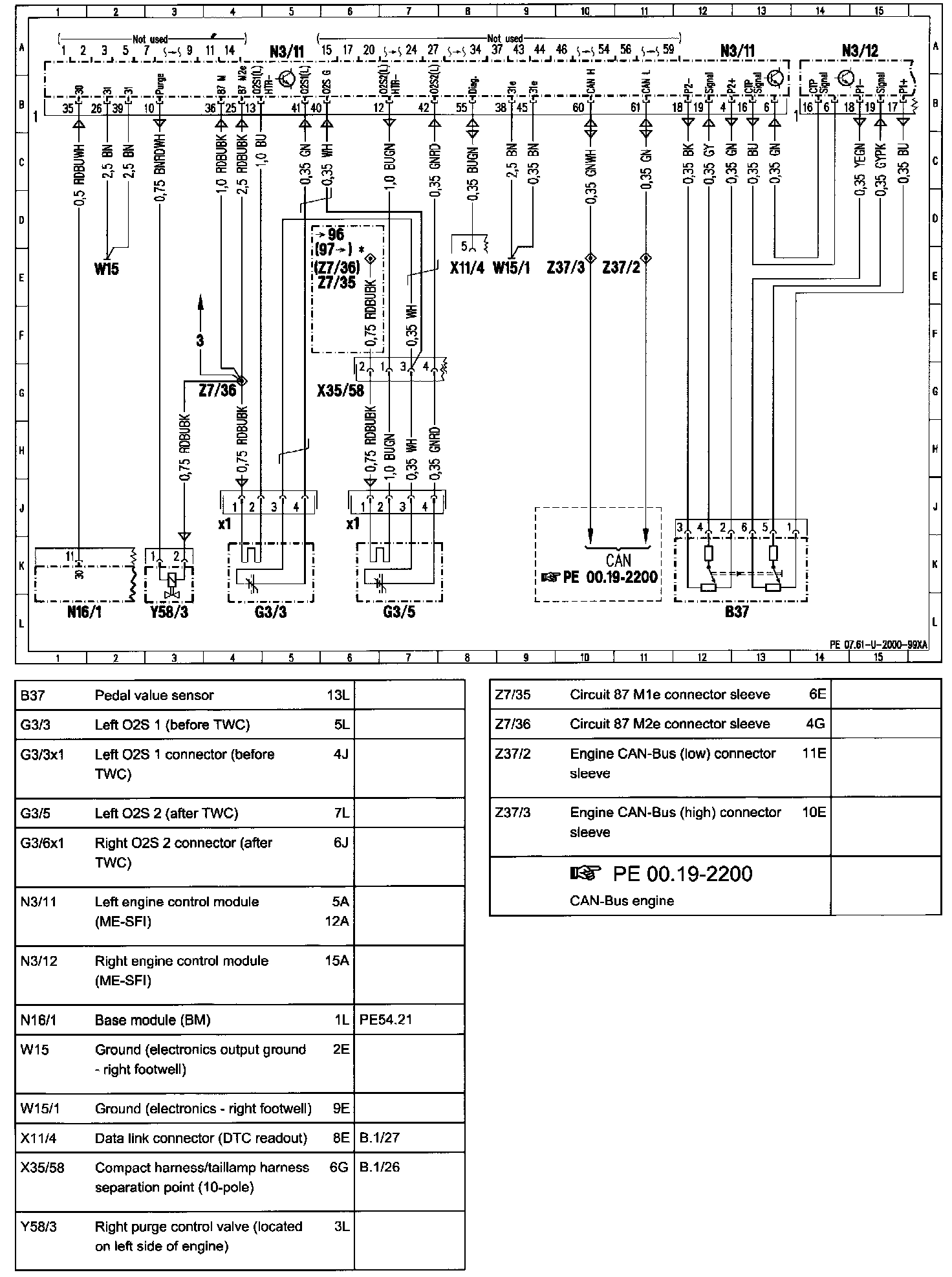

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XA (Left Bank)
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XA (Left Bank)
PE07.61-U-2000-XA - ME SFI:
