Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1999
>>
CL 600 (140.076) V12-6.0L (120.982)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

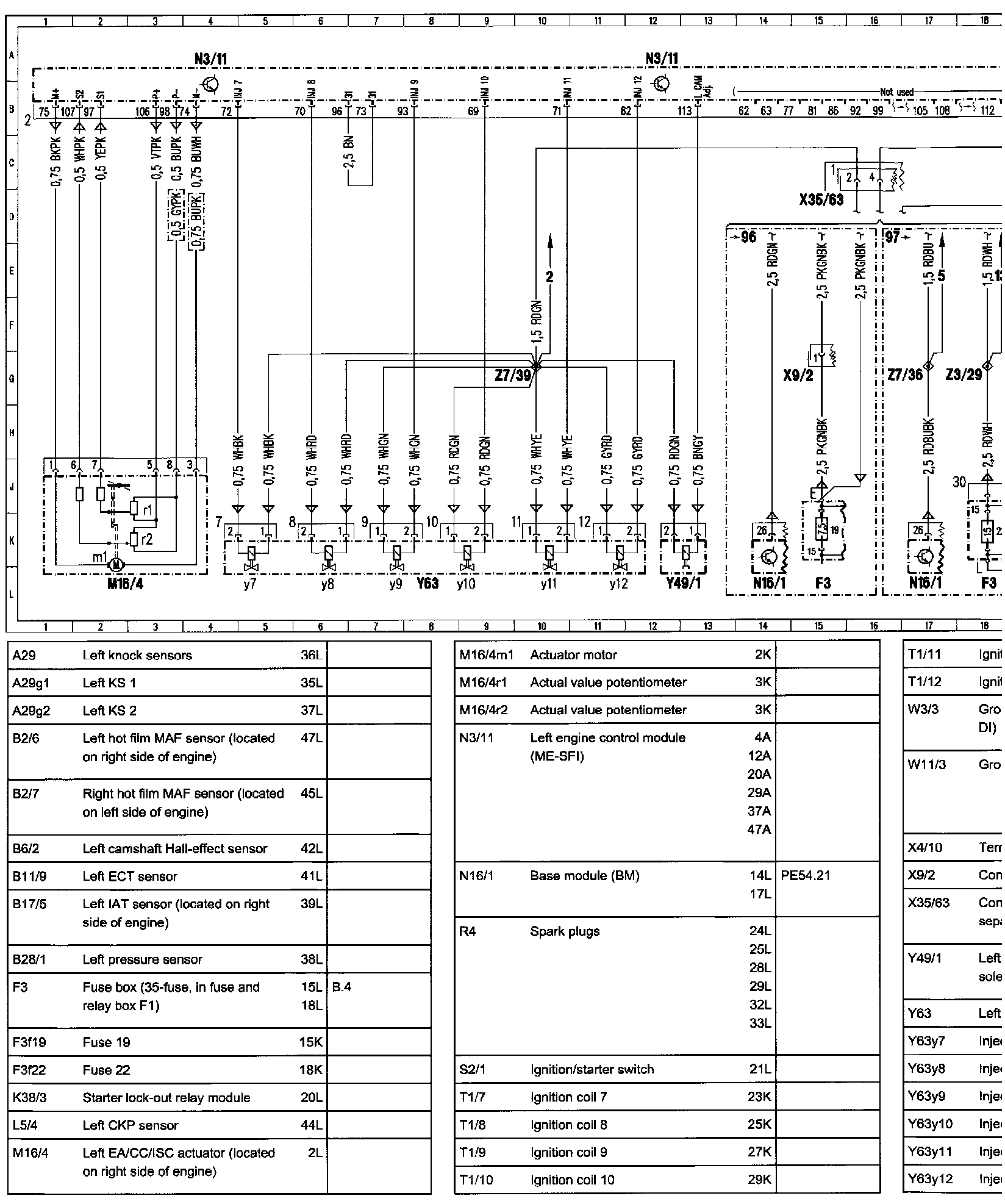

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XD (Left Bank)
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XD (Left Bank)
�� �o� .�� PE07.61-U-2000-XD - ME SFI:
