Alternator: Service and Repair

Preliminary work:
Poly V-belt slackened
Engine compartment panels removed
Front torsion bar unscrewed at side member






Ground cable at battery
disconnect, connect.

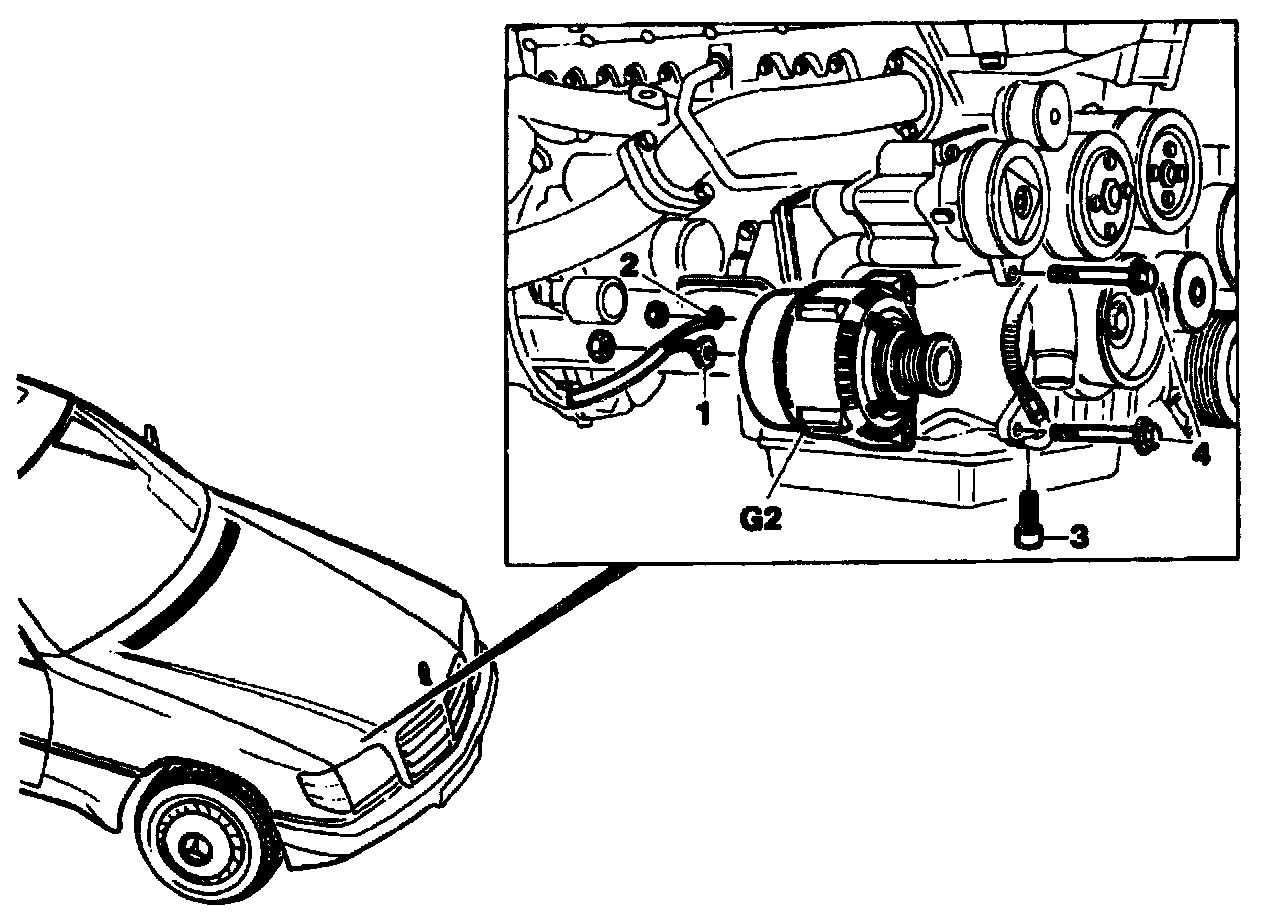

Electric wiring (1 and 2) at generator (G2)
disconnect, connect.

Screw (3) of automatic transmission oil line
unscrew, screw in.

Bolts (4)
unscrew, screw in.

Generator (G2)
remove downward, insert from below.
