Seats - Occupation Sensor Felt Through Upholstery: Overview
Date: February 1998Order No.: S-SI-MBNA-91/32
Supersedes: -
Group: 91
SUBJECT:
MODEL 140.070/076 AS OF MY 1998
RELOCATING FRONT PASSENGER SEAT OCCUPIED SENSOR (B48)
As of model year 1998 the front passenger seat occupied sensor (B48) comprises in addition automatic child seat recognition feature. In case of customer complaint, that part of the sensor (a rigid box) can be felt through the seat cushion upholstery, the sensor box can be relocated further forward in the seat cushion.
Included in this SI are Work Instructions no. 392 describing the relocation procedure.

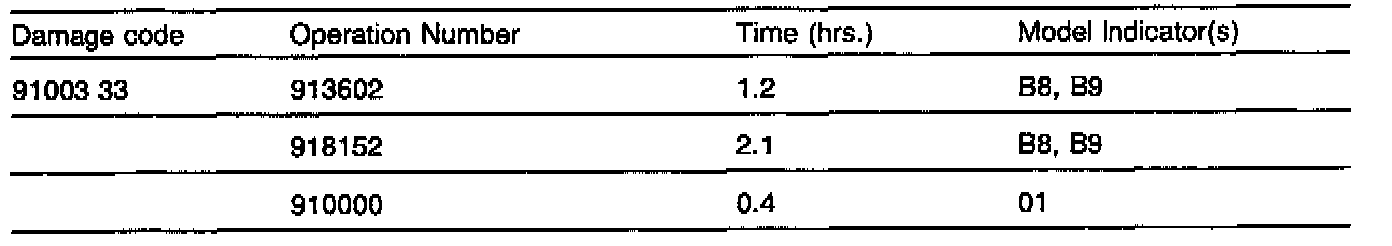

Recommended Labor Time
