Replacing Heater/Ventilation Dust Filter

Replacing dust filter for heating/ventilation










1 Remove cover panel below instrument panel

NOTE: If automatic air conditioning (Auto AC) fitted, a combination filter is used.

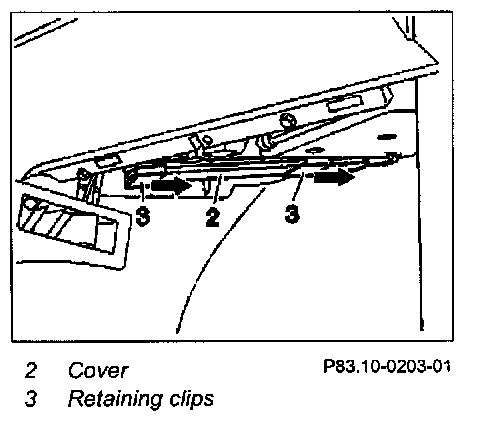

2 Take off cover (2)
- Push the two retaining clips (3) in direction of arrow for this purpose.

3 Pull dust filter (1) down and out (arrows)
4 Install in the reverse order.
