Body/Frame - Dedicated Fixture Set

Date: July 1998

Order No.: P-SI-MBNA-58/83B, 60/05

Supersedes: S-SI-MBNA-58/83A, November 1995

Group: 58, 60

Revision: Additional fixture sets added and prices revised.

SUBJECT:
MODELS 210.082/265/282 COMPLEMENTARY DEDICATED FIXTURE SETS

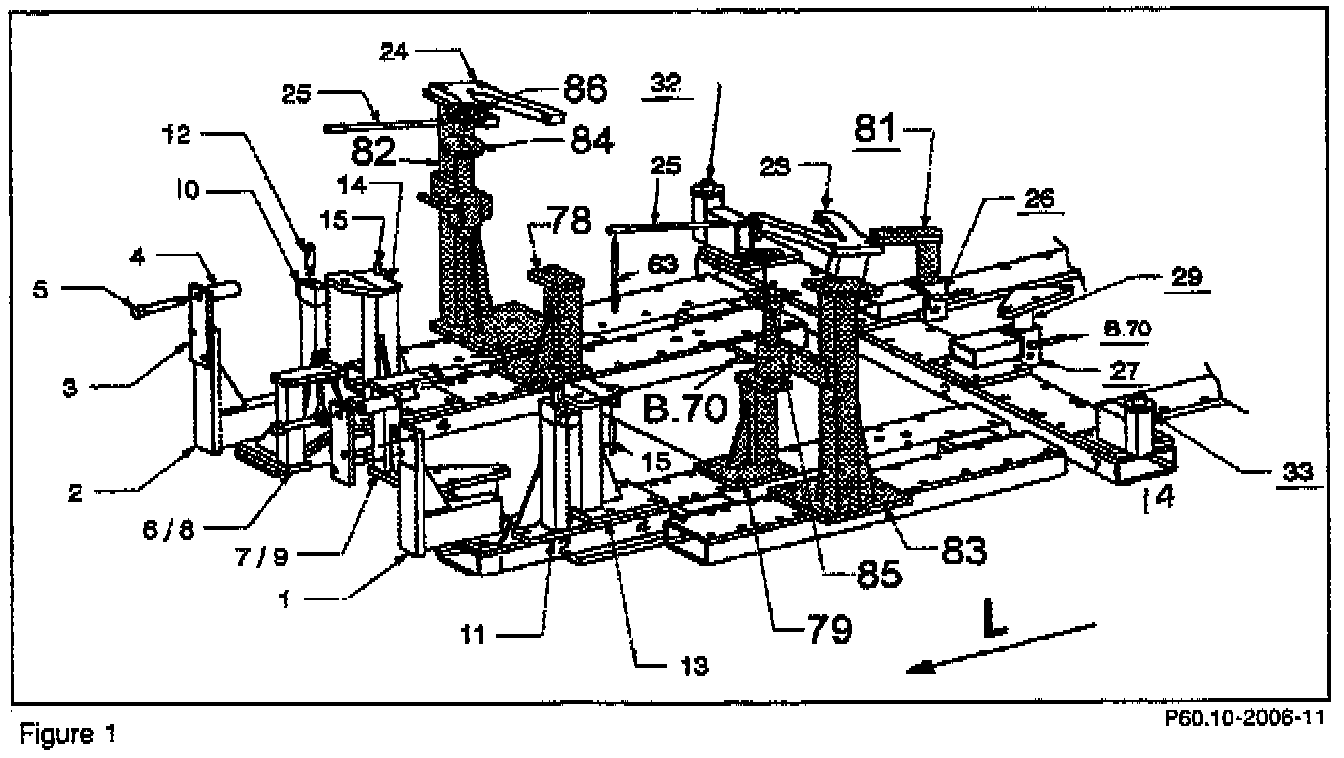

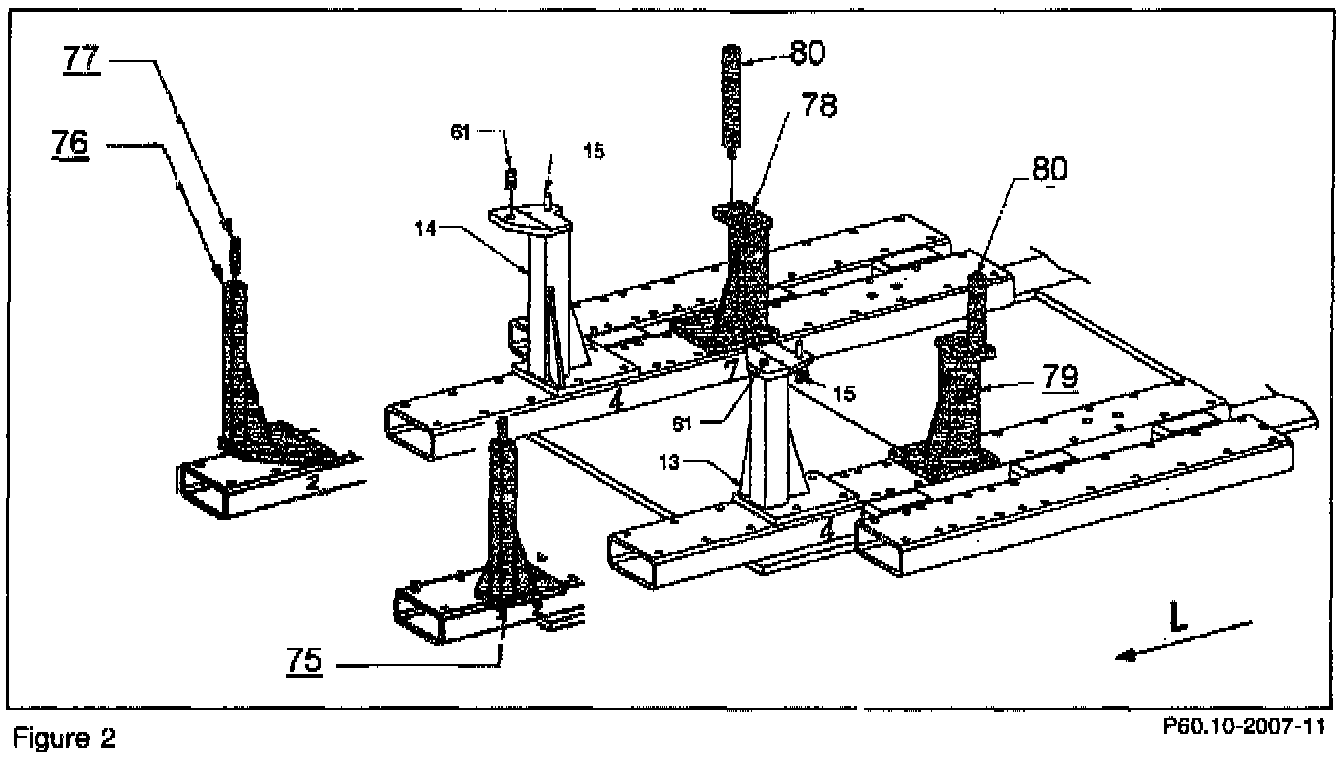

A complementary dedicated fixture set from Celette, used for collision repair, is available for models 210.082/282 (4MATIC) (fixtures 75-86, Figures 1 and 2). This is a complementary set to be used with the existing model 210 fixture sets 7210.300, 7210.310 or 7210.330.





Due to a modification in the rear body crossmember of models 210.265/282 (wagon), a complementary set of revised bolts (71, Figure 3) is now available. This is a complementary set to be used with the existing model 210 fixture sets 7210.300, 7210.310 or 7210.330.

These sets are now available through the Mercedes-Benz Standard Service Equipment Program.

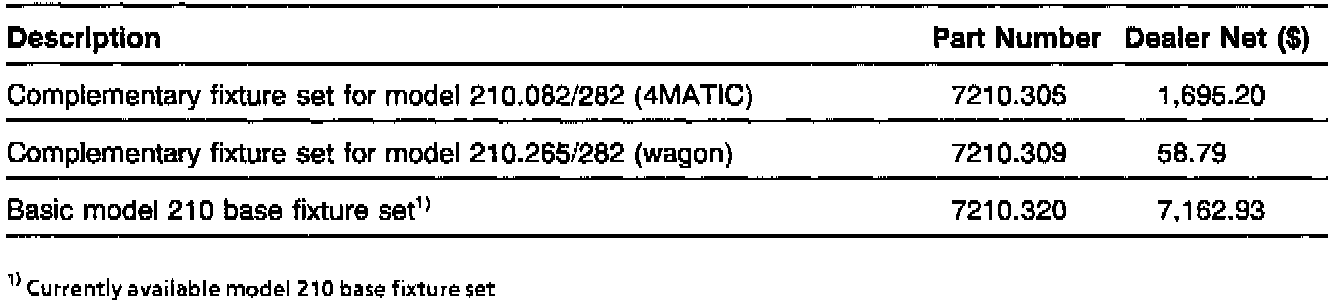

Ordering Information:

Dealers who wish to place an order via the Mercedes-Benz Standard Service Equipment Program should contact Celette directly at:

Celette Inc.
30962 San Benito Court
Hayward, CA 94544

Tel. 1-800-CELETTE





Parts Information
