Work Instructions
Group: 91.60Number: 412
Date: November 1998
SUBJECT:
MODEL 210 SEDAN, MODEL YEAR 1999
CURTAIN (WINDOW) AIRBAG FASTENING CLAMP
A. Inspection of curtain (window) airbag fastening clamps (right and left curtain [window] airbags)
B. Replacement of curtain (window) airbag(s)
A. Inspection of curtain (window) airbag fastening clamps (right and left curtain [window] airbags)
1. Remove ignition key.
2. Remove both C-pillar panels (refer to WIS, AR68.30-P-4490).
3. Inspect the fastening clamp (arrow, Figure 1) between the gas generator and window airbag:
Check the clamp for looseness, if the clamp can be manually rotated (by hand, without using excessive force) the curtain (window) airbag unit must be replaced.
B. Replacement of curtain (window) airbag(s)
1. Remove headliner (refer to WIS AR68.30-P-4300).
2. Replace curtain (window) airbag (refer to WIS, AR91.60-P-0693).
3. Install components in reverse order of disassembly.
4. Erase any DTC's that may have been set using the HHT.
Parts Information
Important Parts Notes:
If a curtain (window) airbag requires replacement following the inspection, the airbag will need to be ordered from the facing PDC. The curtain (window) airbag will be delivered within 48 hours of the order being placed. In that case, the client will be provided with alternate transportation if desired.

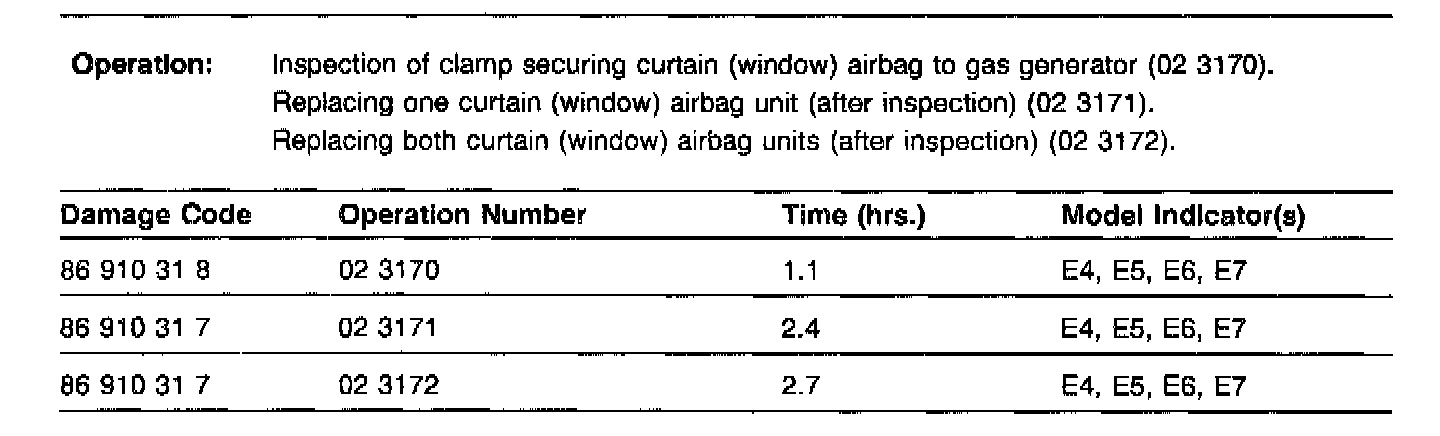

Warranty claim submission information
Note:
Please adhere to the shipping instructions for return of the curtain (window) airbag unit (also refer to section 10-3 of the Warranty Policies and Procedures manual for shipping instructions of hazardous materials). Upon receipt of your parts return report, ship the requested part to Warranty Inspection.
Warning!
Special shipping Instructions
Airbags are a regulated hazardous material when offered for transportation. Therefore, shippers are responsible for following the rules and regulations in 49 CFR (U.S. DOT's Hazardous Materials Shipping Regulations) when tendering airbags for transport. For ease of preparing your shipping papers, the airbags covered by this work instruction are described as follows:
Proper shipping name: Compressed gas, NOS (argon, helium)
Class or division: 2.2
UN or ID no: UN 1956
Packing group: Not applicable
Packing instructions
(Air shipments only): 200
Authorization: EX-9605238
Please note that it is a 49 CFR requirement to include the Competent Authority Approval (CA) "EX9605238" number on the bill of Lading (if shipped by ground) and in the authorization column of the "Shipper's Declaration for Dangerous Goods" if shipped by air.
Packaging:
Efforts must be made to ship return airbags in the same properly labeled and marked carton in which they were received. However, if this carton is not available or no longer suitable for shipping, please refer to 49 CFR for the appropriate packaging requirements. Generally, airbags with a "NonFlammable Gas" classification may be packaged in strong outer fiberboard boxes with sufficient inner packaging material to protect the freight. It is important that shippers make sure that the airbags are well cushioned and are not "loose" (moving around) within the outer package.

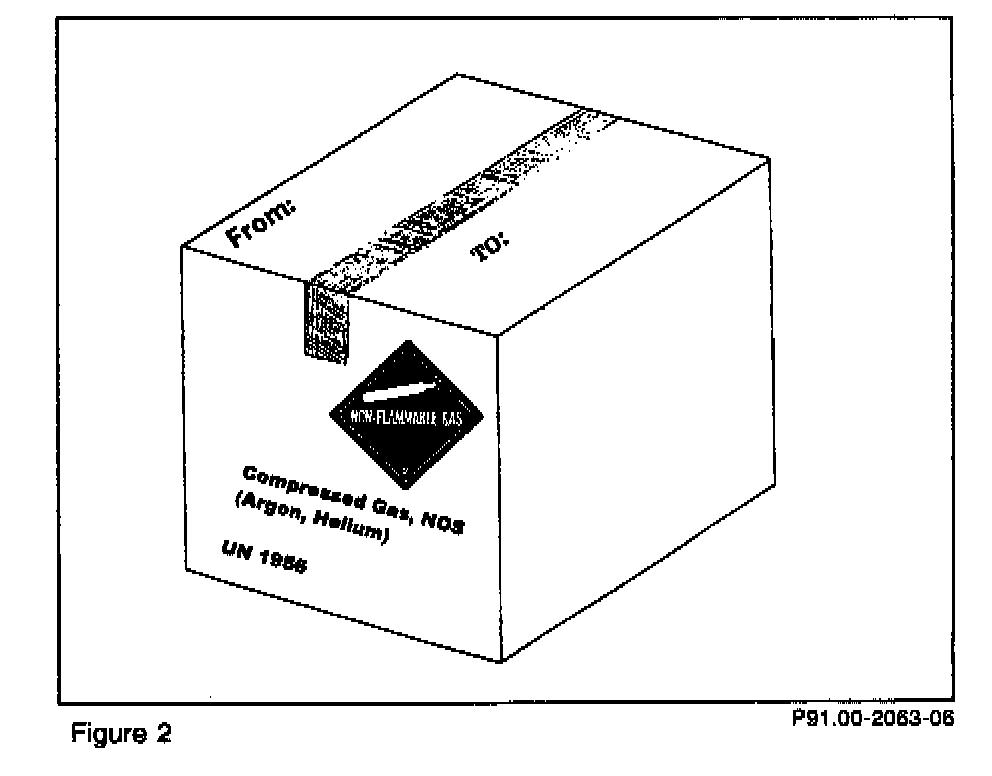

Labeling and Package Marking (refer to Figure 2 for proper labeling). Hazardous materials shipping labels (that is, the" Non-Flammable Gas" label) may be purchased from your label supplier.

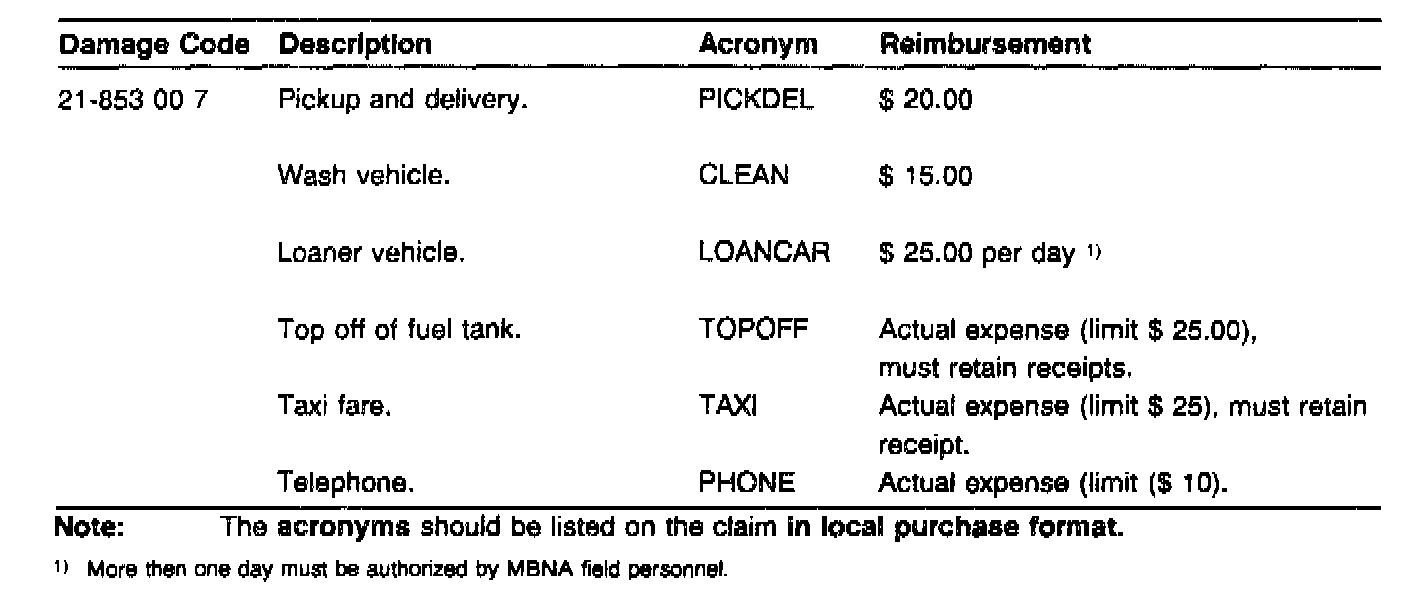

Associated Warranty Claim Submission information
Note:
A separate additional claim is required for reimbursement of customer care related measures.
