Antenna: Locations

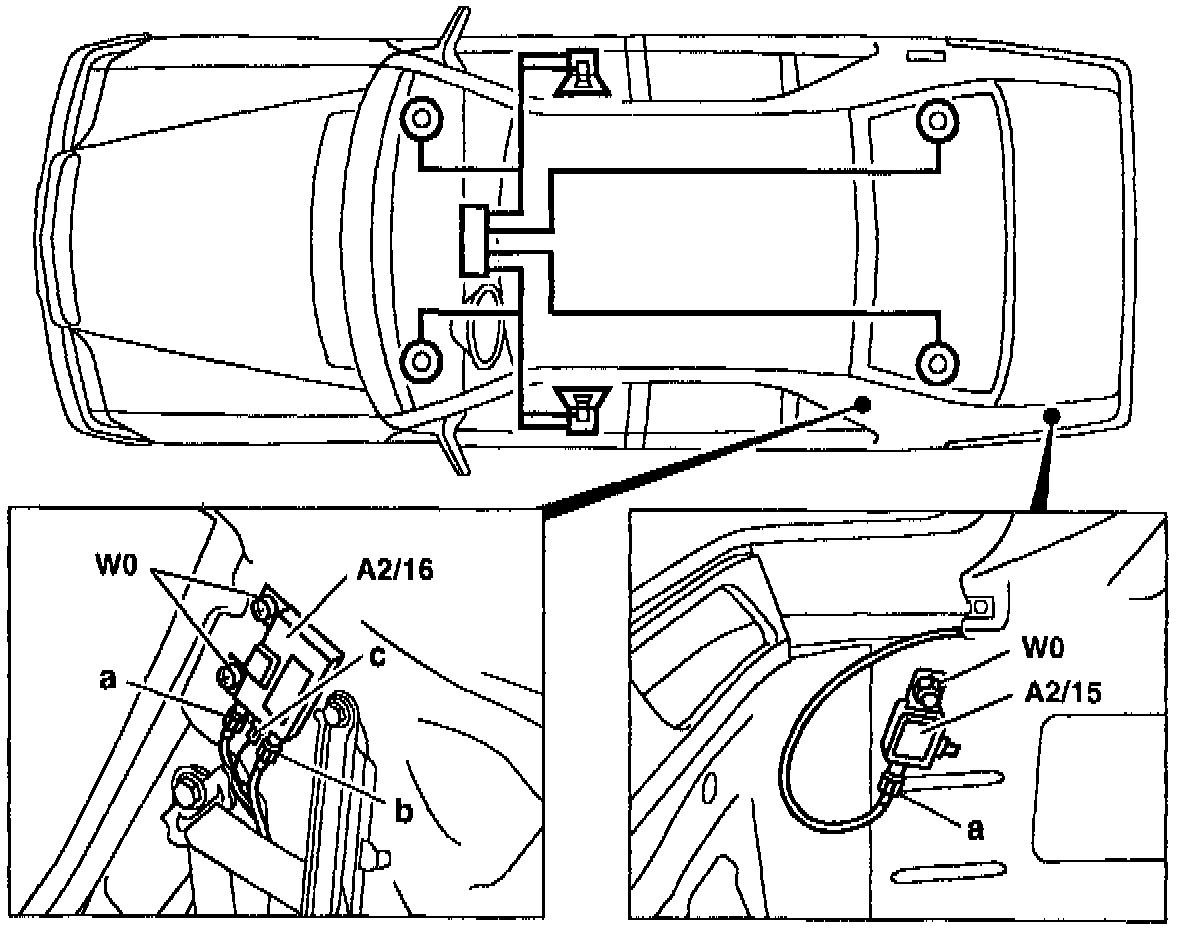

With Integrated Bumper/Rear Window Antenna System:




A2/15 Bumper FM antenna amplifier
A2/16 Rear window Am antenna amplifier
W0 Ground
a RF antenna cable and voltage supply for A2/15
b RF antenna cable to radio (A2)
c Control wire from radio

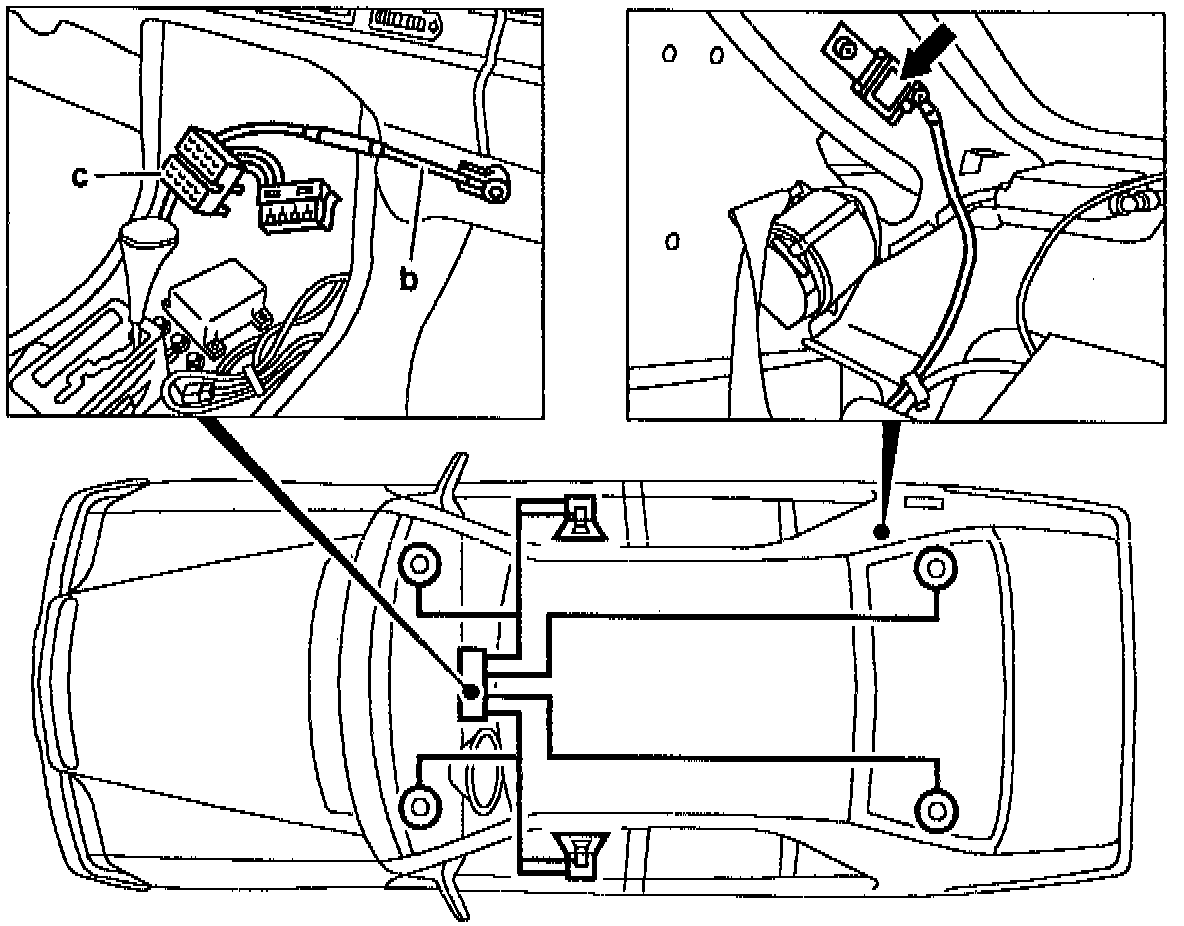

Arrow Noise suppression capacitor
b RF antenna cable to radio (A2)
c Control wire from radio
