Electronic Compass, With APS

Ground lead on battery
disconnect, connect.

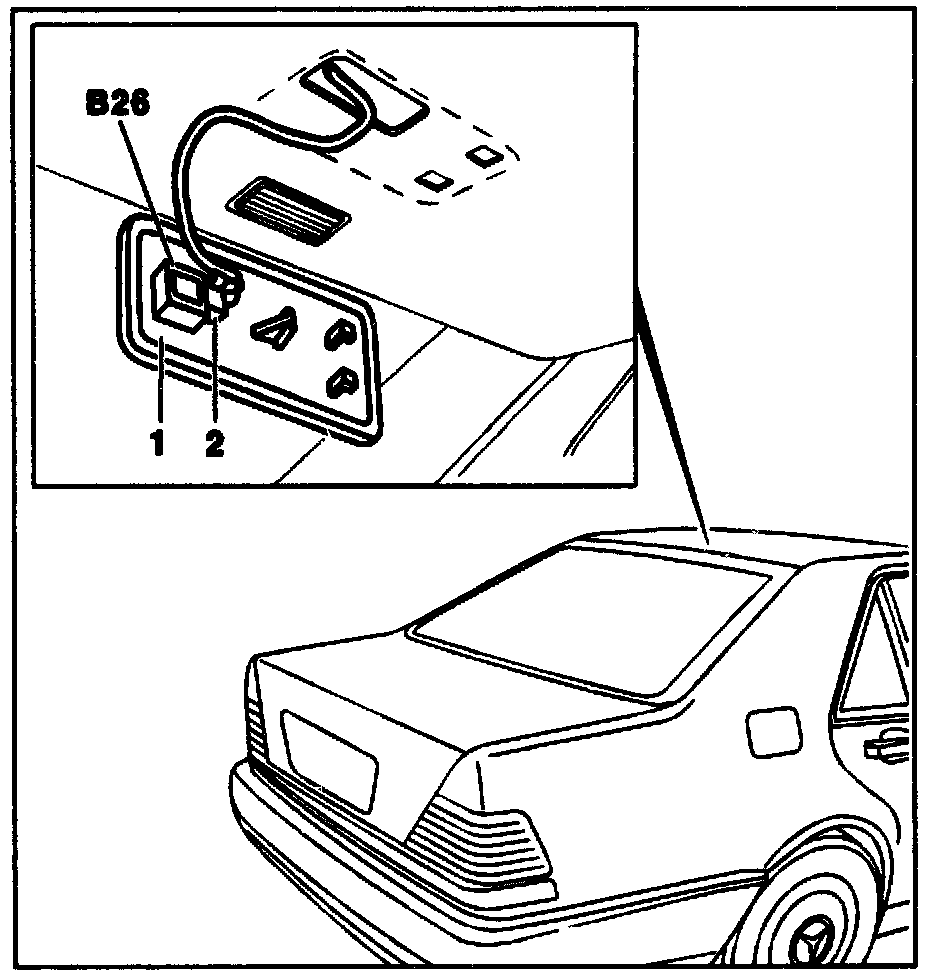

Cover (1) on headliner in rear
remove, install.

NOTE: First detach cover from headliner on right side.

Electrical connection (2)
disconnect, connect.

Electrical compass (B26)
remove, install.
