Auto Dimming Inside Rear View Mirror PE68.49-U-2000XZ
Auto Dimming Inside Rear View Mirror PE68.49-U-2000XZ

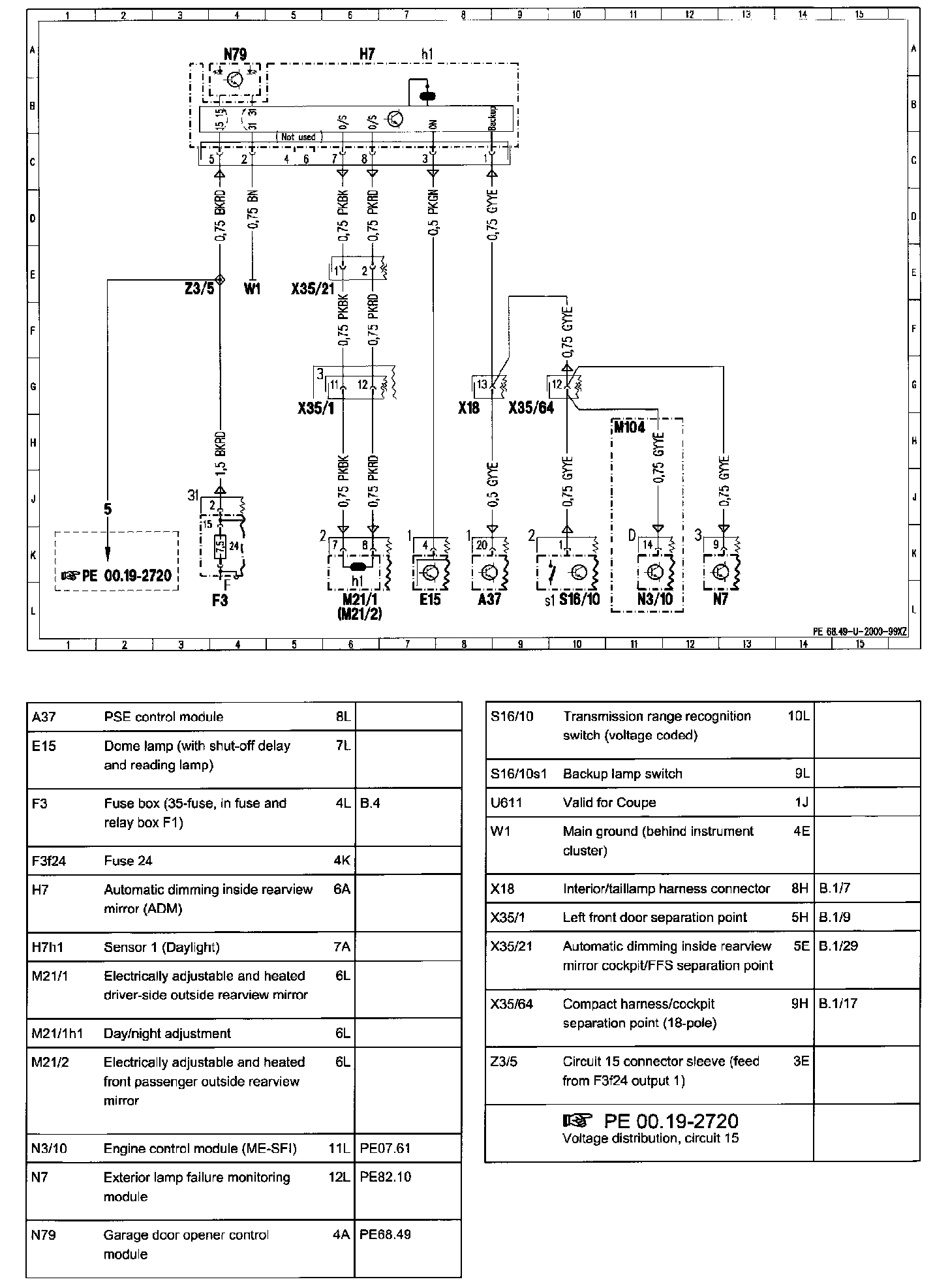

PE68.49-U-2000-XZ - Automatic Dimming Mirror (ADM) W/GDO:
