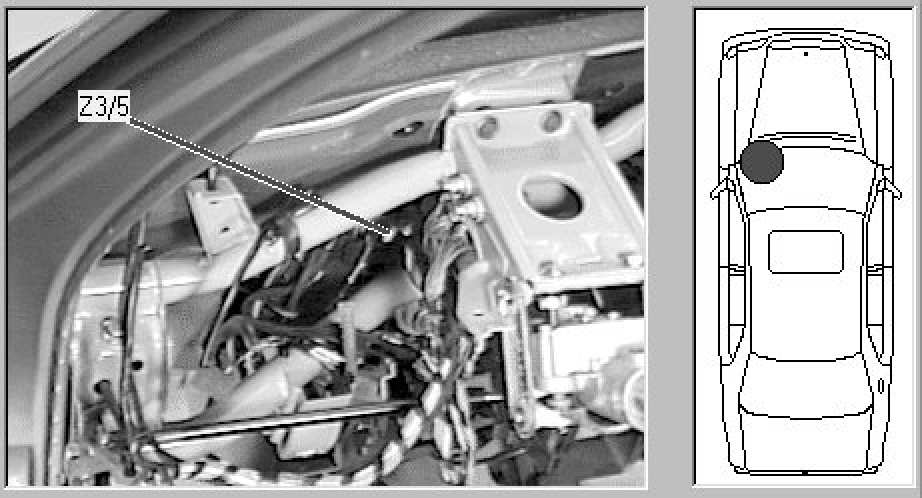

Z3/5 - Solder Splice (Cir 15)
Passenger compartment, left side of dashboard, to left of steering column brace, in thick harness.
