Mercedes Benz
>>
1999
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Conditioning (Automatic)

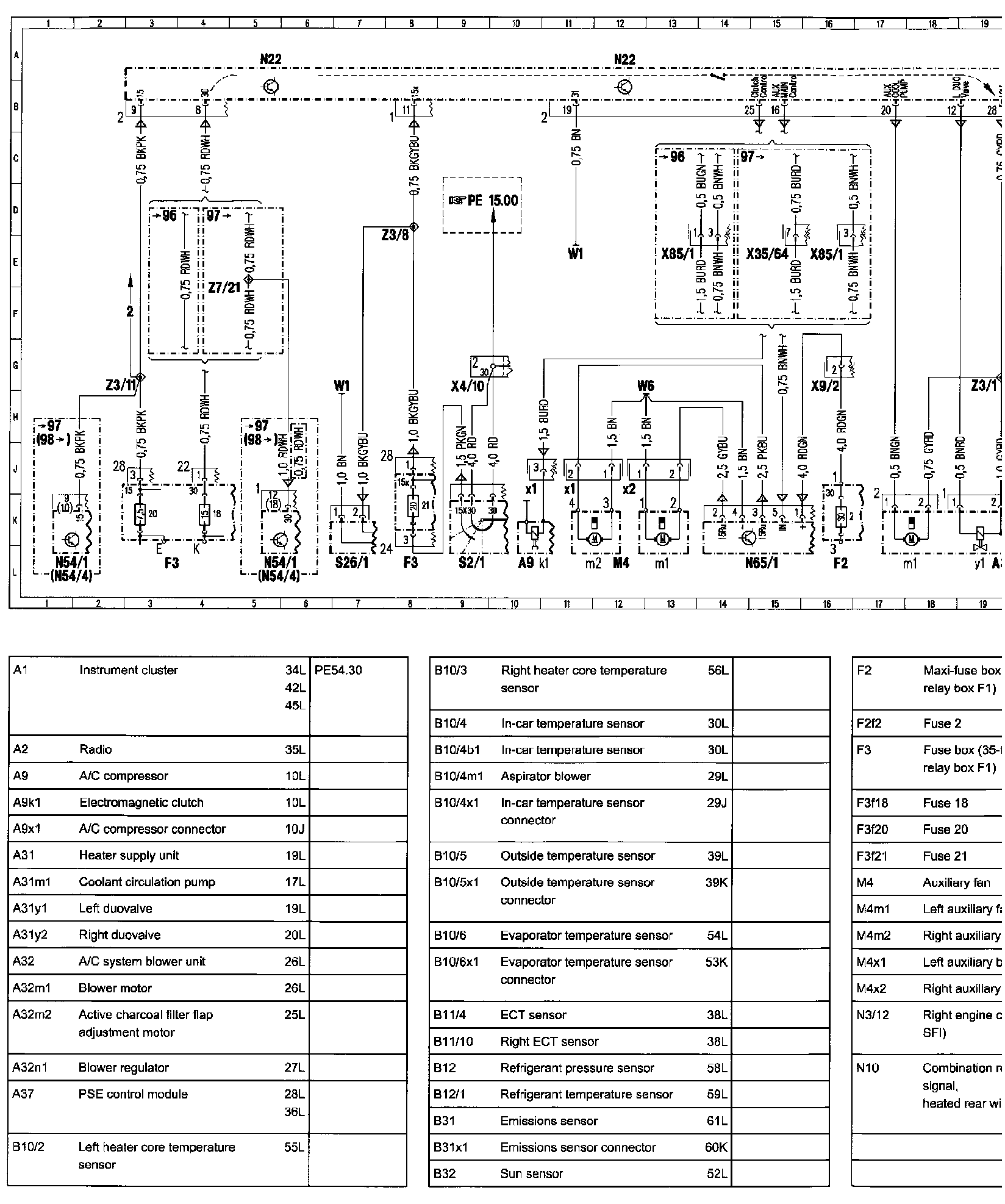

Air Conditioning (Automatic)
O�3��3� �3PE83.40-U-2000-XZ - (AAC):
