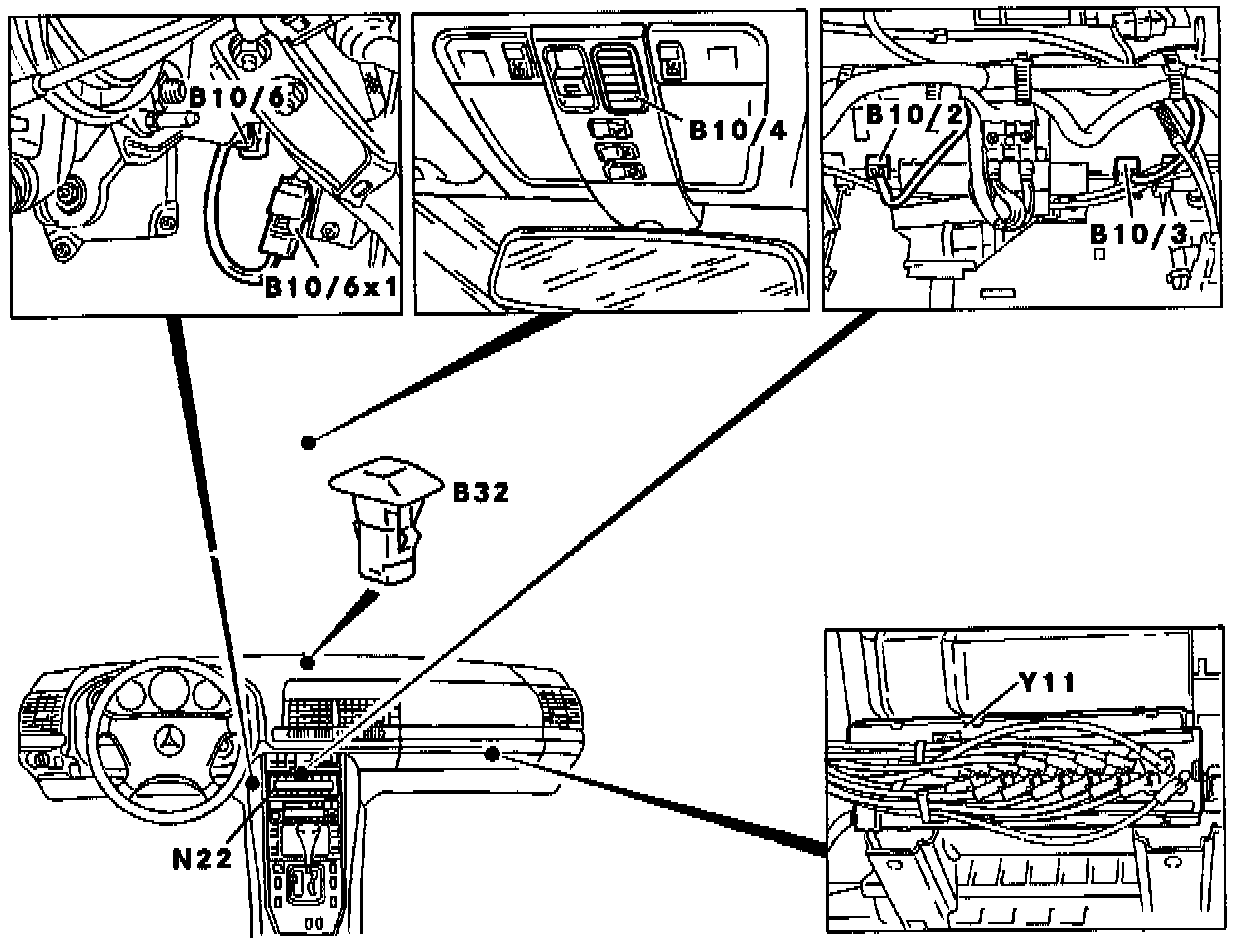

Component Locations In Passenger Compartment

Electrical Components In Passenger Compartment:
B10/2 Left heater core temperature sensor
B10/3 Right heater core temperature sensor
B10/4 In-car temperature sensor
B10/6 Evaporator temperature sensor
B10/6x1 Evaporator temperature sensor connector
B32 Sun sensor N22 A/C push-button control module
Y11 Valve block (15 connections, multiplex)
