Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Xenon Headlamps PE82.10-U-2000XJ

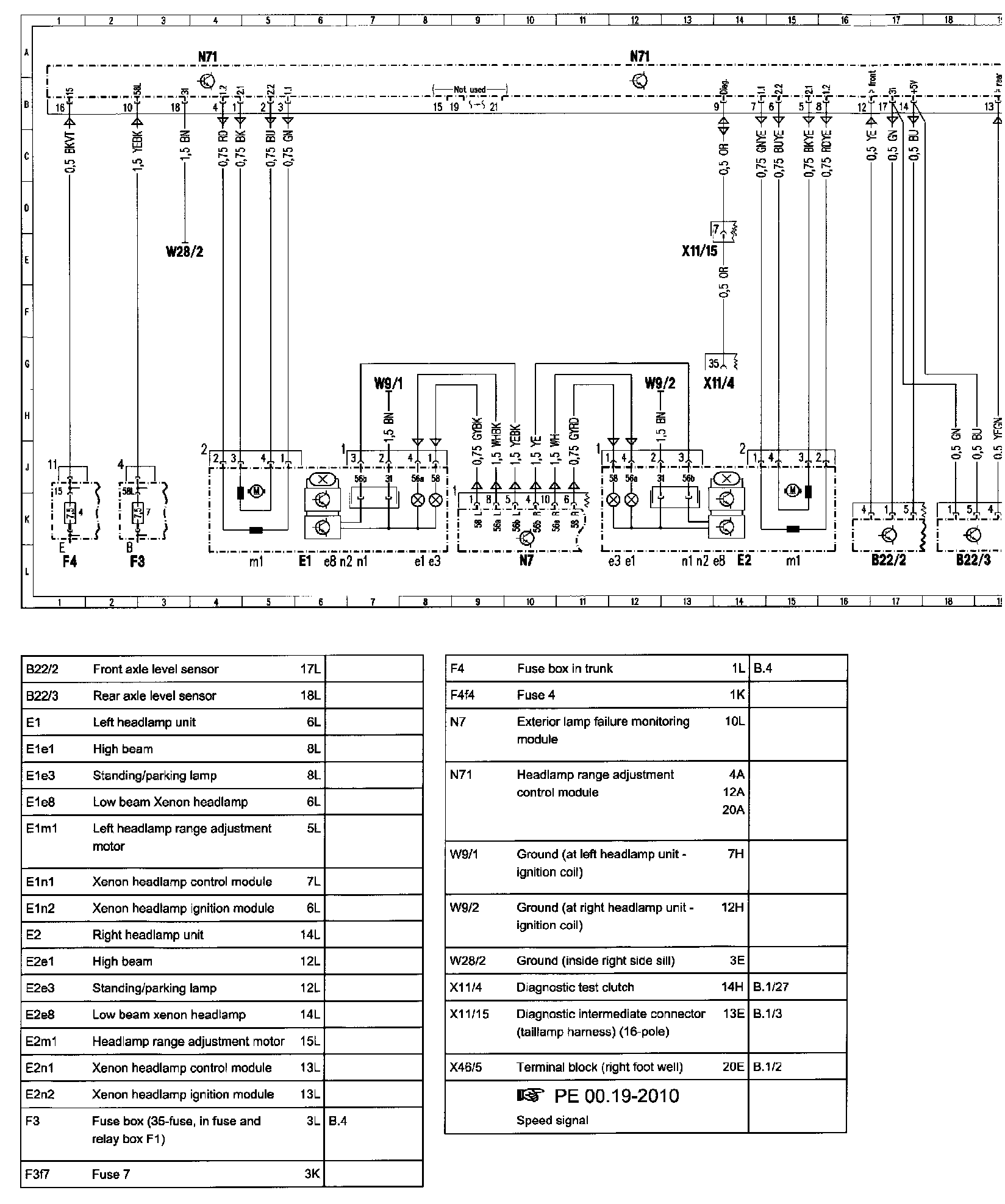

Xenon Headlamps PE82.10-U-2000XJ

.�CZPE82.10-U-2000-XJ - With Range Adjustment:
