ME-SFI Position of Components, By Chassis
ME-SFI Position of Components, By Chassis

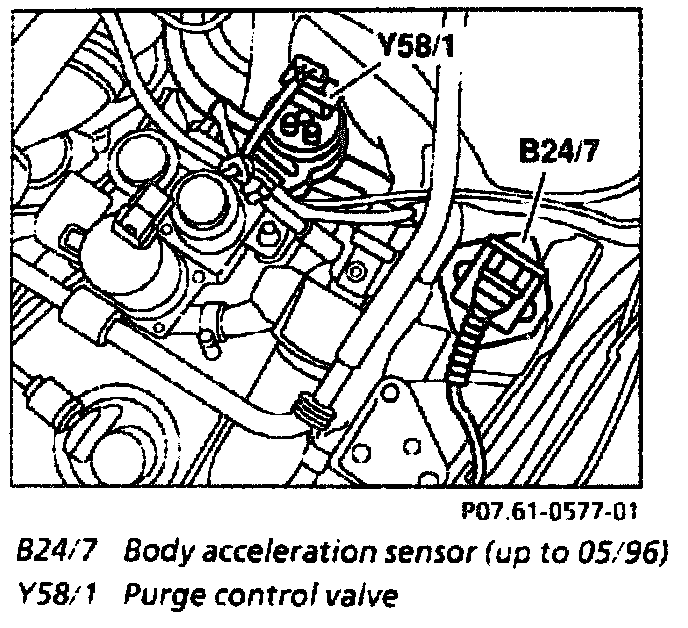

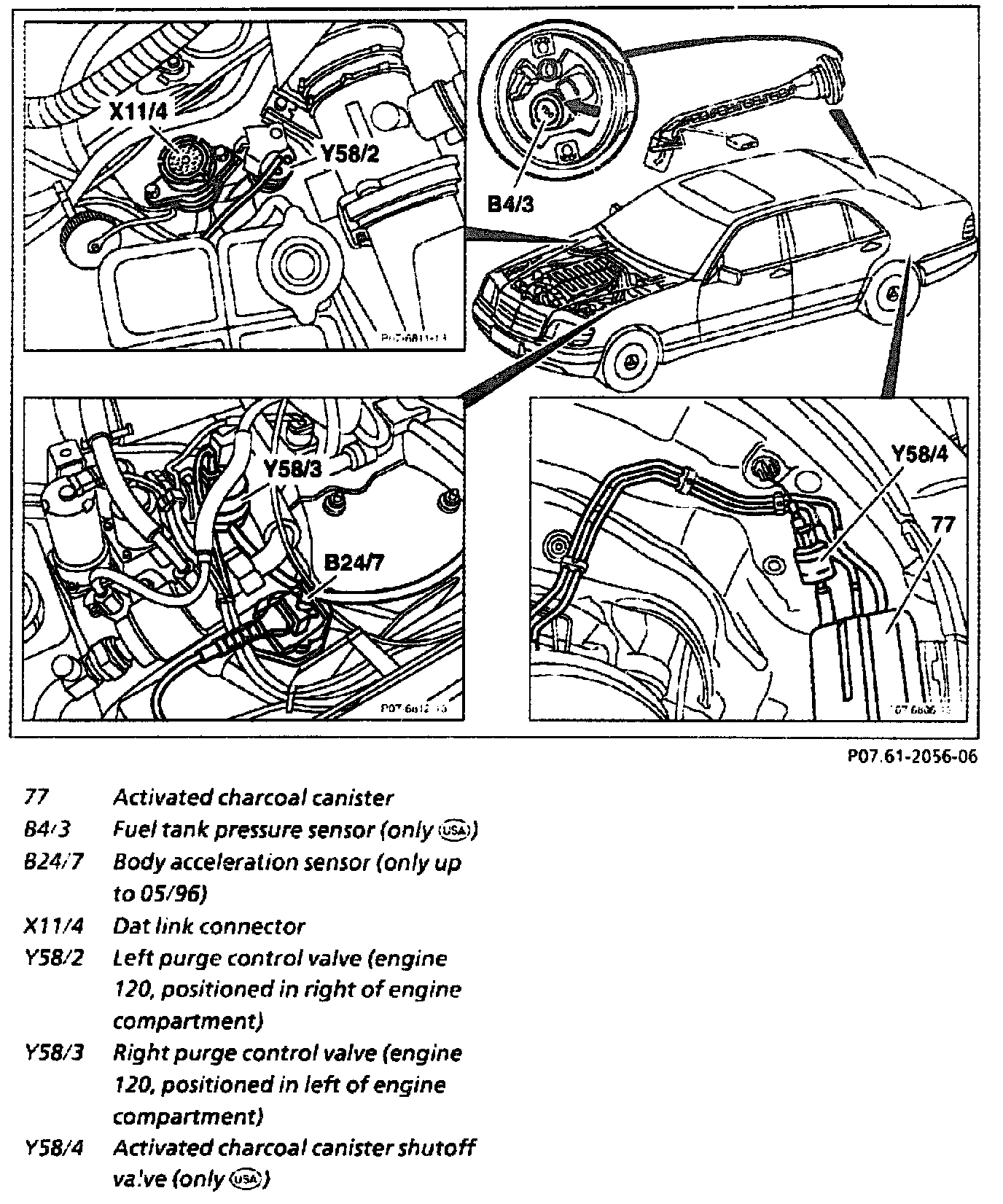

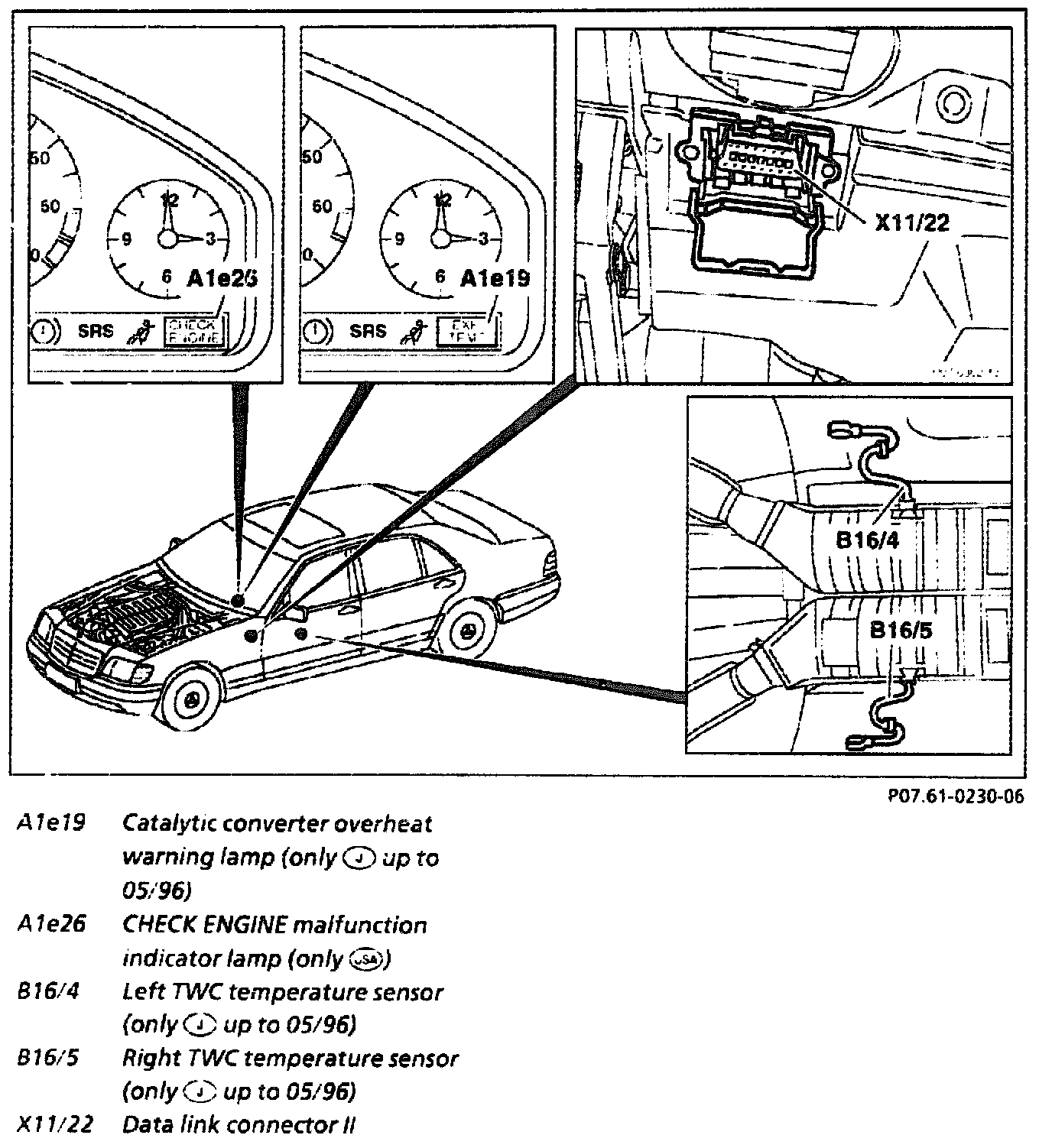

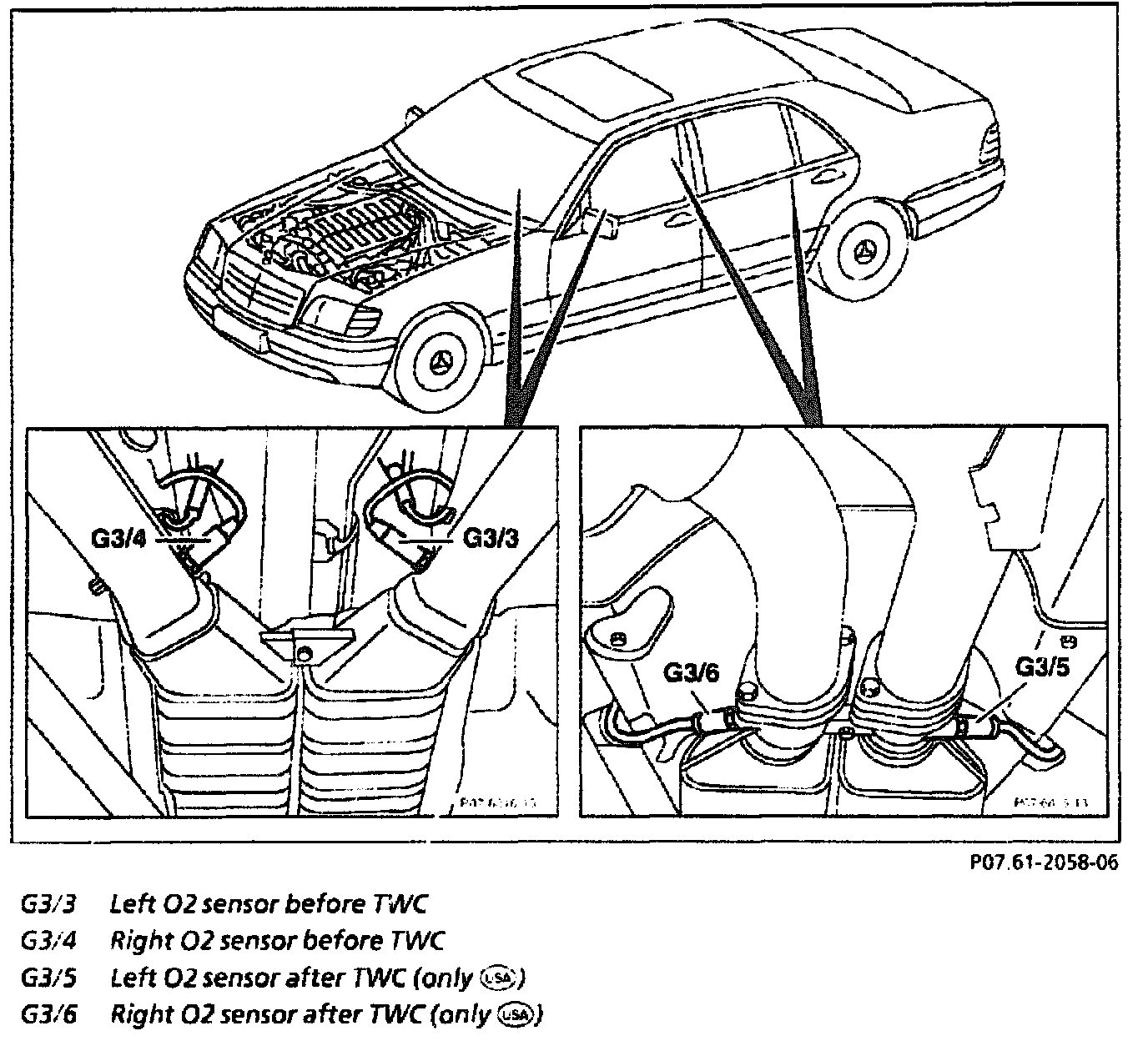

Model 140 With Engine 120:
Engine 104,119:
