Wiper Motor: Service and Repair

Preliminary work:
Wiper system removed, refer to "Replacing Wiper System". Service and Repair






Removal

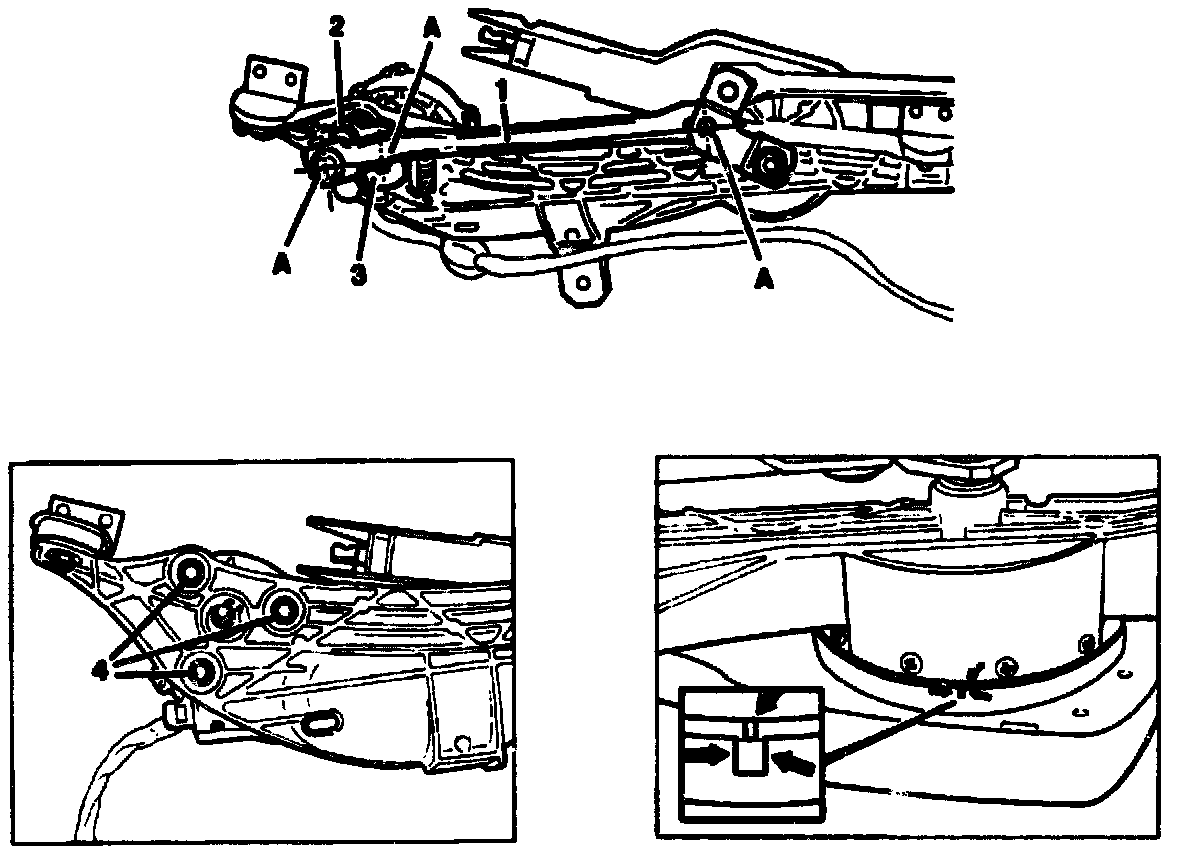

Wiper head (arrows)
mark (if no marking provided).

Linkage (1) of snow guard (2)
press off.

Nut (3, waf 24) on wiper motor shaft
unscrew.

Snow guard (2)
press off.

Wiper motor with bolts (4)
unscrew and take off.

Installation

NOTE: Wiper motor must be in park position. Connect to wiring harness if necessary and run to park position.

Wiper motor with bolts (4)
screw on, 13-17 Nm.

Snow guard (2)
fit on.

Linkage (1)
fit onto snow guard.

NOTE: Markings on wiper head (arrows) must be aligned. The 3 points "A" should form a line.

Nut (3) on wiper motor shaft
screw on, 55-60 Nm.

Linkage (1)
press onto snow guard.
