Electrical Seat Adjustment (ESA) PE91.29-U-2000XD
Electrical Seat Adjustment (ESA) PE91.29-U-2000XD

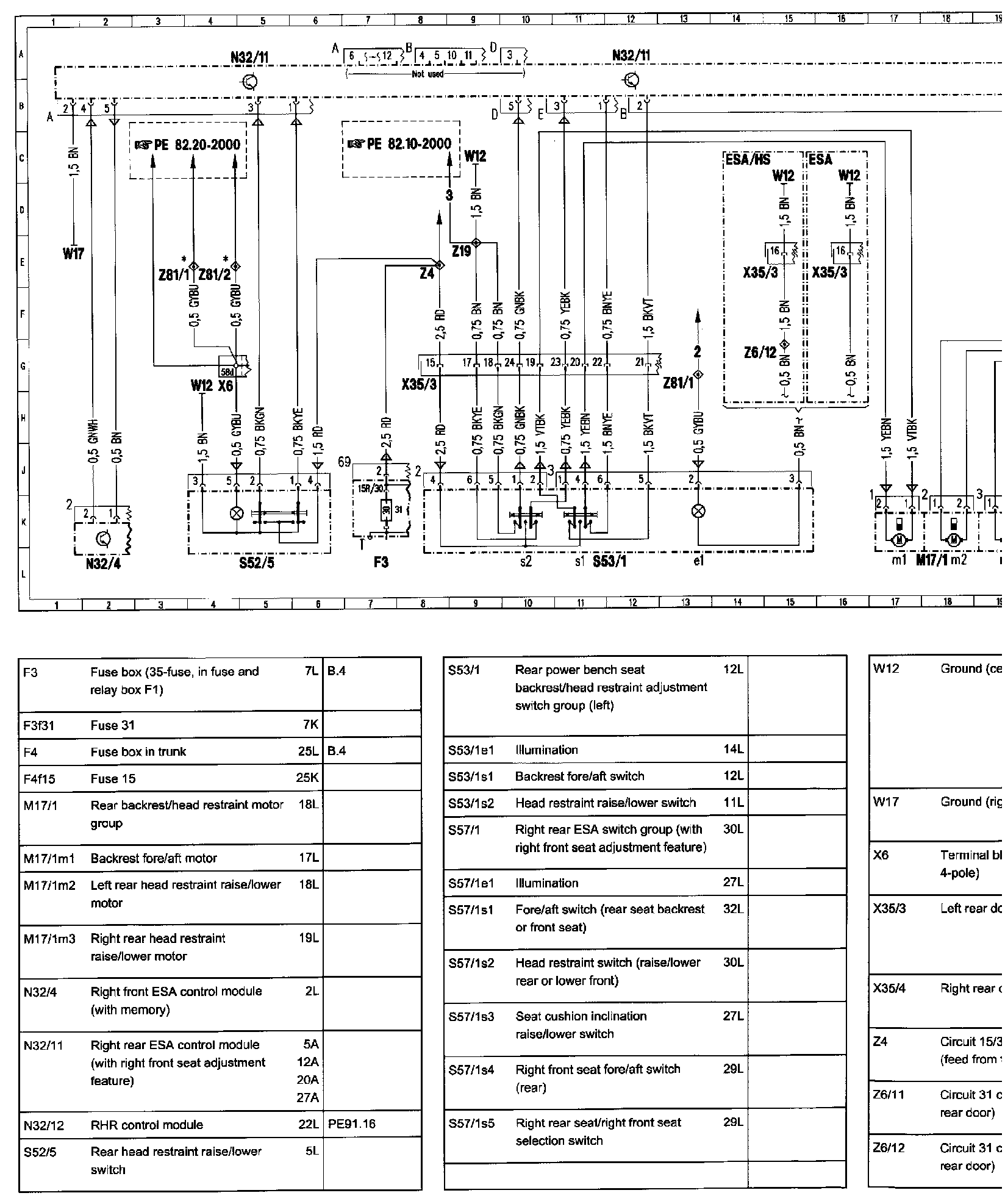

�J�V-��VPE91.29-U-2000-XD - Rear Power Seats (Bench Seat):
