Air Duct: Locations

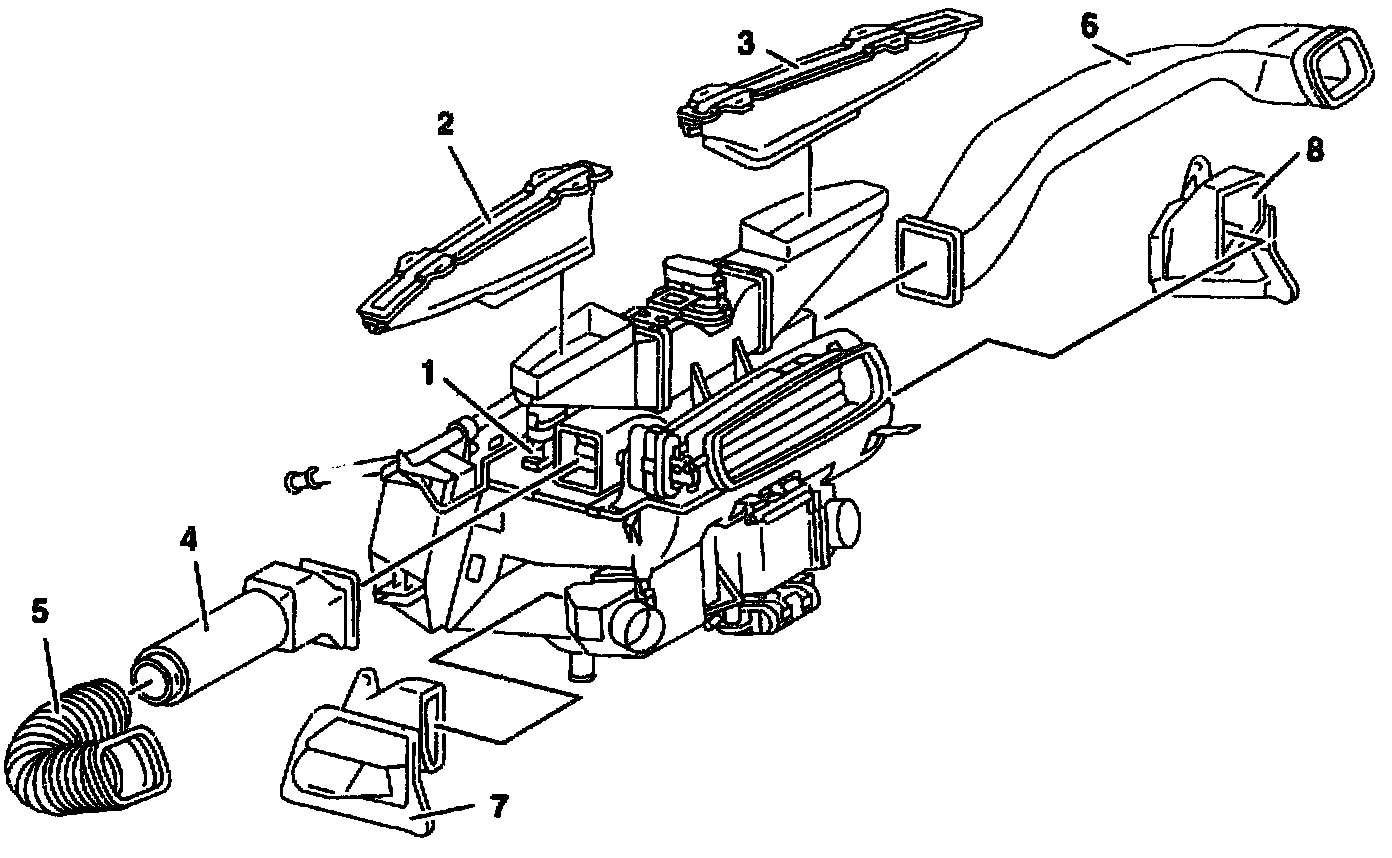

The air ducts for the defroster nozzles (2 and 3) are located at the top of the automatic A/C housing (1) and are integrated into the instrument panel.
The air ducts for left side nozzle (4 and 5) and right side nozzle (6) are located on the left and right sides of the automatic A/C housing (1) below the instrument panel.
The air ducts for the front footwell air outlet (7 and 8) are located at the bottom left and right sides on the automatic A/C housing (1).
