Replacing Heater/Ventilation Dust Filter

Removal and Installation:

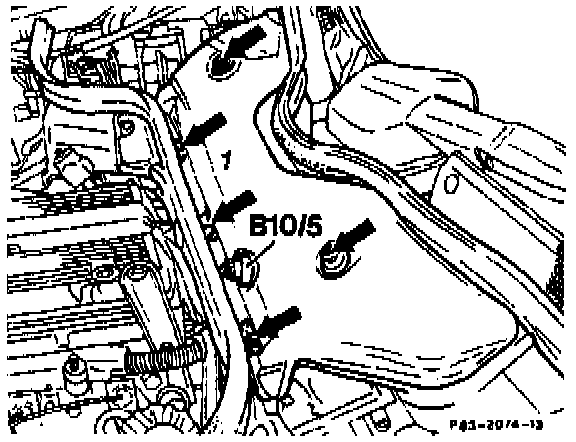

1. Pull out lip seals (arrows).



2. Unscrew both screws and unclip 3 clips (arrows).
3. Pull out temperature sensor B10/5.
4. Remove cover (1) and filter box from above.
5. Clean filter housing and filter cover.

NOTE: Do not attempt to clean dust filters, they should only be replaced.




6. Insert dust filter as shown.
