B1.5 - Interior Compartment (Right)



Arrangement and assignment of the wiring and plug connectors, interior compartment (right)

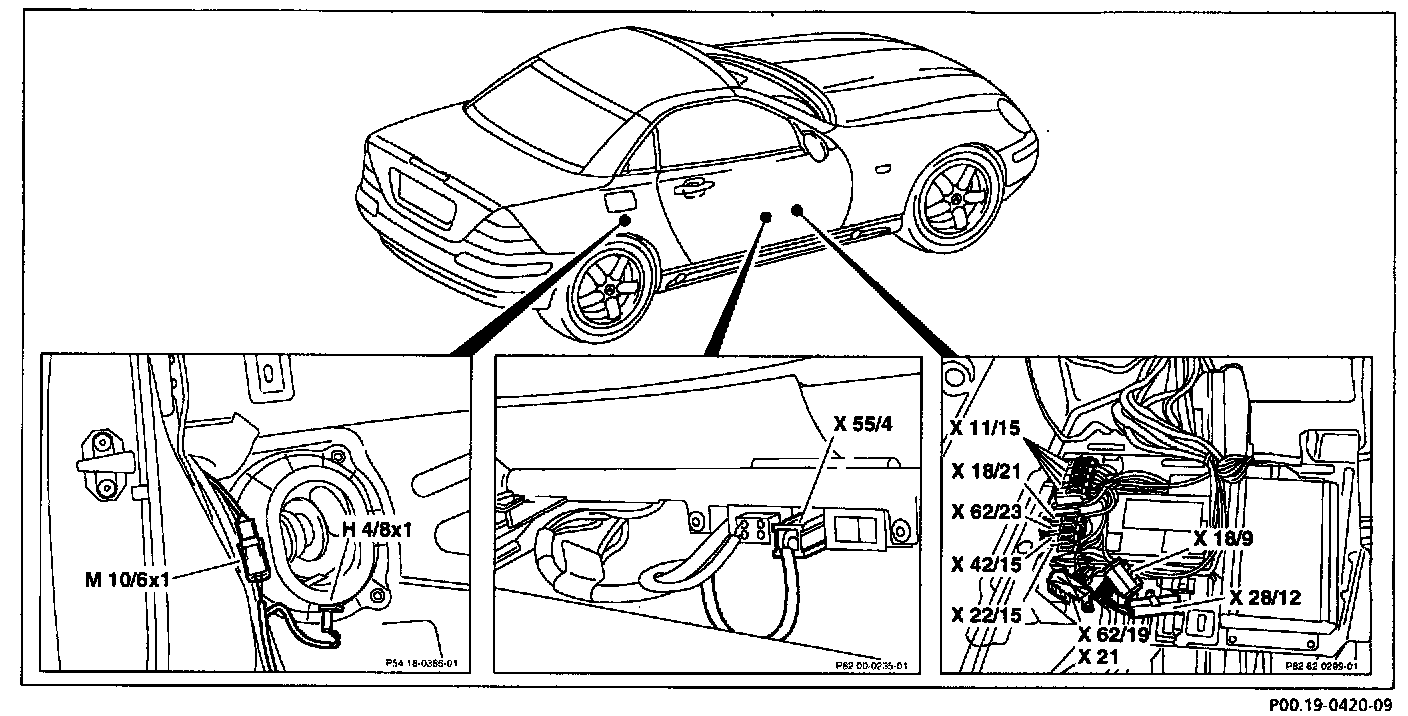

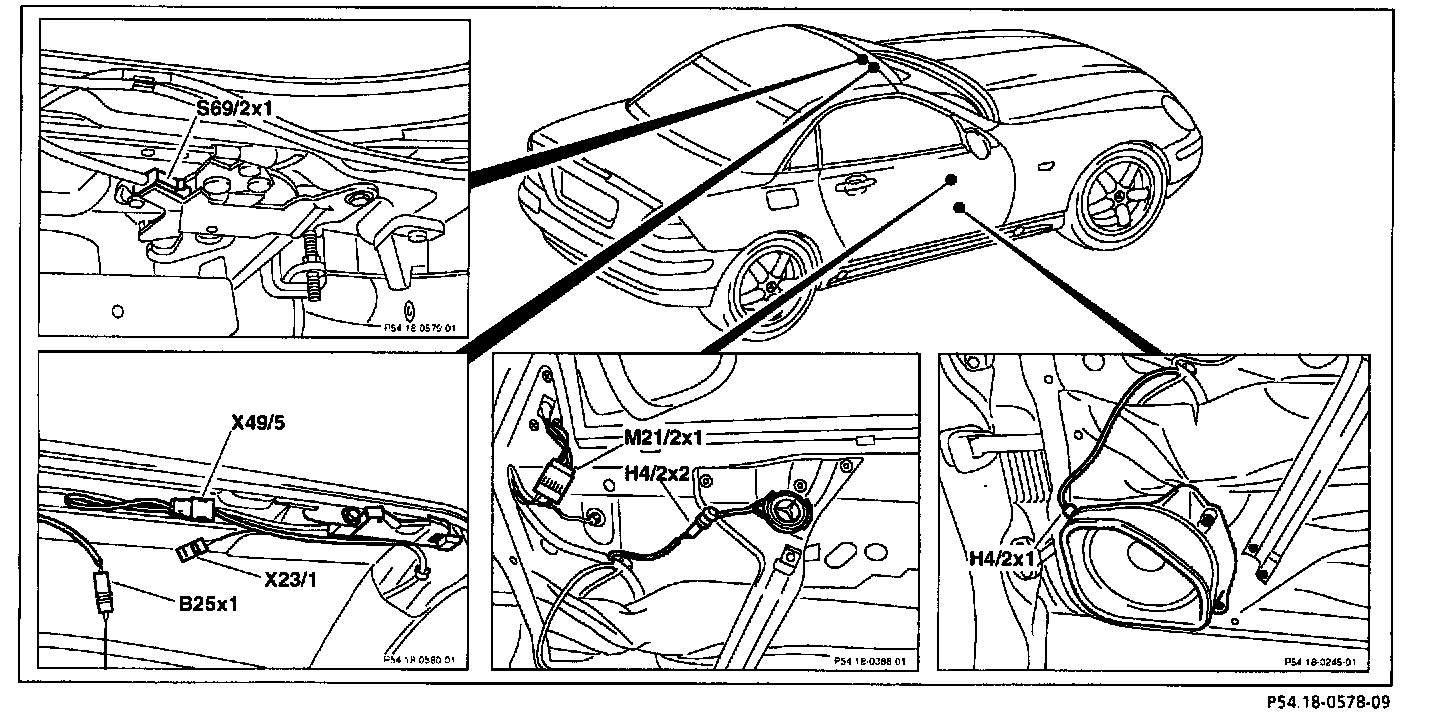

Arrangement

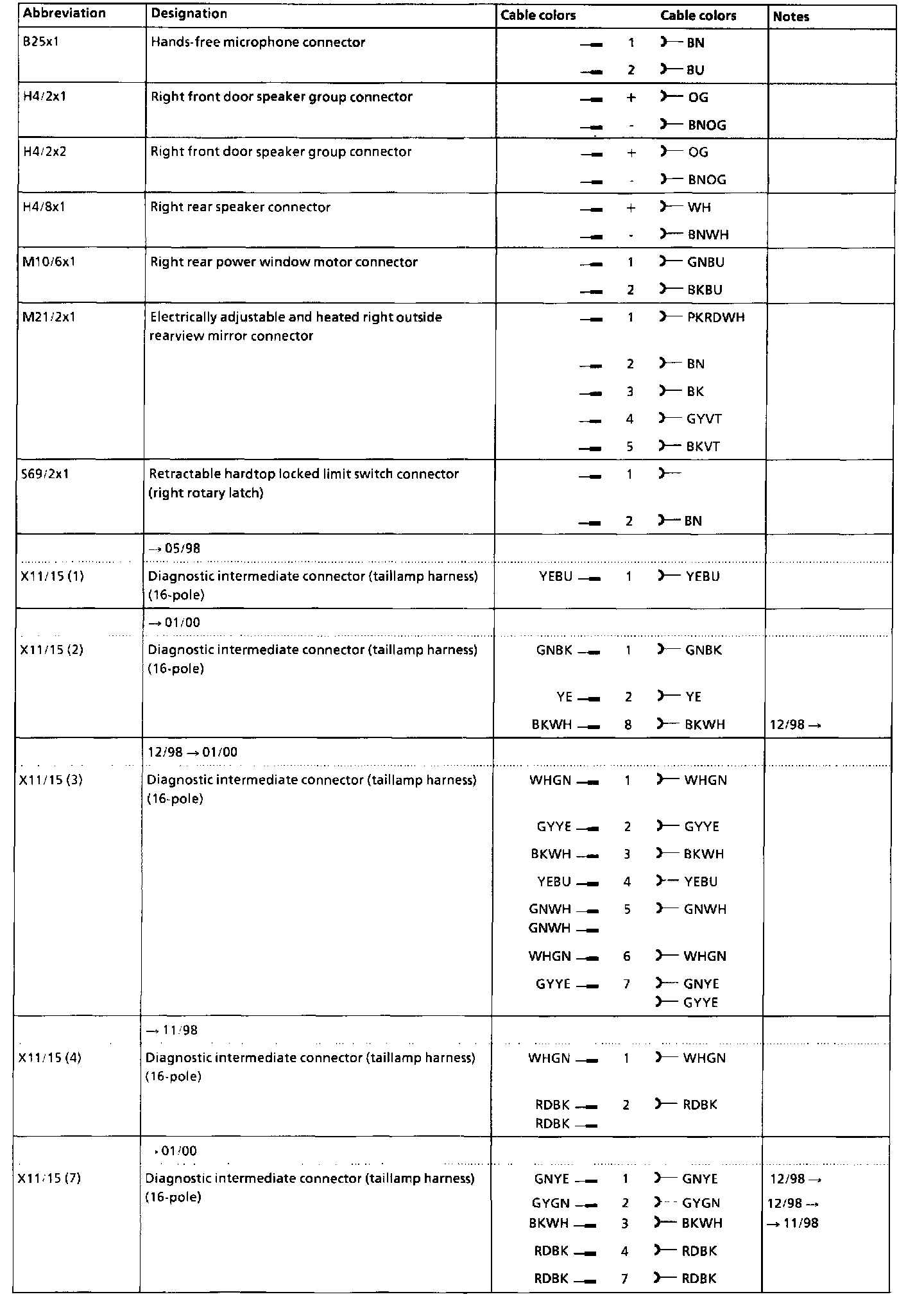

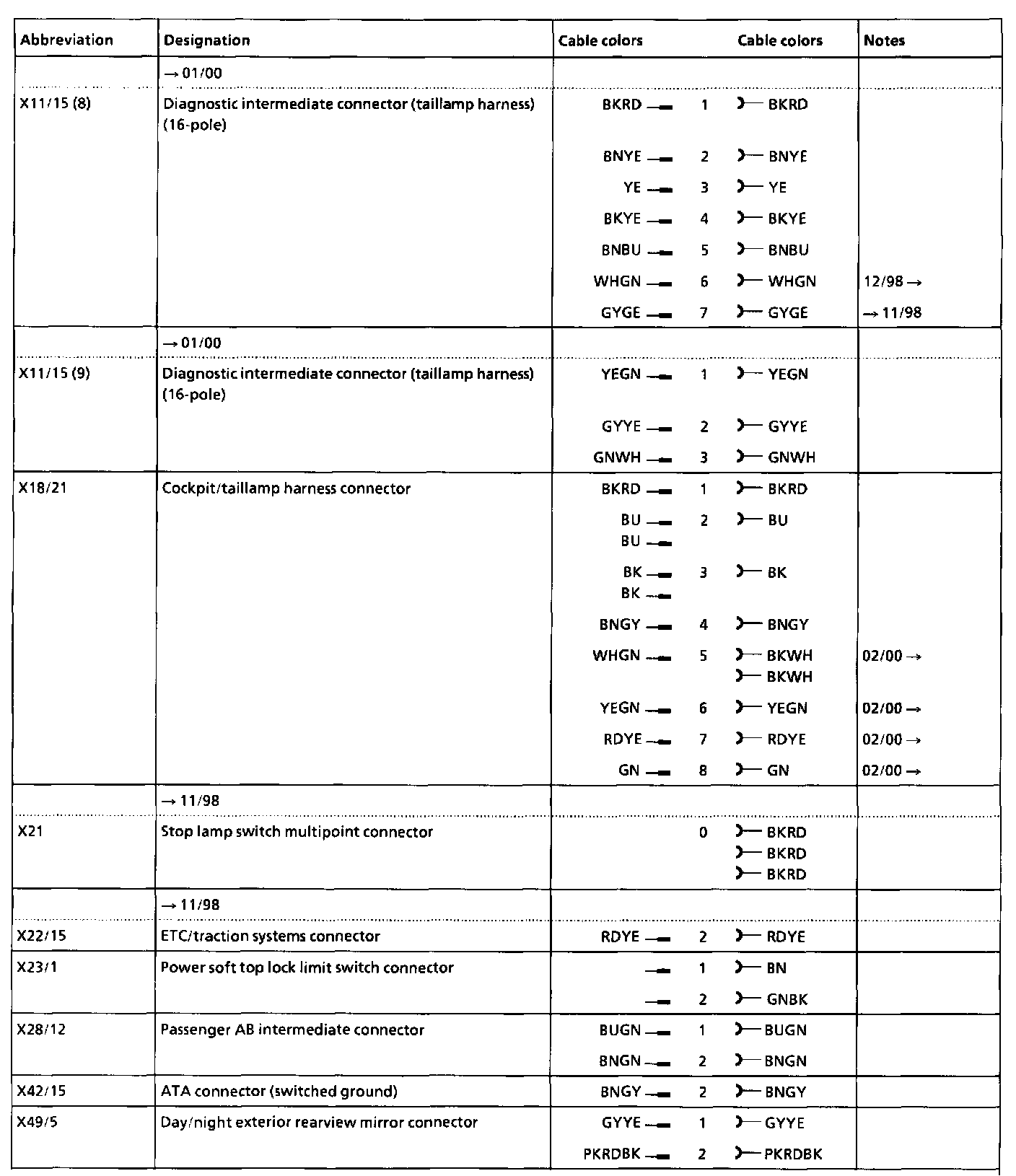

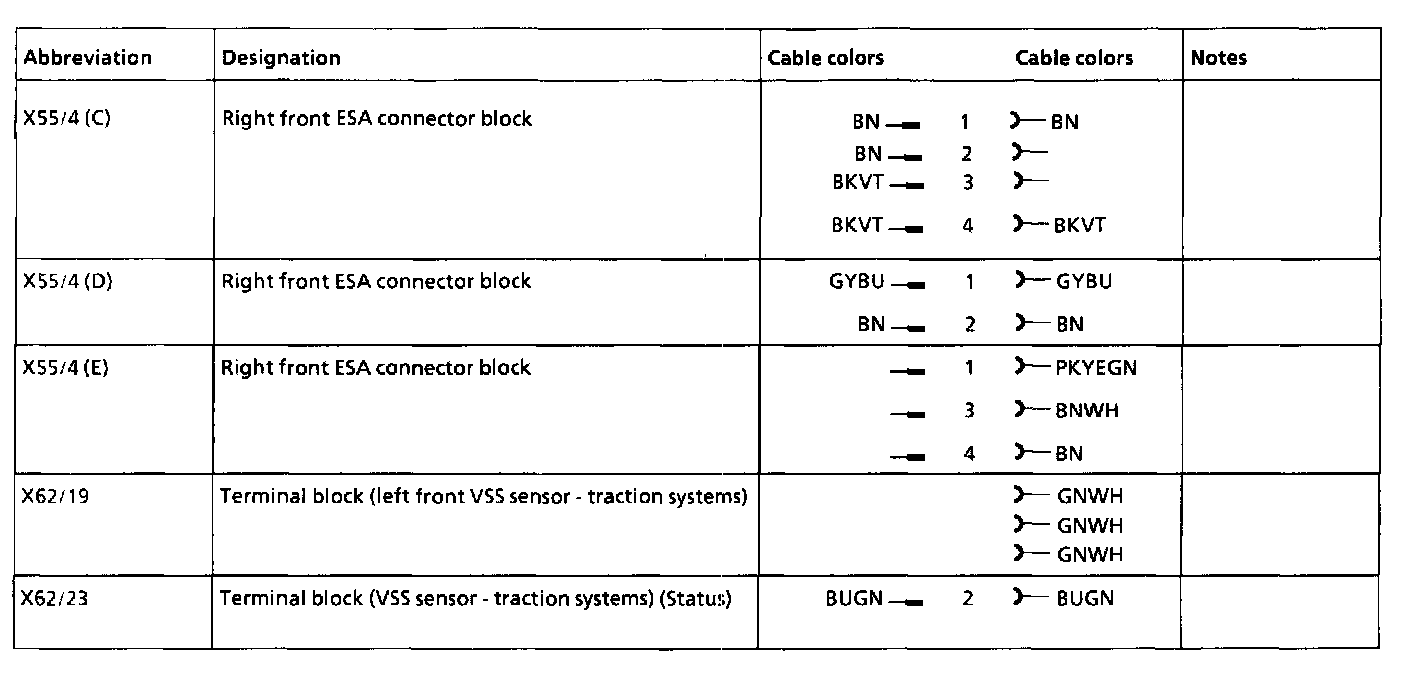

Assignment

B25x1 - X11/15 (7):





X11/15 (8) - X49/5:





X55/4 (C) - X62/23:
