B1.1 - Engine Compartment (Left)
B1.1 - Engine Compartment (Left)
Arrangement and assignment of the wiring and plug connectors, engine compartment (left)

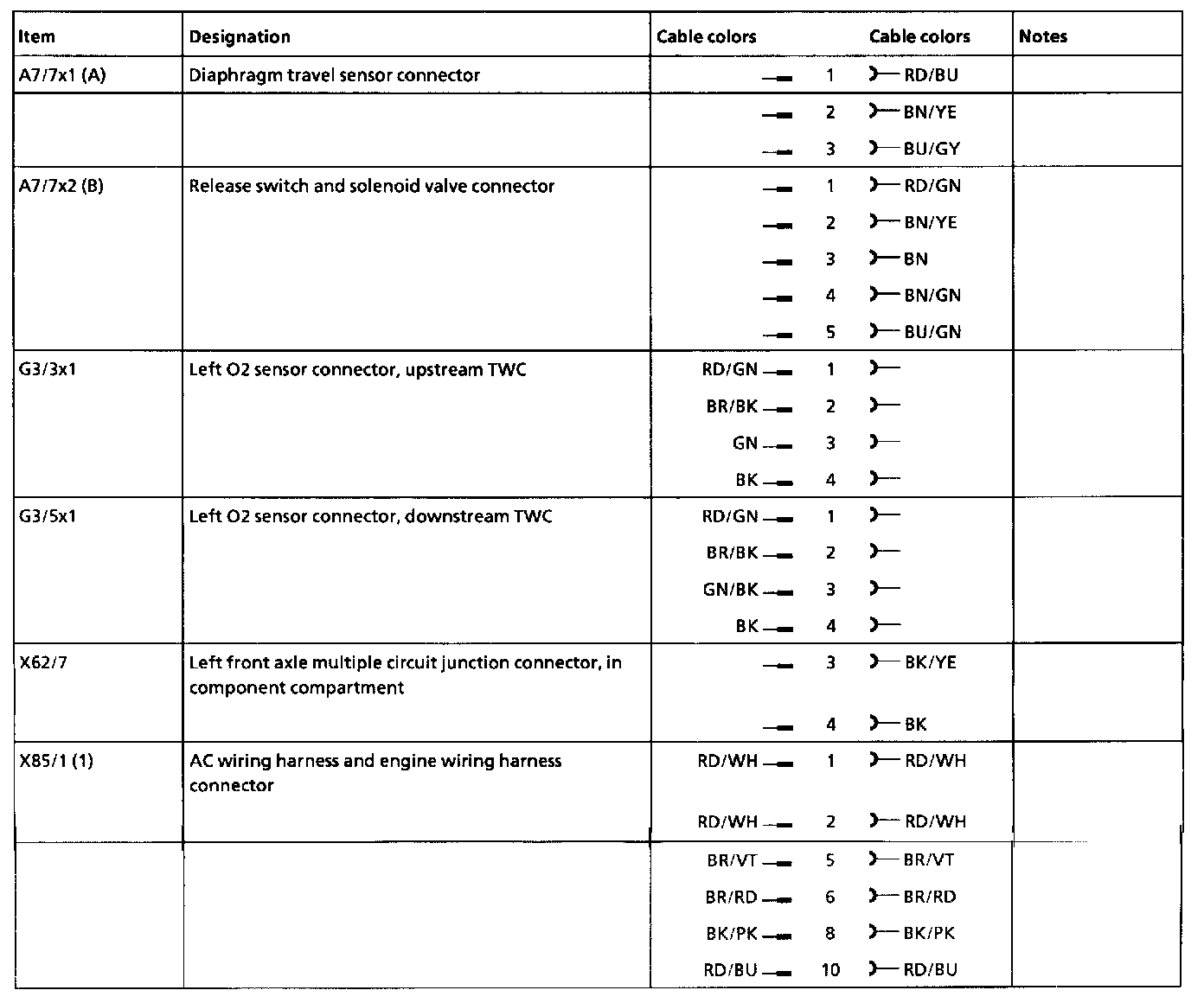

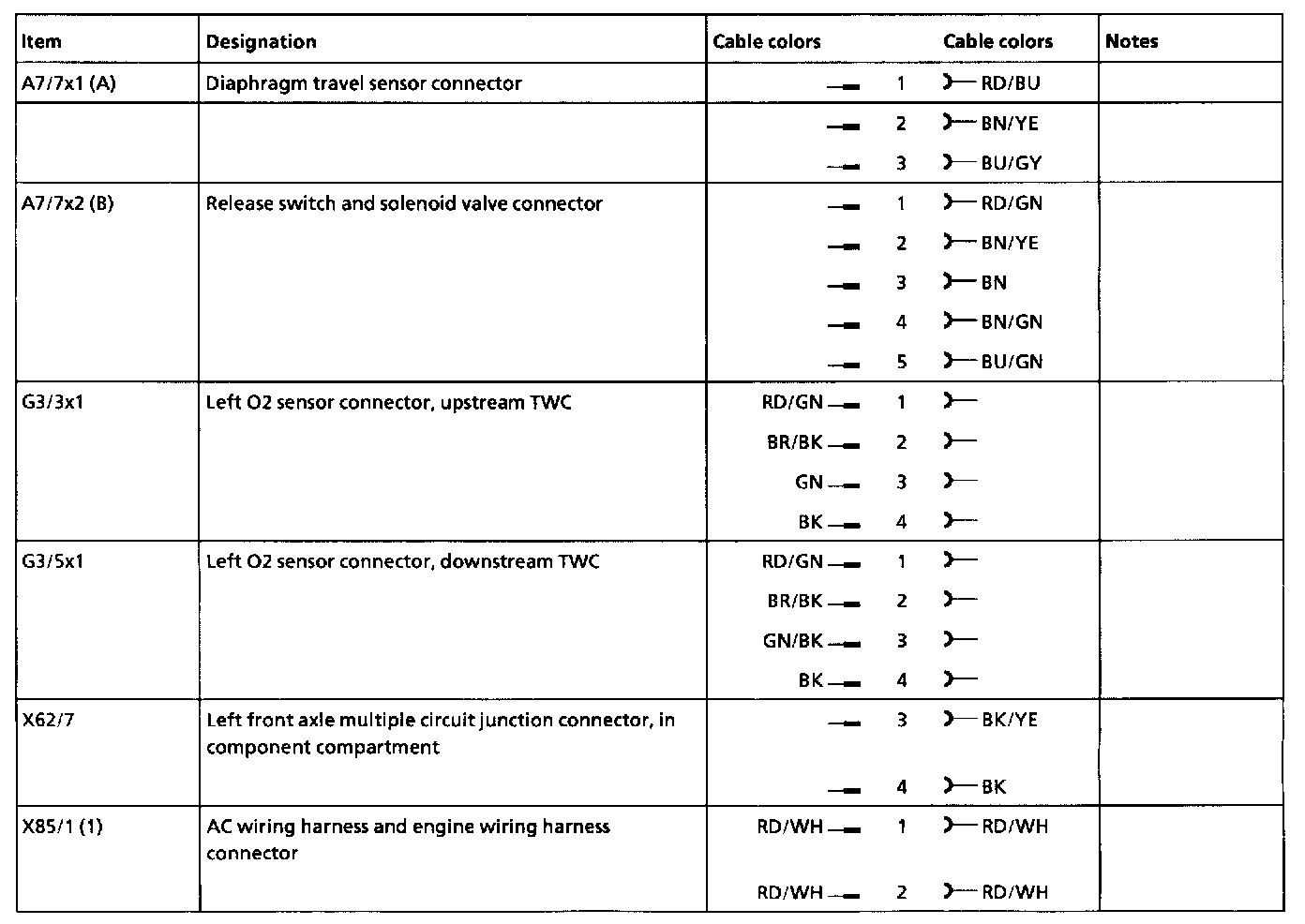

Component ID And Designation:
